In industrial automation, power distribution, building automation, and mechanical equipment control systems, in addition to power cables that transmit electrical energy, there is another indispensable type of cable: KVV control cable. Many engineers and procurement professionals often struggle to distinguish between power cables and control cables, and are unclear about the specific applications and core advantages of KVV cables.
This article provides a comprehensive overview of KVV PVC-insulated and PVC-sheathed control cables, covering their definition and structure, product advantages, applicable scenarios, selection tips, and installation considerations, to help readers fully understand this essential cable for industrial engineering.
I. What Is a KVV Cable? A Detailed Explanation of the Basic Definition

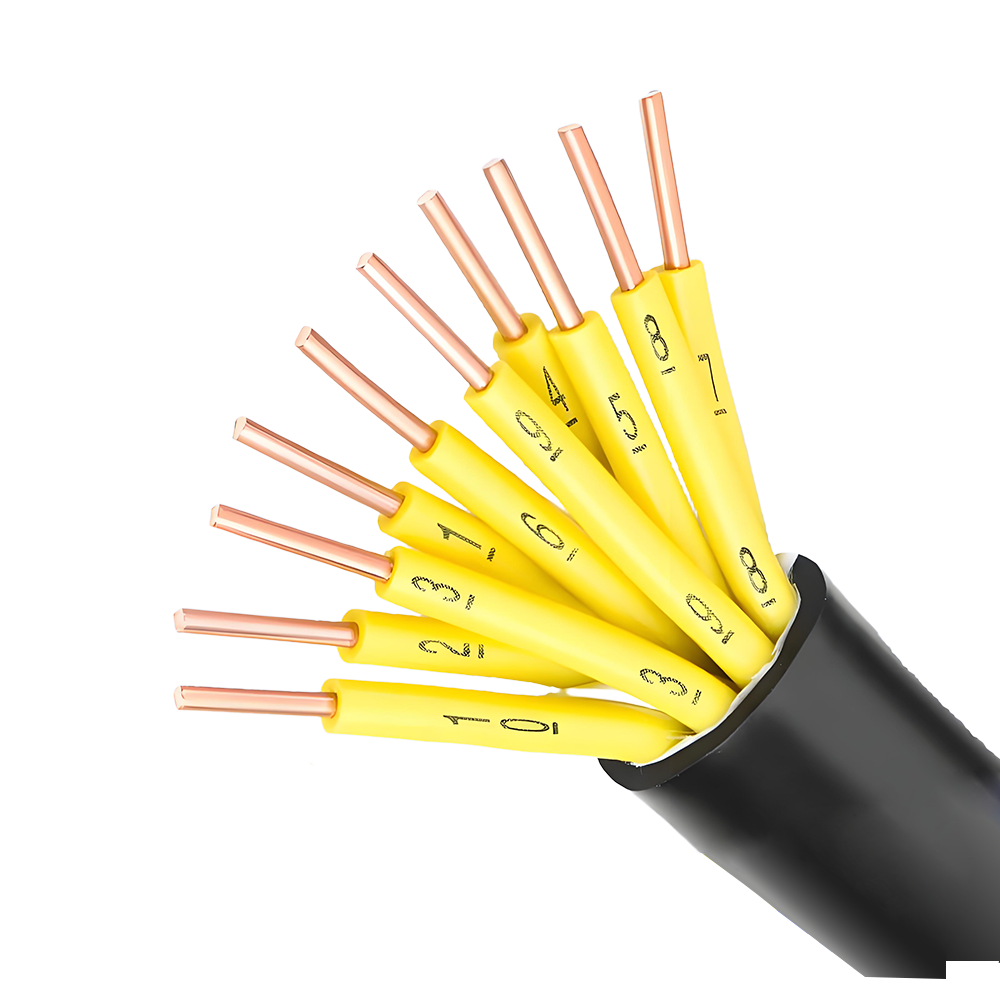

KVV cable is a copper-core, PVC-insulated, PVC-sheathed control cable. It falls under the category of low-voltage, low-current control cables and is the most widely used and versatile control cable model in the industrial sector.
We can quickly understand its properties through the model letters: K stands for control cable, V stands for PVC (polyvinyl chloride) insulation, and the second V stands for PVC outer sheath. Simply put, KVV is a specialized control cable featuring a pure copper core, dual-layer PVC protection, and a multi-conductor configuration.
Unlike YJV power cables, which are designed for high-power electricity transmission, the core function of KVV cable is to transmit control signals, interlock signals, and low-voltage commands. It is primarily used in scenarios such as equipment start/stop, instrument signal transmission, circuit control, and remote interlocking, serving as the “nervous system” of industrial equipment.

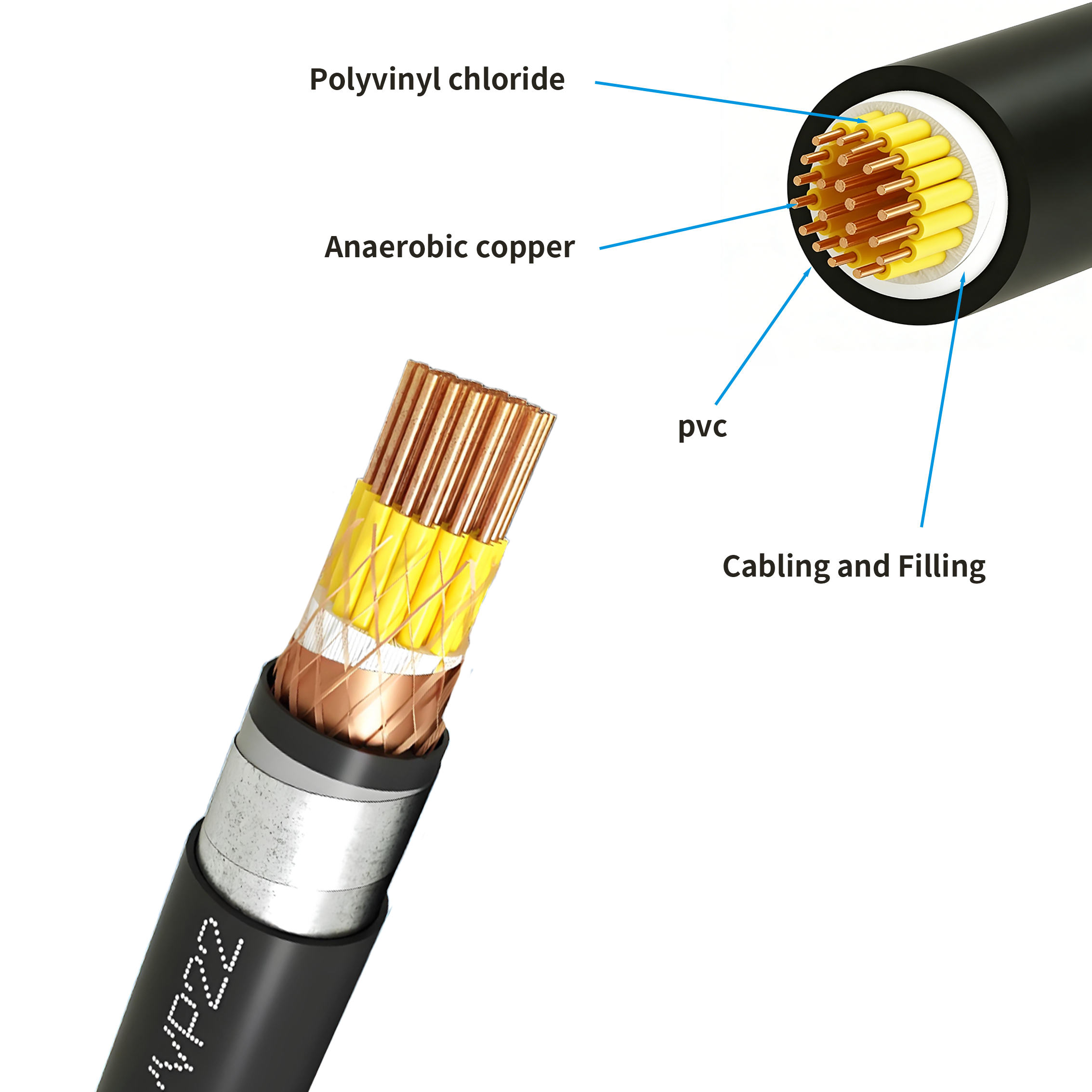

II. Internal Structure of KVV Cable (From Inner to Outer)
- High-Purity Copper Conductor
Utilizing high-purity oxygen-free copper stranded conductors compliant with national standards, these cables offer excellent conductivity, stable resistance, and minimal signal transmission loss. The multi-strand twisted structure provides superior flexibility, making it resistant to core breakage. Even with long-term, frequent micro-movements, the circuit remains unobstructed, eliminating issues such as signal interruption and poor contact. - PVC Insulation Layer
Each wire core is individually wrapped in a high-density PVC insulation layer, which offers high insulation strength and excellent voltage resistance. This effectively isolates individual cores, preventing leakage, crosstalk, and signal interference between cores, ensuring the independent and precise transmission of each control signal.
- Flame-Retardant Filler Layer
The gaps between the conductors are filled with eco-friendly, flame-retardant material, giving the cable a full, round, and compact structure. This effectively enhances its resistance to compression and bending, preventing damage to the internal conductors caused by cable deformation under pressure. - Isolation Wrapping Layer
The cable is fully wrapped with flame-retardant tape to secure the internal conductor structure, preventing conductor displacement and friction damage, and further enhancing the cable’s overall stability and voltage resistance safety. - PVC Outer Sheath
The outer layer consists of a high-strength, flame-retardant PVC sheath that is abrasion-resistant, tear-resistant, corrosion-resistant, and age-resistant. It withstands workshop dust, light oil contamination, and humid environments, making it suitable for complex indoor industrial conditions.
Translated with DeepL.com (free version)
III. Key Advantages of KVV Cables
- Stable Signal Transmission and Strong Interference Resistance
KVV cables feature a multi-core, individually insulated design that effectively reduces signal crosstalk and noise interference. This ensures precise and uninterrupted signal transmission, allowing for stable integration with the control logic of automated equipment, instruments, and distribution panels, thereby preventing faults such as equipment malfunctions and signal failures. - Dual-Layer Protection, High Safety Rating
The dual-layer PVC protection—comprising insulation and a protective jacket—offers excellent insulation voltage resistance, flame-retardant and self-extinguishing properties, as well as moisture resistance and protection against electrical leakage. It resists fire spread and minimizes the risk of short circuits, significantly enhancing the operational safety of industrial power distribution systems. - Superior Mechanical Properties and Exceptional Durability

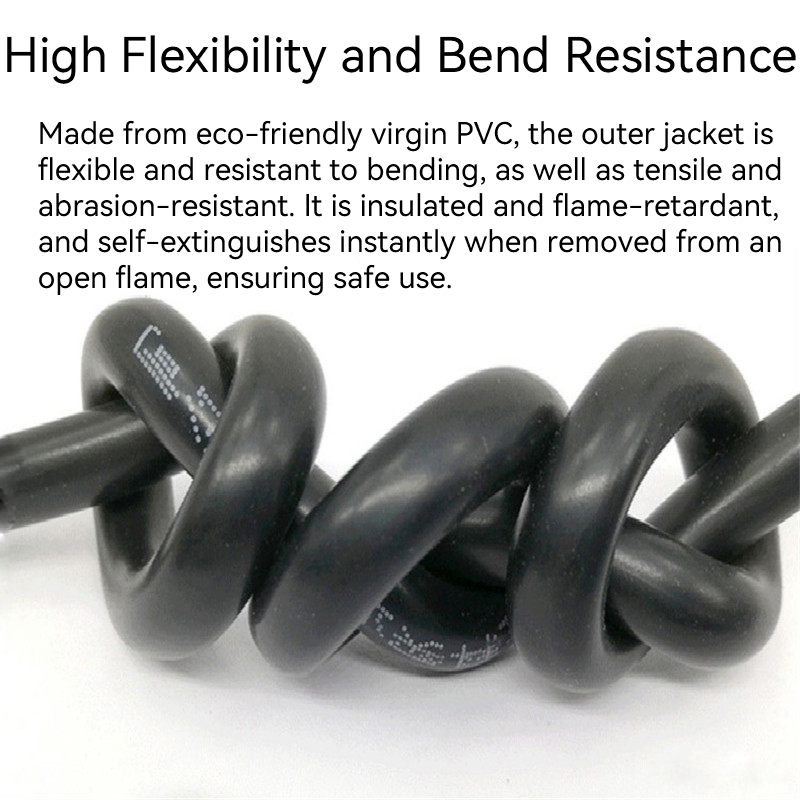

The cable features a compact and robust overall structure, offering resistance to crushing, abrasion, and bending. It is suitable for various installation methods, including cable tray routing, conduit wiring, and internal equipment wiring. Designed for long-term indoor operation, it resists aging, peeling, and cracking, ensuring a longer service life. - Wide Range of Specifications and Exceptional Versatility

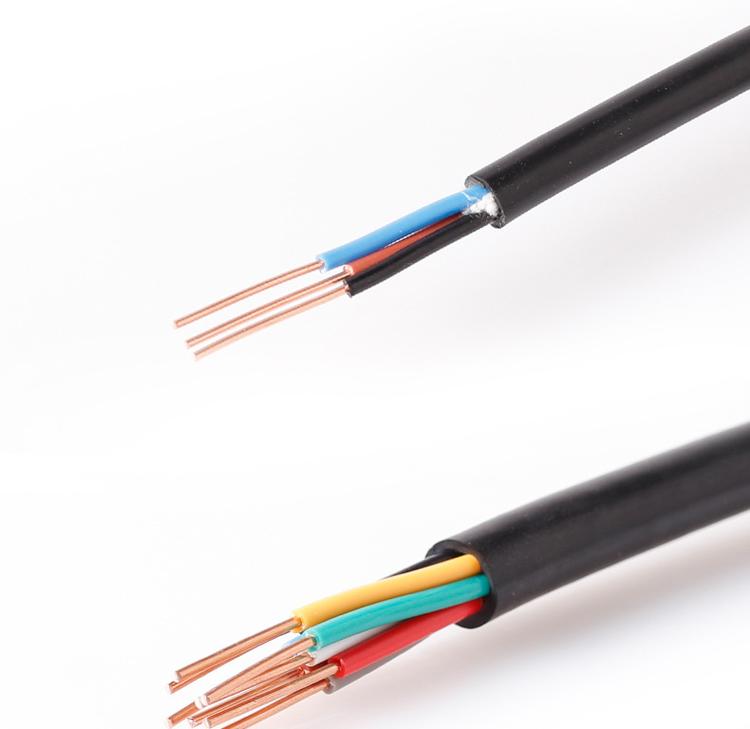

KVV cables offer a wide selection of conductor counts, ranging from 2-core, 4-core, 7-core, 10-core, to 37-core, with cross-sections covering common sizes such as 1.5mm² and 2.5mm². This fully meets the control wiring requirements for various equipment and locations. - High Cost-Effectiveness and Excellent Project Adaptability
Compared to shielded control cables, KVV cables are more cost-effective and easier to install. In standard industrial environments without strong electromagnetic interference, they are the most cost-effective and widely used control cables, earning widespread recognition from contractors and construction teams.
IV. Main Application Scenarios for KVV Cables
KVV control cables are intended solely for fixed indoor installation and are not suitable for outdoor exposure to sunlight, direct burial underground, or frequent movement of equipment. The primary application scenarios are as follows:
- Control wiring for automated equipment in industrial plants and signal connections for assembly lines;
- Secondary circuit control wiring inside high- and low-voltage switchgear and distribution panels;
- Wiring for building automation systems, fire alarm interlock control systems, and low-voltage control cabinets;
- Control circuits for machine tools, fans, pumps, and central air conditioning units;
- Connection cables for municipal infrastructure projects, workshop signal instruments, and monitoring equipment.

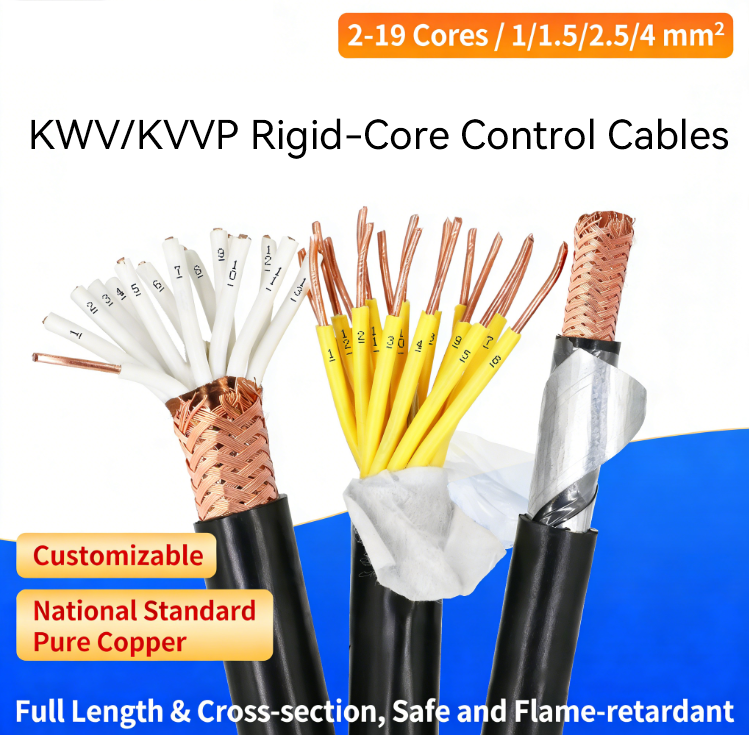

V. How to Choose Between KVV and KVVP Shielded Cables?
Many users often confuse KVV and KVVP; a simple distinction is as follows
KVV: Standard control cable without a shielding layer. Suitable for ordinary workshops, environments without high-frequency equipment, and simple electromagnetic conditions. Offers high cost-effectiveness.

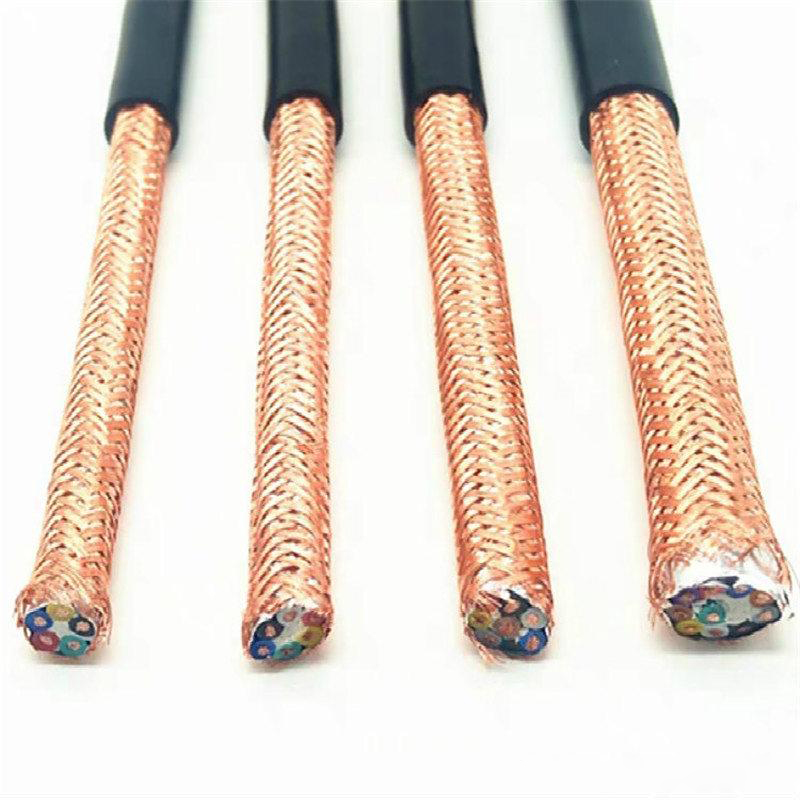

KVVP: Features a copper braided shielding layer, providing strong resistance to electromagnetic interference. Suitable for environments with variable frequency drives, high-frequency equipment, precision instruments, and workshops with strong magnetic fields to prevent signal distortion.
VI. Precautions for Installation and Selection
When purchasing KVV cables, be sure to select high-quality products that meet national standards for full cross-sectional area and length, with bright copper cores free of impurities, flexible sheaths, and no pungent odors. Substandard cables are prone to issues such as undersized conductors, thin insulation, unstable signals, and premature aging, which can easily lead to equipment failures.

During installation, cables must be securely fastened to prevent violent pulling or excessive bending. Avoid high-temperature heat sources whenever possible, and ensure cables are neatly and firmly secured in cable trays to guarantee long-term, stable operation.
Summary


As the core foundation for industrial control circuits, KVV control cables have become an indispensable cabling solution in industrial automation, power distribution, and building engineering due to their stable signal transmission, robust protective performance, exceptional cost-effectiveness, and wide versatility. Selecting high-quality KVV cables that meet national standards is key to ensuring stable equipment operation, reducing project risks, and enhancing project quality.
