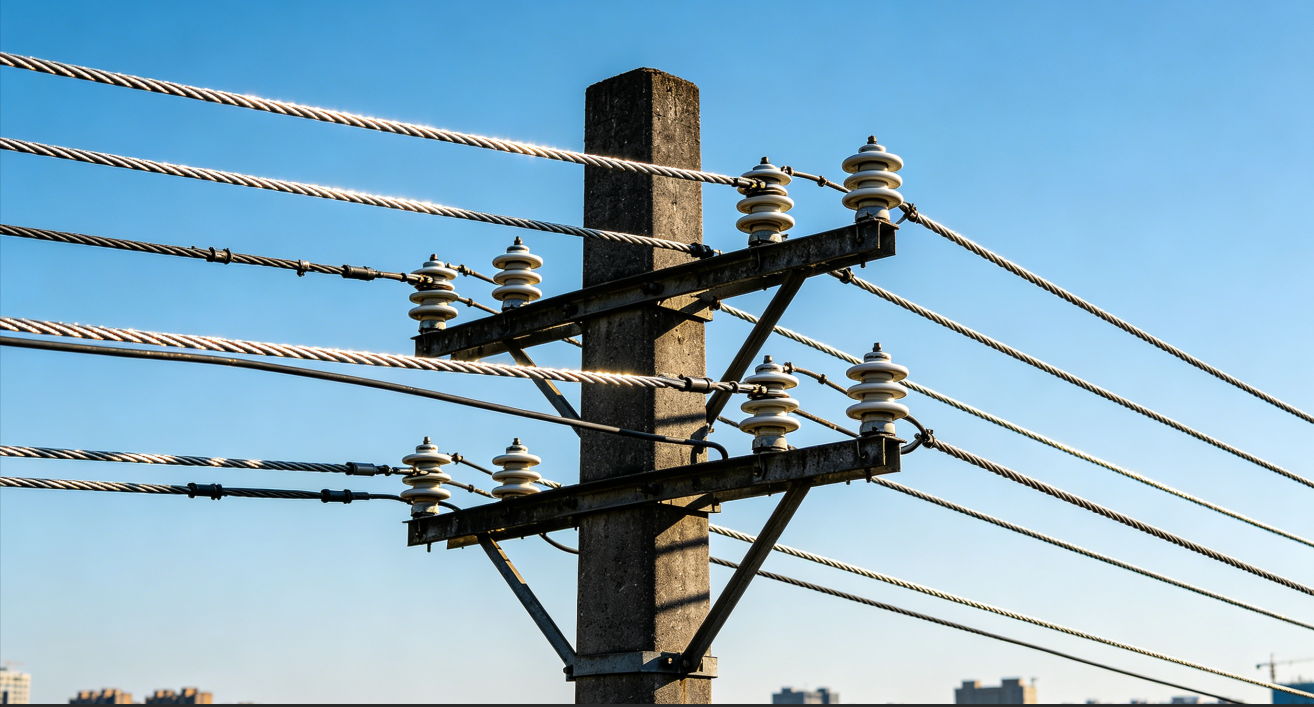

What is Aerial Bundled Cable (ABC) and Why Is It Replacing Bare Overhead Lines?

If you’ve worked on power distribution projects, you’ve likely come across the term “ABC Cable.” But what exactly is it, and why is it becoming the go-to choice for overhead power transmission worldwide?

Let’s break it down.

What is Aerial Bundled Cable?

Aerial Bundled Cable (ABC) is an overhead power distribution cable that consists of multiple insulated conductors bundled together. Think of it as a hybrid between traditional bare overhead lines and underground cables.

The concept began taking shape in the early 1960s, with early adoption in European and American countries. By the 1980s, Chinese manufacturers had also established large-scale production capabilities. Today, ABC cables are widely used in both urban and rural power networks across the globe.

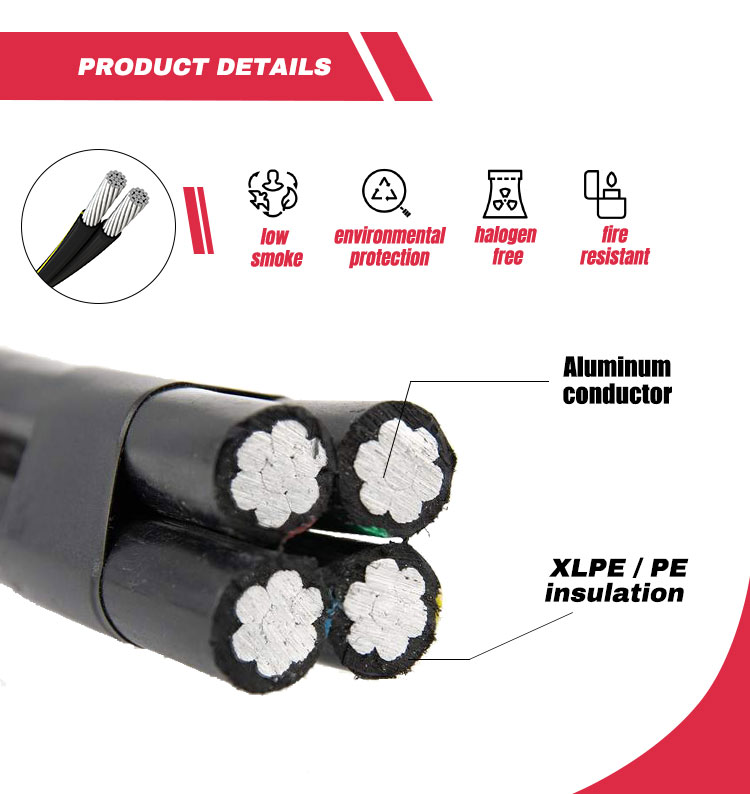

Structurally, ABC cables consist of an insulation layer (typically XLPE or PE) over each conductor, plus a protective outer sheath in some designs. While they are still susceptible to external interference and may not be as visually appealing as underground cables, they offer significant advantages: high power supply reliability, excellent stability, and much easier maintenance compared to buried systems. That’s why they are the preferred solution in areas where underground cable installation is impractical or too expensive.

How Do We Classify ABC Cables?

ABC cables are generally classified by the number of conductors they contain. The three most common types are:

1. Duplex (2-Conductor) ABC Cable

Duplex cables consist of two insulated conductors – one phase and one neutral. They are primarily used in single-phase 120V power lines.

Common applications include:

• Outdoor lighting systems (e.g., streetlights, garden lighting)
• Temporary power supply at construction sites
• Service drops for small residential loads

Fun fact: In the American market, duplex overhead cable sizes are named after dog breeds – you’ll find names like Setter, Shepherd, and Chow!

2. Triplex (3-Conductor) ABC Cable

Triplex cables feature three conductors – typically two insulated phase conductors and one bare or insulated neutral conductor. They are designed to carry power from utility poles to the customer’s service entrance (specifically, to the weatherhead).

These are the cables you commonly see running from the pole to a house or small commercial building.

Fun fact: American triplex cables are named after sea creatures! Common designations include Paludina, Valuta, and Minex – inspired by snails, clams, and other marine life.

3. Quadruplex (4-Conductor) ABC Cable

Quadruplex cables have four conductors – three insulated phase conductors and one neutral. They are designed for three-phase power lines, typically connecting pole-mounted transformers (especially in rural areas) to the end-user’s service head.

Fun fact: Quadruplex cables that meet NEC (National Electrical Code) requirements are named after horse breeds, such as Gelding and Appaloosa.

What About the Conductor Material?

If you look closely, you’ll notice that nearly all overhead service drop cables use aluminum conductors – not copper. Why is that? Let’s explore the reasons.

Hard Aluminum Wire offers:

• Lightweight construction – easier to handle and install
• Moderate tensile strength – sufficient for most overhead applications
• Easy bending – simplifies installation on existing poles
• Low cost – more economical than copper
• Great for both renovation projects and new constructions

Hard-Drawn Copper Wire, on the other hand, is heavier and has higher tensile strength. It can withstand greater external forces – in fact, even if the tower breaks, a copper cable can still maintain energization. However, due to its higher cost and weight, copper is rarely used for ABC cables.

Aluminum Alloy Wire strikes a balance – it’s lightweight like aluminum but offers stronger tensile strength, making it ideal for tower systems with spans of up to 100 meters.

For High-Voltage Systems (35kV and Above)

At 35kV voltage levels, a steel-core or aluminum-alloy-core supporting structure is typically adopted. Square insulators are used to separate the support wire (bare wire) from the three insulated phase lines. The support wire can also serve as a lightning conductor. Its biggest advantage? Minimal sag – the arc drop is only about 2.4% of the span length.

For medium-span systems, a self-supporting three-core stranded structure is common. However, there is a trade-off: three-core cables have shorter manufacturing lengths than single-core cables, requiring more joints. Additionally, an outer semi-conductive shielding layer is needed, and terminal heads or stress cone structures must be installed at cable ends – similar to standard power cables.

So, Why Aluminum?

To sum it up, aluminum is the material of choice for ABC cables for four key reasons:

1. Excellent conductivity-to-weight ratio – aluminum conducts electricity well while remaining light, making it perfect for overhead applications.
2. Strong corrosion resistance – aluminum naturally resists oxidation and weathering, ensuring long service life.
3. High cost-effectiveness – aluminum is significantly cheaper than copper, making large-scale distribution projects more affordable.
4. Fewer connection issues – while indoor copper-to-aluminum connections can be problematic, outdoor overhead connections are not subject to the same risks, so pure aluminum works perfectly fine.

Final Thoughts

Aerial Bundled Cable represents a smart, practical evolution in overhead power distribution. It combines the affordability of bare wire systems with the safety and reliability of insulated cables – all while being easier to install and maintain than underground alternatives.

Whether you’re a utility planner, a contractor, or simply curious about how power gets to your home, understanding ABC cables gives you valuable insight into the backbone of modern electrical grids.

Got questions about ABC cable specifications or installation? Feel free to reach out – we’re always happy to share our expertise!
