Unlocking the “Air Corridors” of Power Transmission: A Guide to Overhead Power Lines

Structurally, overhead cables primarily consist of a conductor, insulation, a protective sheath (in some types), and support hardware. The conductor is the core component and is typically made of aluminum, copper, or steel-core aluminum stranded wire. Among these, steel-core aluminum stranded wire is the most widely used, as it combines the high strength of steel with the excellent electrical conductivity of aluminum, making it suitable for long-distance, high-voltage power transmission; The insulation layer is made of materials such as cross-linked polyethylene (XLPE) and polyvinyl chloride (PVC), which isolate the conductor from the external environment to prevent electrical leakage and short circuits; the protective sheath enhances corrosion resistance, while the support hardware secures the cable to the towers, ensuring a secure installation.

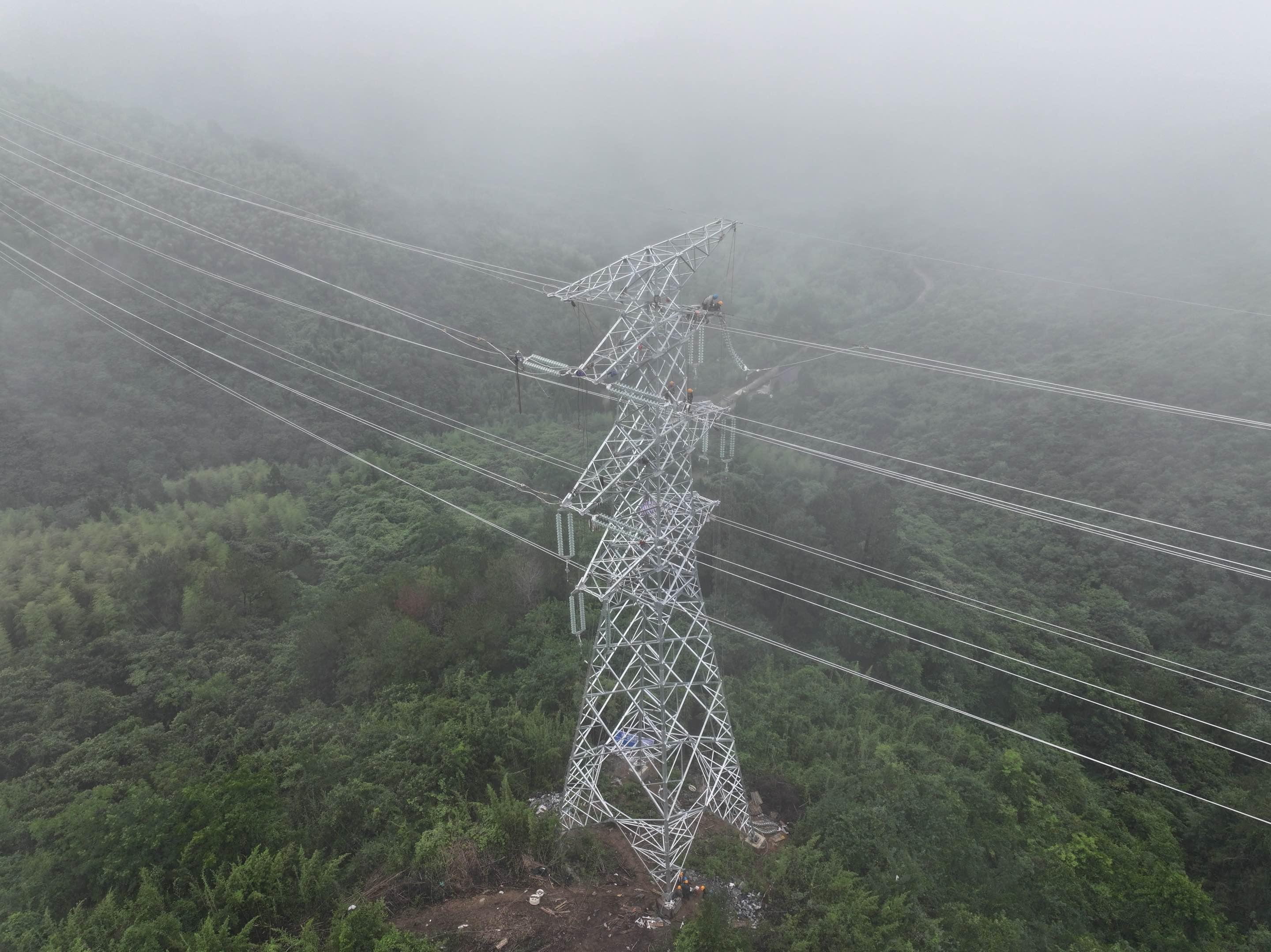

Based on their structure and application, overhead cables are primarily divided into two categories. One category consists of bare conductor overhead cables, commonly known as “bare wires.” These lack an insulating layer and rely on air insulation. They are primarily used for long-distance transmission of medium and high voltage (10 kV and above). Their advantages include excellent heat dissipation, high current-carrying capacity, and low cost; however, they offer lower safety, are susceptible to damage from trees, birds, and thunderstorms, and require the maintenance of a safe distance.

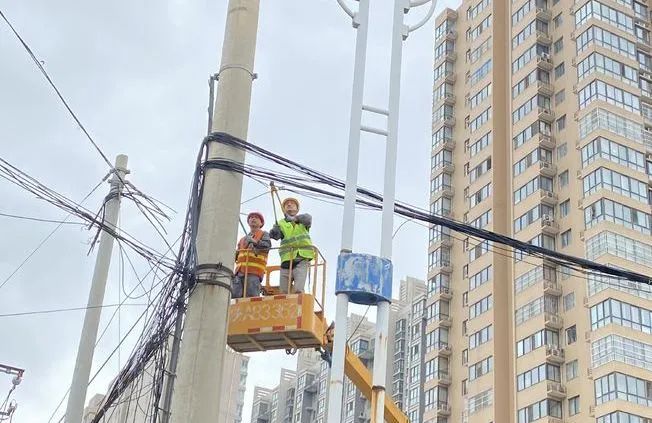

The other category is insulated overhead cables, which are most common in urban areas. These cables feature an insulating layer (and in some cases, a sheath) surrounding the conductor, offering extremely high safety. They are available in various specifications, including hard aluminum and hard-drawn copper wires, and are widely used in densely populated areas such as residential communities and schools, effectively preventing electric shock accidents.

Overhead cables offer several distinct advantages:

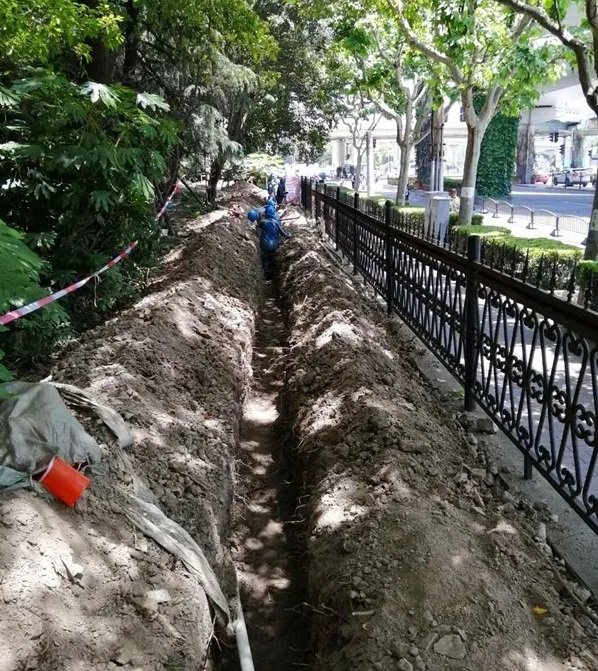

• They are easy to install and cost-effective, as they do not require road excavation, have a short construction period, minimize the required right-of-way, reduce land acquisition costs, and are more economical in the long term..

• They provide high power supply reliability, with an insulation failure rate 4 to 6 times lower than that of bare conductors, resulting in lower power losses and ensuring a stable power supply;

• Third, they offer strong adaptability. Whether in urban areas, rural regions, or complex mountainous terrain, they can be flexibly installed, addressing the challenges of difficult and costly underground cable installation in complex topography.

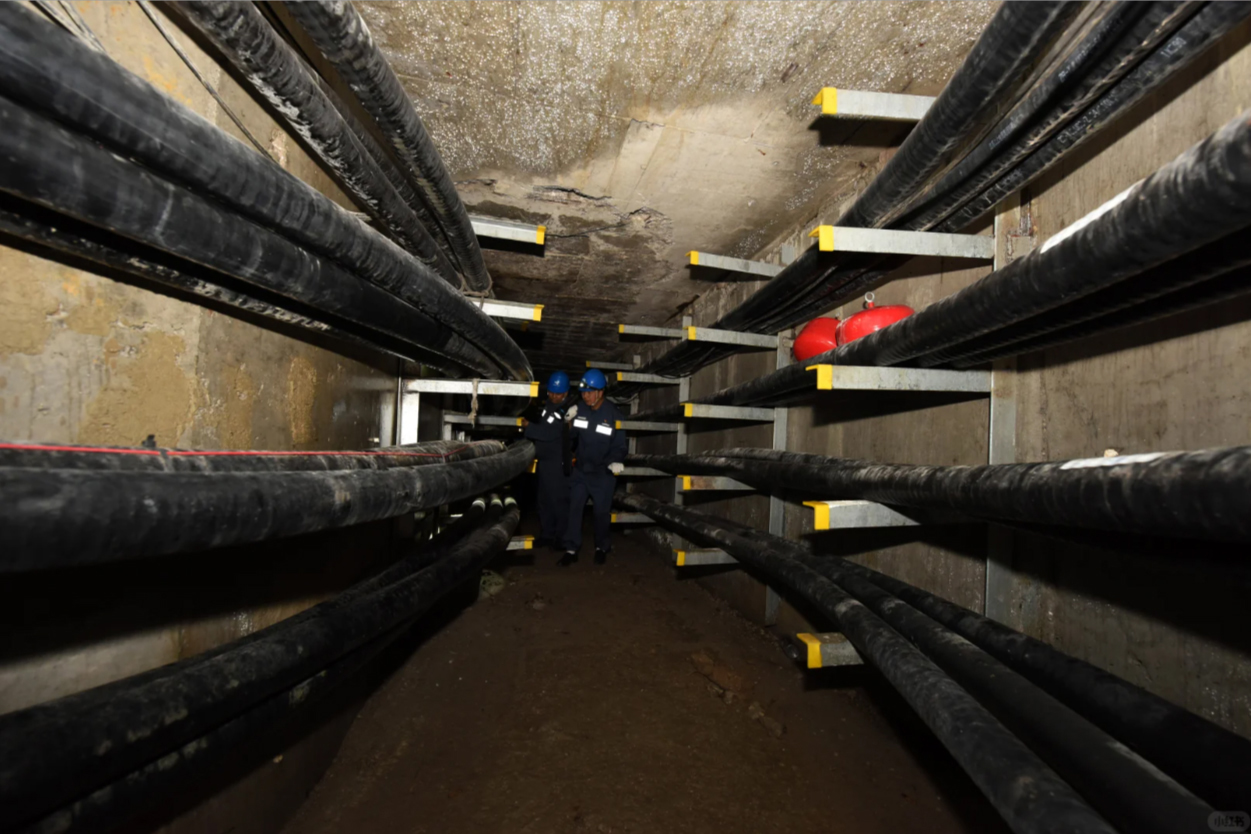

Of course, it also has its limitations: the insulation layer impedes heat dissipation, and high-voltage insulated cables have a lower current-carrying capacity than bare conductors, requiring the use of cables with larger cross-sections and increasing material costs; the unit cost is higher than that of bare conductors—approximately double for medium-voltage lines—and it places greater demands on the load-bearing capacity of poles and towers; They are highly susceptible to severe weather conditions such as strong winds, heavy rain, and lightning strikes, which can easily lead to cable breaks and tower tilting—a significant drawback compared to underground cables.

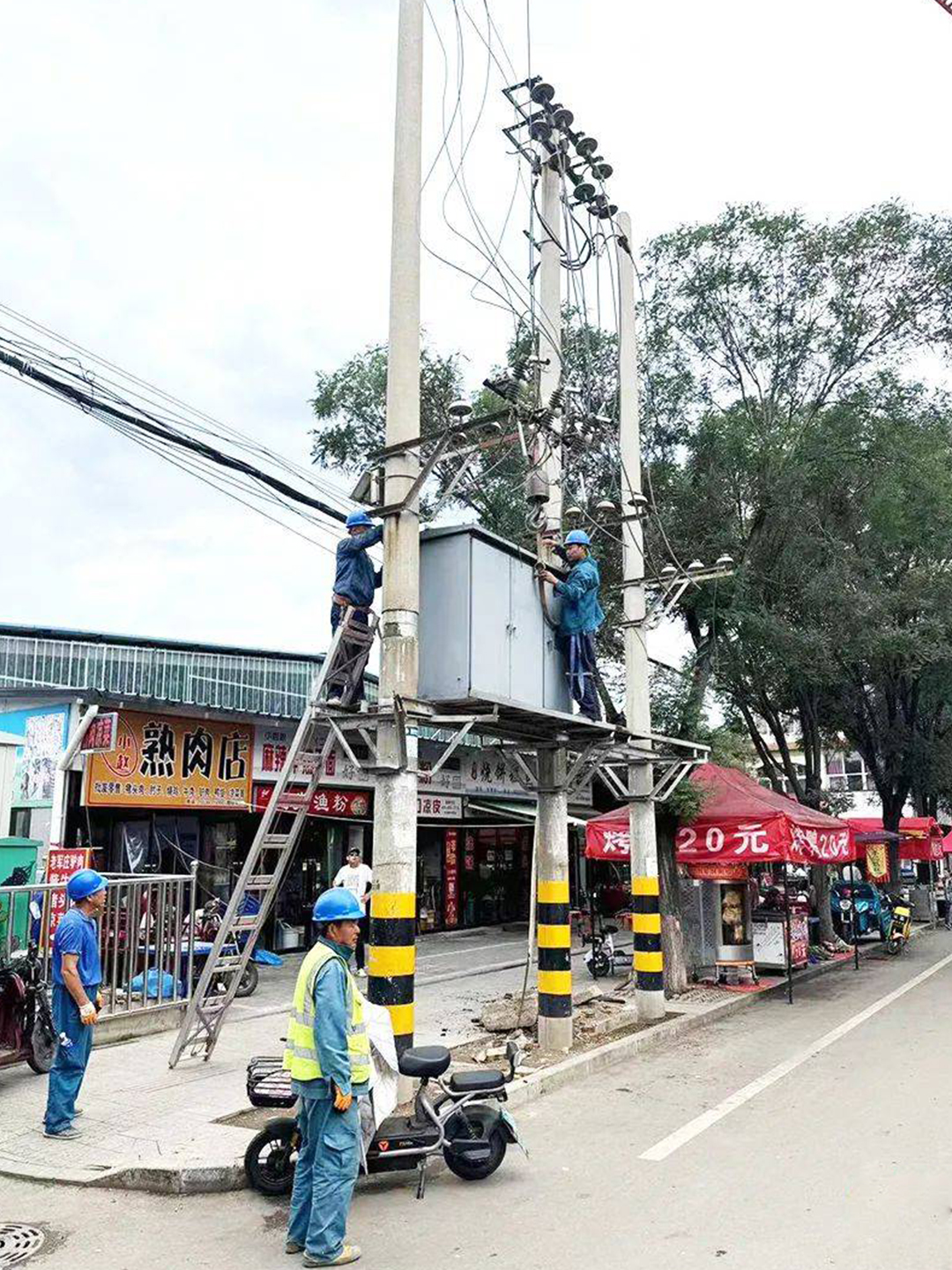

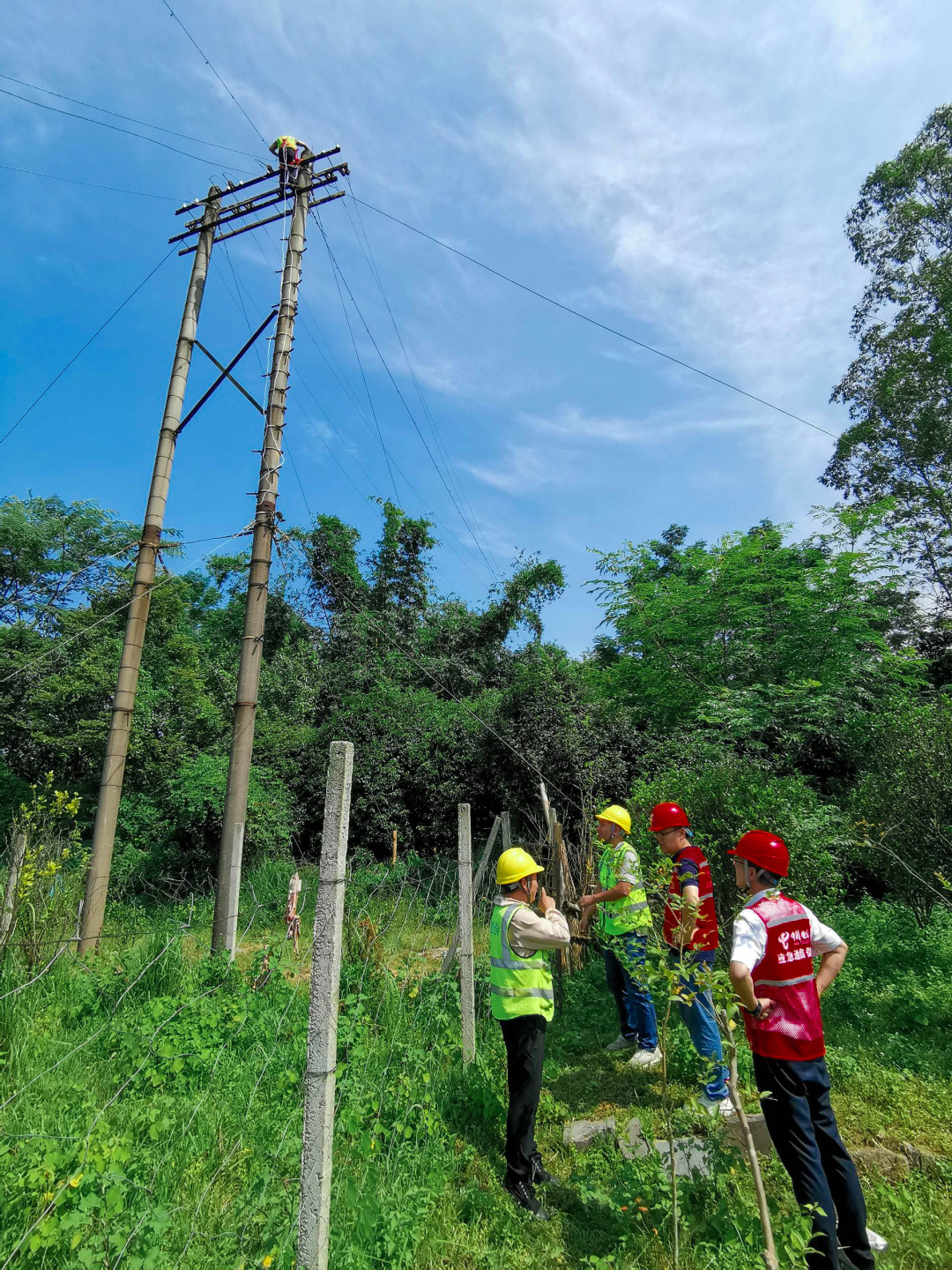

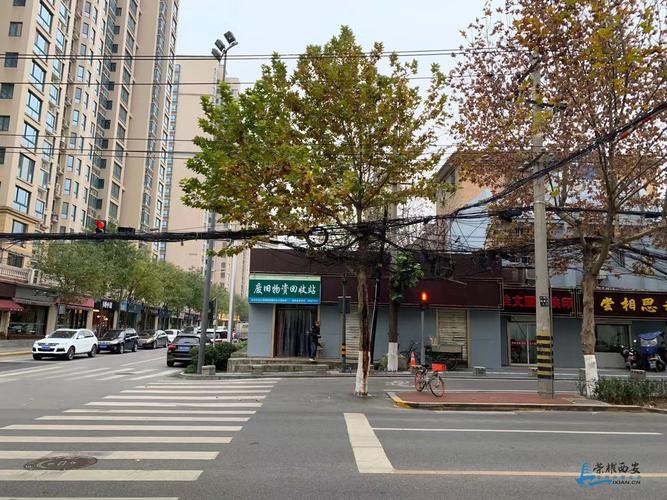

Overhead cables have a wide range of applications. In urban areas, they are commonly used in old-city renovations and distribution networks along major thoroughfares to avoid the impact of underground cable excavation on traffic and the environment, balancing safety with urban aesthetics; In rural and mountainous areas, they serve as the mainstay of power transmission, well-suited for rural grid upgrades and power transmission from mountainous solar power plants, easily adapting to complex terrain; additionally, they are suitable for areas with dense vegetation, high pollution levels, frequent lightning strikes, as well as coastal regions prone to salt fog and typhoons, where special protective treatments can extend their service life.

With advancements in technology, overhead cables are evolving toward greater efficiency, environmental sustainability, and intelligence. High-conductivity aluminum-core cables improve transmission efficiency and reduce power loss, aligning with the “dual carbon” goals; carbon fiber composite-core cables increase current-carrying capacity by 30%, enabling “cable replacement without tower replacement” and lowering construction costs; Some cables integrate optical fiber technology to achieve “power + communications” integration, supporting smart inspections and fault early warning systems to improve operational and maintenance efficiency.

Finally, here are a few daily precautions to ensure cable safety and protect yourself: Never climb utility poles or tug on cables, and maintain a safe distance from high-voltage overhead cables; do not build structures or pile debris beneath cables, and avoid flying kites or drones to prevent entanglement and potential faults; If you notice any abnormalities, such as broken cables or tilted poles, contact the power department immediately; do not attempt to handle the situation yourself.

Overhead cables are like “invisible guardians,” silently shouldering the heavy responsibility of power transmission and keeping the lights on in cities and rural areas. After reading this article, the next time you see cables on a utility pole, you’ll be able to recognize their types and understand their value.
