The “Power Arteries” Hidden in Buildings and Factories: A Guide to YJV Cables—Read This and Never Be Confused Again

Step into the underground electrical rooms of skyscrapers, stroll along the cable trays in factory workshops, or even pass by the power supply manhole covers in residential communities—you’ll see a type of cable that’s dark in color and solid to the touch. Unlike the thin household wires or the thick, bulky high-voltage cables, it quietly shoulders the heavy responsibility of being the “main force in power transmission.” From power plants to households, from factory machinery to city streetlights, wherever there is a need for high-power electricity, there it is. This is the YJV cable, a national standard cable known in the industry as the “power artery.” Today, we’ll explain its “history and evolution” and “inner workings” in the most down-to-earth way possible, so that after reading this, you’ll be able to easily distinguish its quality and understand its applications.

Let’s start with a simple analogy: if we compare the entire power system to the human body, then the power plant is the heart, household appliances and factory equipment are the organs that need blood supply, and YJV cable is the “major artery” connecting the heart to these organs—it’s not as delicate as capillaries (household BV wire), which can only carry small currents; nor is it like the aorta (high-voltage cables), which requires special protection and is specifically designed for long-distance, high-power transmission. Instead, it falls somewhere in between, balancing “transmission capacity” and “adaptability,” making it the most commonly used “all-rounder” in the industrial and construction sectors.

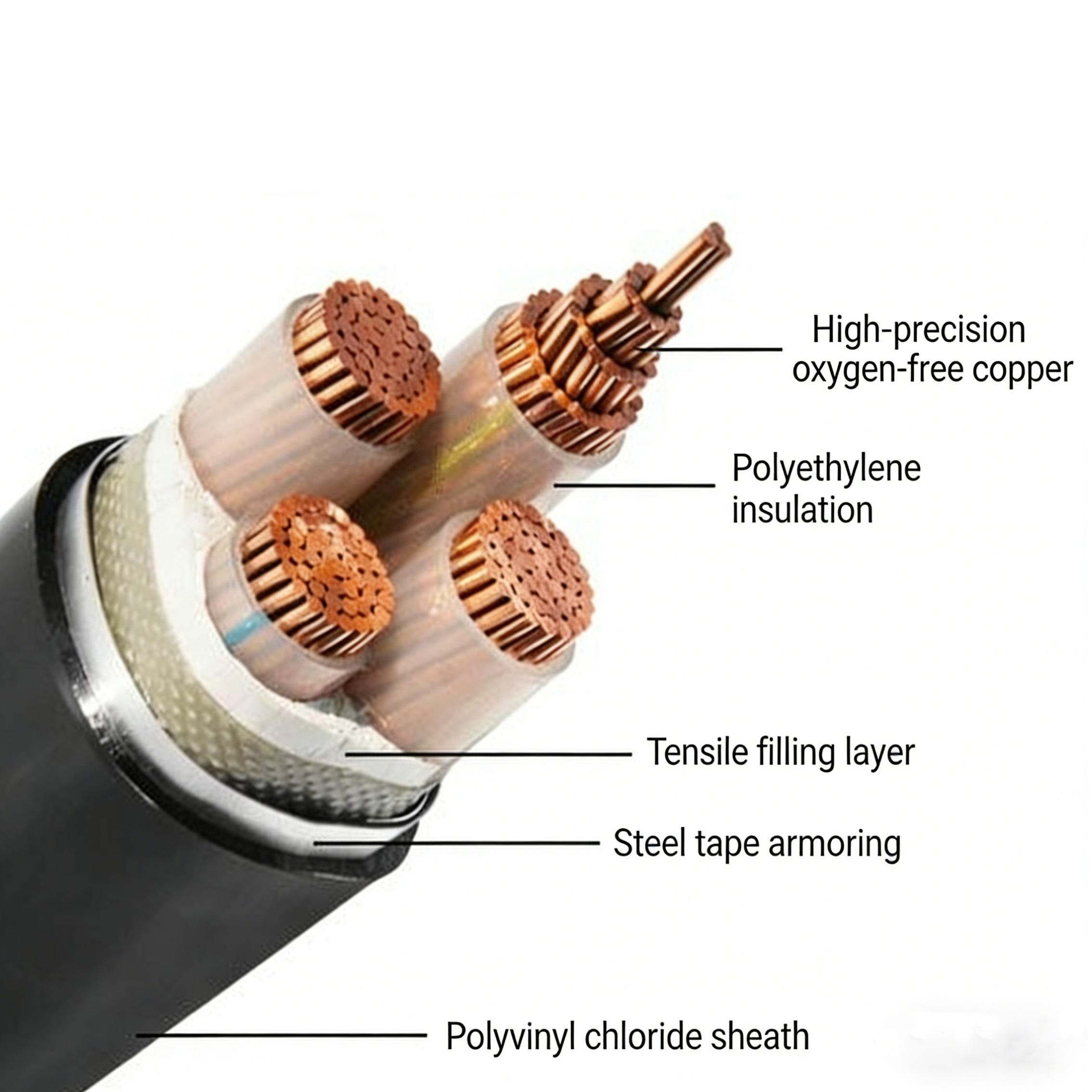

To truly understand the “exceptional qualities” of YJV cables, we must first peel back its “outer layer” and see what its “internal components” actually look like. Many people see a cable and think of it merely as a “thick wire,” but there is actually a great deal of sophistication involved. From the innermost to the outermost layers, each provides protection and fulfills a specific function—just like the layers of clothing we wear, from underwear to sweaters to outerwear, which provide both warmth and protection. The structure of YJV cable is no different, except that every layer of its “clothing” is designed specifically for “stable power transmission.”

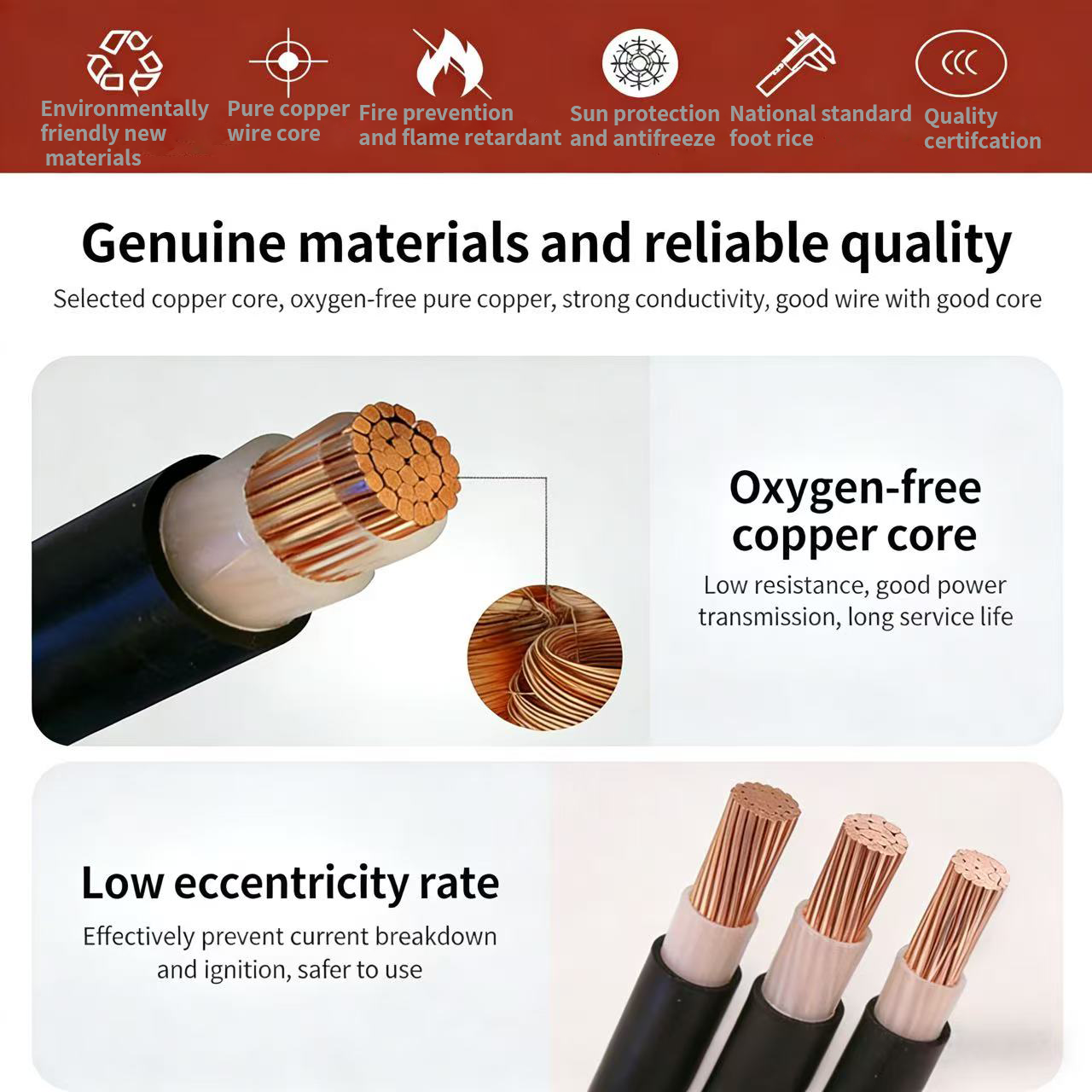

At the very core, the innermost layer is the “heart” of the YJV cable—the conductor—which is equivalent to the “inner walls of blood vessels” in the human body and is responsible for directly transmitting electrical energy. It is not just ordinary copper wire, but rather high-purity oxygen-free copper that has been twisted into multiple strands and tightly compressed into shape. You can imagine it as “a tightly bound army of copper wires,” where each wire is of extremely high purity (copper content ≥99.97%) and boasts exceptional conductivity. Just like a group of “electricity carriers,” they efficiently and rapidly deliver electrical energy to every corner.

Why is it made with “multiple strands twisted together” rather than a single thick copper wire? There’s a lot of science behind this. While a single thick copper wire has decent conductivity, it’s too hard and brittle—it’s prone to breaking if bent even slightly during installation, much like a stiff piece of wire that can’t withstand rough handling; In contrast, when multiple thin copper wires are twisted together, they become soft and resilient, allowing them to be bent and pulled freely. They can navigate even the narrowest cable trays and conduit with ease, much like the yarn we use in everyday life—soft yet strong, and resistant to breaking. Furthermore, the compact, tightly compressed design reduces the gaps between the copper wires, making the conductor denser. This not only saves installation space but also improves electrical conductivity, reducing energy loss during transmission—in short, it makes these “power carriers” more compact and efficient, ensuring not a single bit of electricity is wasted.

Enveloping the conductors is the “core advantage layer” of YJV cable—the cross-linked polyethylene (XLPE) insulation layer. This is like dressing the “power carriers” in a “heat-resistant, leak-proof protective suit.” This layer is also the most fundamental difference between YJV cable and traditional VV cable, and it is arguably the “secret weapon” of YJV cable.

Some might ask, “Isn’t the insulation layer just a layer of plastic? What’s so special about it?” Here, we need to correct a common misconception: the insulation layer of YJV cables is not ordinary plastic, but a special material upgraded through a “cross-linking” process. We can imagine ordinary plastic as “a tangled ball of yarn.” Its molecular structure is linear, making it prone to softening and deformation at high temperatures—much like a plastic bottle left in a car on a hot summer day, which softens under the sun. Cross-linked polyethylene, however, undergoes a special treatment that transforms its molecular structure into a “network structure.” This is akin to weaving that tangled yarn into a sturdy sweater, significantly enhancing its heat resistance and resistance to aging.

Specifically, the long-term operating temperature of ordinary PVC insulation is only 70°C—much like a person who is heat-sensitive and suffers from “heatstroke” at even slightly higher temperatures; In contrast, the XLPE insulation in YJV cables can operate continuously at up to 90°C and withstand temperatures as high as 250°C during a short circuit. Even during summer peak demand when the cable is operating at full load, it remains stable and won’t soften or break down due to overheating—this is akin to ordinary cables can only operate in “normal temperature environments,” while YJV cables can handle “high-temperature workshops” with ease, offering far greater adaptability than ordinary cables. Moreover, this “protective gear” is exceptionally durable, resistant to acids and alkalis, and resistant to aging. Even in damp, dusty environments, it firmly protects the inner conductors, preventing electrical leakage and short circuits—much like a “waterproof, corrosion-resistant jacket” that shields these “power carriers” from external environmental interference.

In the case of multi-core YJV cables (such as 3-core, 4-core, or 5-core cables, commonly used for power supply), there is an additional “filler layer” outside the insulation layer, which acts like “cushioning material” between the “multiple groups of power carriers.” Imagine several conductors wrapped in insulation placed together—there would be many gaps between them, much like a pile of pipes of varying thicknesses that would lean this way and that when stacked. The filler layer acts like a sponge, filling these gaps to make the entire cable smooth and compact. This not only prevents the conductors from shifting or loosening during installation but also serves as a buffer against external compression and impact. —for example, if the cable is accidentally stepped on during construction, the filling layer cushions the pressure, preventing the internal insulation and conductors from being crushed, much like the foam we use to wrap fragile items for protection.

Outside the filler layer is a “tape insulation layer,” typically made of flame-retardant non-woven fabric or polyester tape, which acts like a “close-fitting undershirt” for the cable. Its primary functions are “isolation and stabilization.” On one hand, it separates the filler layer from the outer sheath, preventing friction between the sheath material and the filler or insulation layers, thereby protecting the insulation from damage; on the other hand, it further stabilizes the conductor structure, enhancing the cable’s integrity and tensile strength. It also provides some moisture and dust protection, preventing water and dust from penetrating the cable’s interior and affecting its electrical performance—in short, it adds another layer of protection to the cable’s “internal components,” making it more durable and stable.

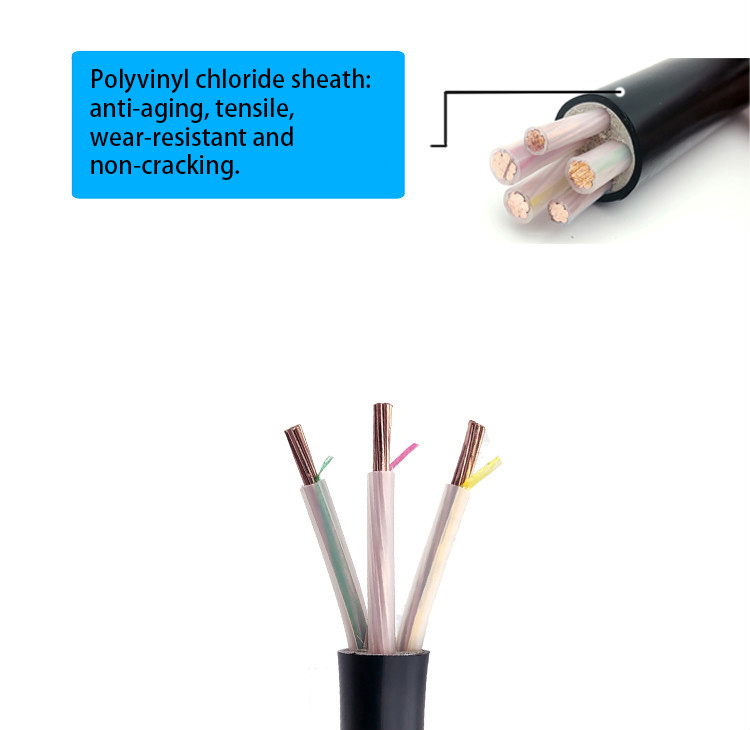

The outermost layer is the “outer garment” of the YJV cable—the polyvinyl chloride (PVC) outer sheath, which acts like a “wear-resistant, impact-proof suit of armor” for the entire cable. This layer comes into direct contact with the external environment and bears the primary protective role, much like the coat we wear when going out, shielding us from wind, sun, and bumps. The outer sheath of YJV cables is made of flame-retardant PVC, which is hard, wear-resistant, and tear-resistant. It effectively withstands various external damages during installation and use: friction during cable tray installation, compression during underground burial, wind, sun, and rain outdoors, and even oil stains and acid-alkali corrosion in industrial environments—it handles them all with ease.

More importantly, this “armor” also features flame-retardant properties. It will self-extinguish upon contact with open flames and will not spread the fire, acting like a “fireproof jacket” that effectively reduces fire hazards. In crowded shopping malls, office buildings, or flammable and explosive factory workshops, this flame-retardant property is particularly crucial, buying valuable time for evacuation and rescue efforts. Furthermore, this “armor” is highly versatile. Depending on the application scenario, it can be produced in different colors—for example, black is suitable for outdoor installations, while gray is ideal for indoor cable trays, making it easier for construction workers to distinguish and inspect them.

After understanding the various aspects of YJV cables, let’s discuss their strengths – why they have become the preferred choice in industrial and construction applications. The answer is simple: every aspect of their design is tailored to meet practical needs. They’re like “all-rounder” cables that can handle high temperatures and pressures, resist external damage, and deliver electricity reliably. Their cost-effectiveness makes them an excellent choice.

The first advantage is its “high-temperature resistance and high current-carrying capacity.” In other words, it can handle heavy loads without failing. As mentioned earlier, the XLPE insulation layer of YJV cables allows them to operate at temperatures up to 90°C, which is 20°C higher than that of ordinary VV cables. This means that, for a given wire diameter, YJV cables can carry more electricity. It’s like having a thicker “blood vessel” that can transport more “blood.” For example, a 50mm² YJV cable can carry a current of 175A when installed in air, while an ordinary VV cable can only handle 145A. The difference is significant. This is especially important in applications where high power is required, such as industrial production and large buildings. For instance, large motors in factories and central air conditioning systems in shopping malls all require substantial power supplies. YJV cables can handle these demands without overheating or aging due to overload, ensuring the proper operation of the equipment.

The second advantage is “excellent electrical performance and low power transmission losses,” meaning it’s both energy-efficient and highly efficient. The high-purity oxygen-free copper conductor, combined with the XLPE insulation layer, results in high conductivity and low resistance. As a result, power loss during transmission is minimal. It’s like having “efficient power carriers” that don’t waste any electricity at all. For large buildings and factories, this translates into significant savings on electricity costs over time. For example, a large shopping mall that uses YJV cables can save a considerable amount of money each year due to its high electricity consumption. Additionally, the XLPE insulation layer provides strong insulation, reducing the risk of electric leakage and ensuring stable power supply. This prevents accidents like short circuits and power outages caused by insulation failure. In other words, it’s like having a “strong power artery” that won’t break easily, ensuring the smooth operation of the electrical system.

The third advantage is “flame-retardant safety and long service life,” making it a durable and reliable choice. The insulation layer, filler material, and outer sheath of YJV cables are all flame-retardant, with a flame-retardant rating of B or higher. This means the cables can self-extinguish when removed from heat, effectively reducing the risk of fires. Moreover, the XLPE insulation layer and PVC outer sheath are resistant to aging and corrosion. Under normal conditions, YJV cables can last for more than 30 years, far longer than traditional VV cables, which typically last 15–20 years. This means that once installed, the cables don’t need to be replaced for a long time, reducing replacement and maintenance costs. For buildings and factories, this is a cost-effective solution that eliminates the need for frequent downtime for repairs and cable replacements, saving time and labor costs.

The fourth advantage is “high mechanical strength and compatibility with various installation methods,” making it flexible and durable. The combination of the compressed conductor, filler material, wrapping layers, and outer sheath gives YJV cables excellent resistance to compression, tension, and pulling forces. They’re less likely to break or damage, similar to a strong athlete who can handle various challenging installation situations. Whether it’s installation in cable trays (like in corridors), through pipes (like in tunnels), underground (like buried in the ground), or overhead outdoors (like suspended in the air), YJV cables can handle it all. For example, cables in subway tunnels must withstand soil pressure and construction damage. YJV cables, especially the YJV22 armored version, can resist external damage and operate reliably over time. Outdoor lighting cables, exposed to wind, sun, and rain, benefit from the UV-resistant and weatherproof outer sheath of YJV cables, preventing aging and cracking.

The fifth advantage is “wide applicability and versatility,” making it a versatile choice for many applications. YJV cables are available in various specifications, from single-core to multi-core, with conductive capacities ranging from 1mm² to 240mm². This allows them to meet the power needs of different scenarios. They’re widely used in construction projects (residential buildings, commercial complexes, office buildings), industrial production (factories, power plants, chemical plants), municipal projects (street lighting, public power supply), and outdoor installations (bridges, tunnels). In our residential areas, YJV cables are used for power distribution from the utility room to each household. Elevators and central air conditioning systems in shopping malls also use YJV cables. Factories use them for motors and production lines. Even important facilities like airports and subways rely on YJV cables. YJV cables have become an integral part of our lives, ensuring our electrical safety every day.

However, many people make common mistakes when choosing and using YJV cables. These mistakes can lead to improper selection and misuse, which not only affects power supply safety but also shortens the cable’s lifespan. Today, we’ll highlight a few of these common misconceptions to help you avoid them.

Misconception 1: “The thicker the wire, the better.” Many believe that a thicker wire means more stable power supply. But this isn’t always true. The wire diameter should be determined based on actual load current, installation method, and transmission distance. It’s like buying clothes—if larger isn’t necessarily better, fit is what matters most. A too-thick wire increases costs and makes installation difficult, like wearing a large coat that’s too tight and uncomfortable. On the other hand, a too-thin wire results in insufficient current-carrying capacity, excessive heating, accelerated insulation degradation, and even short circuits. This is like wearing clothes that are too small and cause discomfort and damage. The right approach is to calculate the required current based on the load power, then adjust it according to the installation method (e.g., buried or tray-mounted). For example, for household main cables, 10mm² YJV cable is usually sufficient for powering high-power appliances.

Misconception 2: “YJV cables can be installed anywhere.” While YJV cables can be used in various installation methods, each requires specific precautions. For example, when buried, sand should be laid around the cable to protect it from sharp objects. Similarly, overhead installations require proper fixation and protection against wear from wind. In ducts, the duct diameter must be suitable to prevent damage from compression or dragging. YJV cables shouldn’t be used in environments with high temperatures, corrosion, or radiation. If installation is necessary, special protective measures must be taken. For example, in chemical plants, corrosion-resistant YJV cables with proper protection are required.

Misconception 3: “Ignoring the flame-retardant rating of the cable.” Different applications require different flame-retardant ratings, just as different situations require different types of clothing. For example, surgical rooms require sterile clothing, while construction sites need workwear. In crowded areas with high fire risks, such as tall buildings, shopping malls, and power plants, YJV cables with higher flame-retardant ratings (e.g., Class B or A) are necessary. For residential use, lower-grade flame-retardant cables suffice. Ignoring the flame-retardant rating can increase fire risks and fail to meet safety standards. For example, if a shopping mall uses non-compliant YJV cables, a fire could spread rapidly, releasing toxic smoke and endangering lives.

Misconception 4: “Confusing YJV and VV cables.” Many people think YJV and VV cables are interchangeable. But they’re not. The main difference lies in the insulation material: YJV uses XLPE insulation, which is heat-resistant and durable, like a “reliable jacket.” VV uses PVC insulation, which is less heat-resistant and has a shorter lifespan, like a “regular jacket.” In applications requiring high power, continuous heavy load, or harsh conditions, YJV cables are preferable. For low-power, temporary applications in mild environments, VV cables may be cheaper depending on budget. However, YJV cables offer better long-term value. For example, in factory main circuits where continuous heavy load is common, YJV cables reduce replacement and maintenance costs. For temporary power needs at construction sites, VV cables provide lower costs.

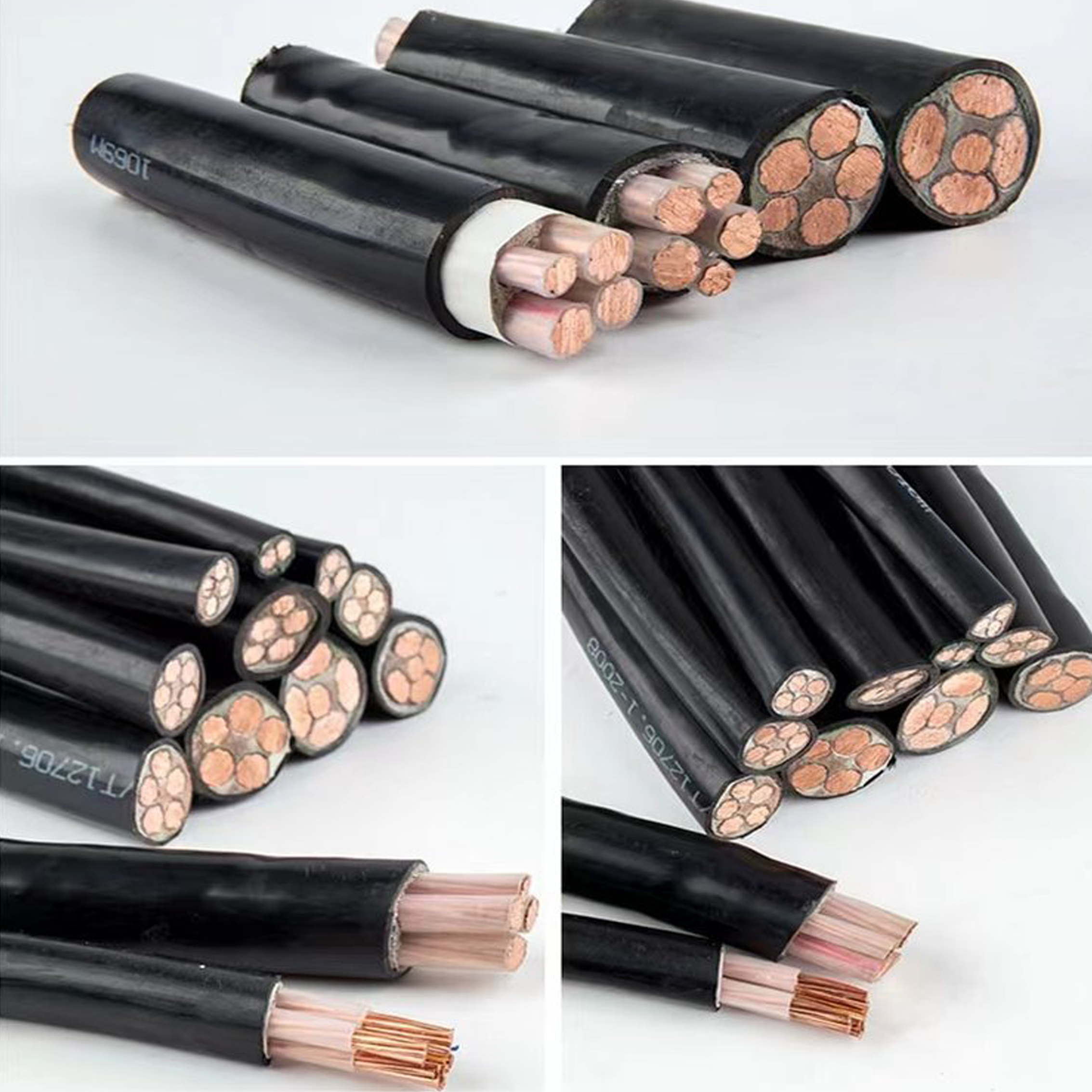

Finally, let’s discuss the common specifications and applications of YJV cables, to help you make informed choices when selecting the right cable for your needs. YJV cables are available in single-core and multi-core versions. Single-core cables are primarily used in high-voltage transmission lines, acting like “major arteries” that enable long-distance, high-power power transmission. Multi-core cables (with 3, 4, or 5 cores) are more commonly used in medium- and low-voltage power supply systems, serving as “medium-sized arteries” that provide essential power to buildings and factories.

Among them, 3-core cables are ideal for three-phase power supply applications, such as industrial equipment and motors, providing the necessary “three-phase power”. 4-core cables are suitable for three-phase power supply with a neutral wire, commonly found in commercial and office buildings. 5-core cables, on the other hand, are perfect for three-phase power supply with both a neutral wire and a ground wire, making them ideal for main power distribution systems in residential complexes and factories. This design enhances electrical safety and prevents accidents related to electric leakage.

In terms of applications, YJV cables can be used in various scenarios: as main power lines in construction projects, for connecting distribution boxes to equipment; in industrial settings, for powering factory workshops, connecting motors, and controlling equipment; in municipal projects, for street lighting, supplying power to utility networks, and lighting bridges and tunnels; and in outdoor applications, for overhead and buried power lines. Whether in hot, humid environments, outdoors, or in industrial environments subject to corrosion, YJV cables perform reliably, ensuring safe and secure power transmission across all applications.

By now, you should have a comprehensive understanding of YJV cables. Although they don’t have a fancy appearance, they possess robust capabilities. They function like dedicated “electricity guardians”, hidden in every corner of buildings and factories, ensuring our electrical safety and stability through their efficient design. Understanding their structure, advantages, selection criteria, and common misuse can help us choose the right cable for our needs. It also helps extend the cable’s lifespan and reduce maintenance costs. Next time you see one of these sturdy, reliable cables, you can proudly say, “I know what this is! It’s a YJV cable, an essential ‘electricity artery’ in our lives!”
