PV1-F Solar Cable: A Complete Guide for Your Photovoltaic System

Choosing the right cable for a solar photovoltaic (PV) system is more important than many people realize. The wrong cable can lead to energy loss, safety hazards, and frequent replacements.

Among the various options available, the PV1-F solar cable has become a industry standard for DC connections in residential, commercial, and utility-scale solar installations.

This guide explains what PV1-F cable is, what makes it different, and why it matters for your solar project.

What Is PV1-F Cable?

PV1-F is a type of single-core, flexible copper cable designed specifically for photovoltaic systems. It is used for DC connections between solar panels, combiner boxes, inverters, and battery storage systems.

The name “PV1-F” comes from European standards, where it is widely recognized as a reliable solution for fixed outdoor solar installations.

Unlike electrical wires, PV1-F cable is built to survive years of direct sunlight, temperature extremes, rain, and mechanical stress.

Key Construction Features

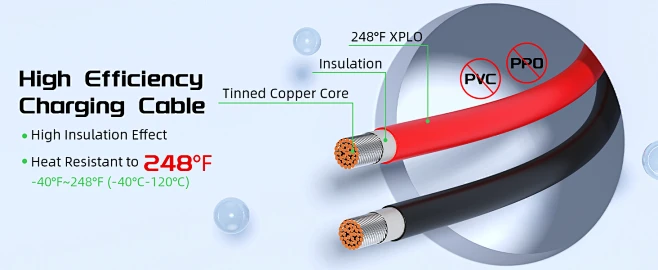

Conductor: Tinned Copper

The conductor is made of tinned oxygen-free copper. The tin coating provides protection against oxidation and corrosion, which is essential for long-term outdoor use. Copper ensures high conductivity and low resistance.

Insulation and Sheath: Cross-Linked Polyolefin (XLPO)

Both the insulation and outer sheath are made of halogen-free cross-linked polyolefin. This material offers:

• Excellent UV resistance
• Flame retardancy
• Low smoke emission
• Resistance to oil, acids, and alkalis
• Flexibility for easy installation

The cross-linking process improves thermal and mechanical performance compared to standard PVC.

Color Coding

PV1-F cables typically come in two colors:

• Black for the positive connection
• Red for the negative connection

This follows standard solar industry practice and helps avoid wiring errors.

Why PV1-F Is the Right Choice for Solar

Long Service Life

Solar systems are designed to operate for 20 to 25 years. PV1-F cables are rated for a comparable lifespan under normal outdoor conditions. Their resistance to UV radiation and temperature cycling prevents cracking and insulation breakdown.

Temperature Performance

PV1-F cable performs reliably in extreme environments. It remains flexible in cold conditions and maintains its electrical properties under high heat. This makes it suitable for rooftop installations, desert solar farms, and cold climate regions.

Low Smoke Halogen-Free (LSZH)

In the event of a fire, PV1-F cables emit low smoke and no toxic halogen gases. This is an important safety feature, especially for rooftop or building-integrated solar systems.

Compatibility with Connectors

PV1-F cables are compatible with standard MC4 connectors, which are widely used in the solar industry. This simplifies field assembly and reduces compatibility issues.

Common Applications

PV1-F solar cable is used in the following scenarios:

• Residential rooftop solar systems – connecting panels to inverters
• Commercial and industrial solar farms – string wiring and combiner box connections
• Solar carports and street lights – outdoor DC power transmission
• Energy storage systems – battery to inverter connections
• Off-grid solar installations – remote power supply systems

PV1-F vs Ordinary Cables: What’s the Difference?

Many people ask: Can I use PVC cable for my solar system?

The short answer is no. Here is why:

Using ordinary cables outdoors leads to rapid cracking, energy loss, and fire risk.

How to Choose Quality PV1-F Cable

When purchasing PV1-F cable for your solar project, consider the following factors:

Certification

Look for international certifications such as:

• TÜV 2PfG 1169
• EN 50618
• IEC 62930

These standards ensure the cable has passed rigorous testing for electrical, mechanical, and environmental performance.

Conductor Size

The appropriate conductor size depends on the current and cable length. Common sizes include 2.5mm², 4mm², 6mm², and 10mm². Larger systems with longer cable runs require thicker conductors to reduce voltage drop.

Supplier Reputation

Purchase from a reliable cable manufacturer or supplier with transparent specifications and consistent quality. Avoid cables with no clear markings or unknown certification claims.

Installation Tips for PV1-F Cable

To get the best performance from your PV1-F cables, follow these basic guidelines:

• Avoid sharp bends – Maintain the minimum bending radius recommended by the manufacturer
• Use proper connectors – Match PV1-F cable with MC4 or compatible DC connectors
• Secure cables properly – Use cable clips or trays to prevent sagging and abrasion
• Separate DC and AC wiring – Avoid running solar DC cables alongside AC lines to reduce interference

Frequently Asked Questions (FAQ)

Is PV1-F cable suitable for underground use?

PV1-F is primarily designed for exposed outdoor use. For direct burial, additional mechanical protection such as a conduit is recommended.

Can PV1-F be used for AC wiring?

No. PV1-F is specifically designed for DC photovoltaic circuits. For AC wiring on the output side of the inverter, use appropriate AC cables.

What is the standard voltage rating of PV1-F?

Most PV1-F cables are rated at 1.0/1.0 kV DC, which covers most residential and commercial solar installations.

How do I identify genuine PV1-F cable?

Genuine PV1-F cable has clear markings along the sheath, including the cable type, conductor size, and certification standards.

Final Thoughts

A solar system is only as reliable as its weakest component. The wiring that connects everything together deserves as much attention as the panels or the inverter.

PV1-F solar cable offers a proven, durable, and safe solution for DC connections in photovoltaic systems. Whether you are installing a small rooftop array or a large ground-mounted solar farm, choosing the right cable from the start saves time, money, and future headaches.
