New Energy Cables: The “Lifeline of Power” Behind the Green Energy Era

When solar panels on rooftops absorb sunlight, wind turbines spin in the open fields to generate electricity, and new energy vehicles undergo rapid charging, there is an “unsung hero” that is always working behind the scenes—new energy cables. Unlike ordinary electrical wires used in home renovations, new energy cables are “specialized cables” custom-designed for green energy applications such as solar power, wind power, energy storage, and new energy vehicles. They carry the core mission of efficiently transmitting electrical energy and ensuring the safe operation of equipment, serving as the “blood vessels” of green energy systems. Today, let’s explore the key facts about new energy cables and understand why they can adapt to various extreme environments, becoming a vital pillar of the energy transition.

First, let’s clarify a core question: What exactly is a new energy cable? Simply put, it is a specialized cable designed specifically for the harsh operating conditions of the new energy sector. Unlike traditional general-purpose cables such as BV and YJV, it must meet a series of special requirements, including high voltage, high current, resistance to extreme environments, long service life, high flame retardancy, and low-smoke, halogen-free properties. It also has dedicated national standards and international certifications (such as TÜV, UL, and GB/T 39560) to ensure long-term, stable operation in complex environments.

Almost every green energy application we encounter in daily life relies on it: the series transmission of rooftop solar panels, power aggregation at wind farms, charging and discharging connections at energy storage stations, high-voltage power transmission in new energy vehicles, fast-charging power supply for residential charging stations, and even underwater cabling for offshore wind farms—all require new energy cables to build these “energy bridges.” It can be said that without new energy cables, there would be no efficient and safe green energy system.

A Deep Dive: The Core Structure of New Energy Cables

The true strength of new energy cables lies in their layered structure. Unlike the simple design of ordinary cables, these cables feature four core layers—conductor, insulation, shielding, and sheath—each of which has been upgraded with specialized materials and processes to precisely meet the demanding requirements of various applications.​

1.Conductor Layer: High Conductivity + High Flexibility, Suited for Complex Installation

The conductor is the “core transmission component” of new energy cables, directly determining the efficiency of power transmission. Compared to ordinary cables, both its material and structure have been upgraded: it uses 99.99% high-purity oxygen-free copper or tin-plated copper, which not only reduces resistance and minimizes power loss but also prevents oxidation and corrosion, making it particularly suitable for harsh environments such as coastal areas and deserts; Structurally, they primarily use Category 5 or 6 multi-strand fine-stranded flexible conductors, with a bending radius as low as 6 times the outer diameter. These conductors withstand repeated bending and are suitable for applications requiring frequent bending, such as solar panel wiring, charging station movement, and wind turbine yaw systems

For example, cables in wind turbine yaw systems must withstand tens of thousands of twists without damage, so ultra-flexible, torsion-resistant conductors are used; in high-voltage power collection applications, compact circular or segmented conductors are employed to reduce the skin effect and enhance current-carrying capacity.​

2.Insulation Layer: High Voltage + Temperature Resistance, Building a Strong Safety Barrier

New energy applications often face challenges such as high voltage, high temperatures, and extreme temperature fluctuations, so the insulation must be exceptionally durable. Mainstream materials include cross-linked polyethylene (XLPE), ethylene-propylene rubber (EPR), and radiation-cross-linked polyolefins. These specialty materials offer a breakdown voltage of 20–30 kV/mm—2 to 3 times that of standard cables—effectively preventing leakage and short circuits; The temperature resistance range spans -40°C to 125°C, with some specialized cables for photovoltaic and energy storage systems capable of withstanding temperatures as high as 150°C, making them suitable for extreme temperature environments such as intense desert heat and severe high-altitude cold.

In particular, PV-specific cables are specifically designed for 1000V/1500V DC voltages, meeting the high DC voltage requirements of PV modules, and will not experience insulation aging or breakdown even after long-term use.​

3.Shielding/Armoring Layer: Interference Resistance + Damage Protection, Dual Protection

New energy equipment (such as wind turbines, new energy vehicles, and energy storage PCS) generates strong electromagnetic interference during operation. The shielding layer effectively blocks internal and external electromagnetic signal crosstalk, ensuring stable power and signal transmission. Most cables use a dual-layer shielding system consisting of aluminum foil and copper wire braiding, with a shielding efficiency of ≥90%, completely eliminating interference issues.

The armor layer primarily provides mechanical protection: Onshore wind power and direct-buried photovoltaic applications use steel tape armor to prevent damage from soil pressure and rodent bites; offshore wind power employs steel wire armor combined with a water-barrier layer to resist compression and tension while preventing seawater penetration and corrosion of internal structures; charging station cables feature a non-armored, highly flexible design for ease of movement and bending.​

4.Outer Sheath: Weather-Resistant + Eco-Friendly, Extending Service Life

The outer sheath serves as the “ultimate protective barrier” for new energy cables, directly facing the challenges of the external environment. Mainstream materials include low-smoke, zero-halogen (LSZH) polyolefins, neoprene, and chlorinated polyethylene. These materials are not only resistant to UV radiation, salt spray, oil, and acids/alkalis—making them suitable for complex environments such as coastal areas, deserts, and plateaus—but also feature flame-retardant, self-extinguishing, low-smoke, and non-toxic properties. In the event of a fire, they minimize toxic fumes and smoke, thereby reducing the risk of secondary disasters.

More importantly, new energy cables have a service life of over 25 years, matching the lifespan of equipment such as photovoltaic modules and wind turbines. This eliminates the need for frequent replacements and significantly reduces long-term maintenance costs—an advantage that ordinary cables (with a lifespan of only 5–8 years) cannot match.

Four Dedicated Models for Key Applications, Each with Its Own Unique Strengths

Benefiting from the Belt and Road Initiative and overseas investment in mining projects, Chinese mining cable companies have obvious advantages in cost performance and stable supply capacity, and their export volume continues to rise.New energy cables are not one-size-fits-all products; instead, they are customized for specific applications, with each model offering targeted advantages. We can briefly categorize them as follows:​

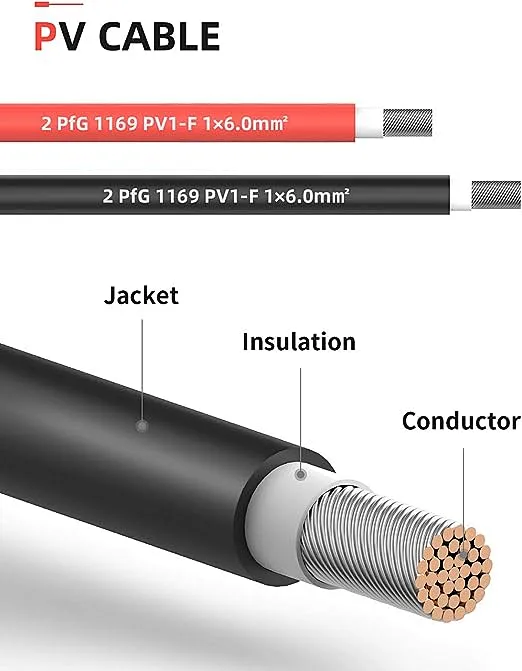

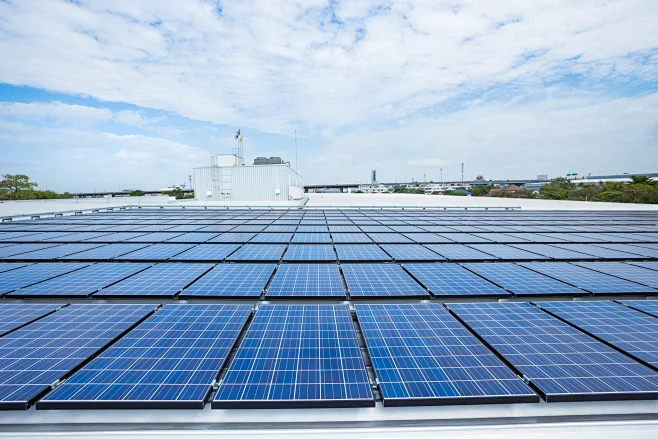

1.Photovoltaic Cables: The “Toughest” Outdoor Solution

The core requirements include UV resistance, resistance to high and low temperatures, and a service life of over 25 years. designed for 1500V DC voltage. Structurally, they feature tinned copper conductors, radiation-crosslinked polyolefin insulation, and a weather-resistant jacket, and are TÜV/UL certified. Whether facing the scorching sun of the desert, the bitter cold of the plateau, or the salt fog of coastal areas, they operate reliably. They are primarily used for wiring between PV modules and combiner boxes, as well as between inverters and grid connection points.

2.Wind Power Cables: Experts in “Torsion Resistance and Electromagnetic Interference (EMI) Protection”​

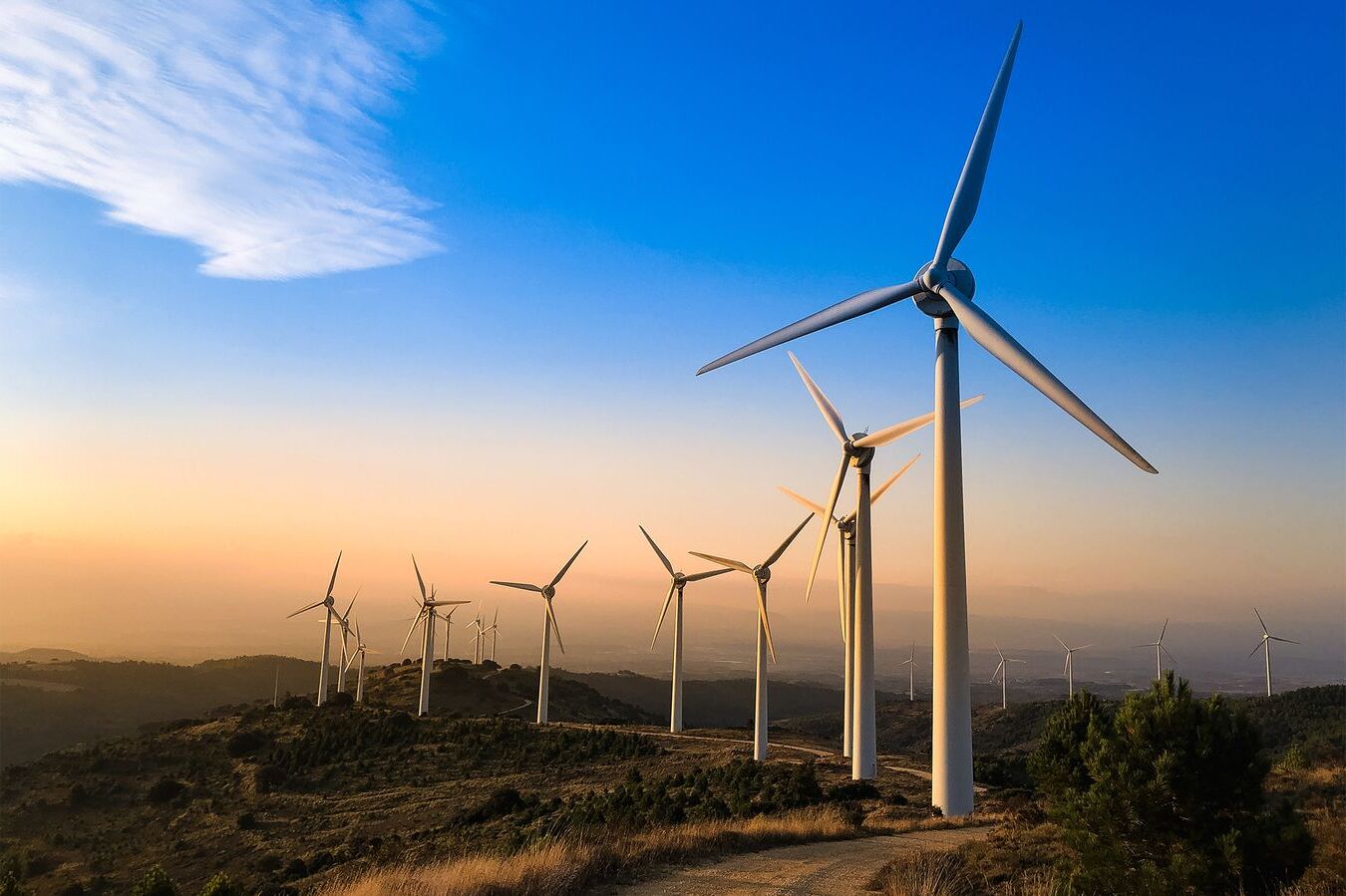

These are categorized into tower/nacelle cables and subsea/collection cables: Cables inside the tower must be torsion-resistant, oil-resistant, and double-shielded to withstand tens of thousands of torsional cycles caused by frequent turbine rotations; subsea collection cables utilize 33kV high-voltage XLPE with water-blocking properties and steel wire armor, offering resistance to water pressure and marine bio-corrosion to adapt to complex subsea environments.​

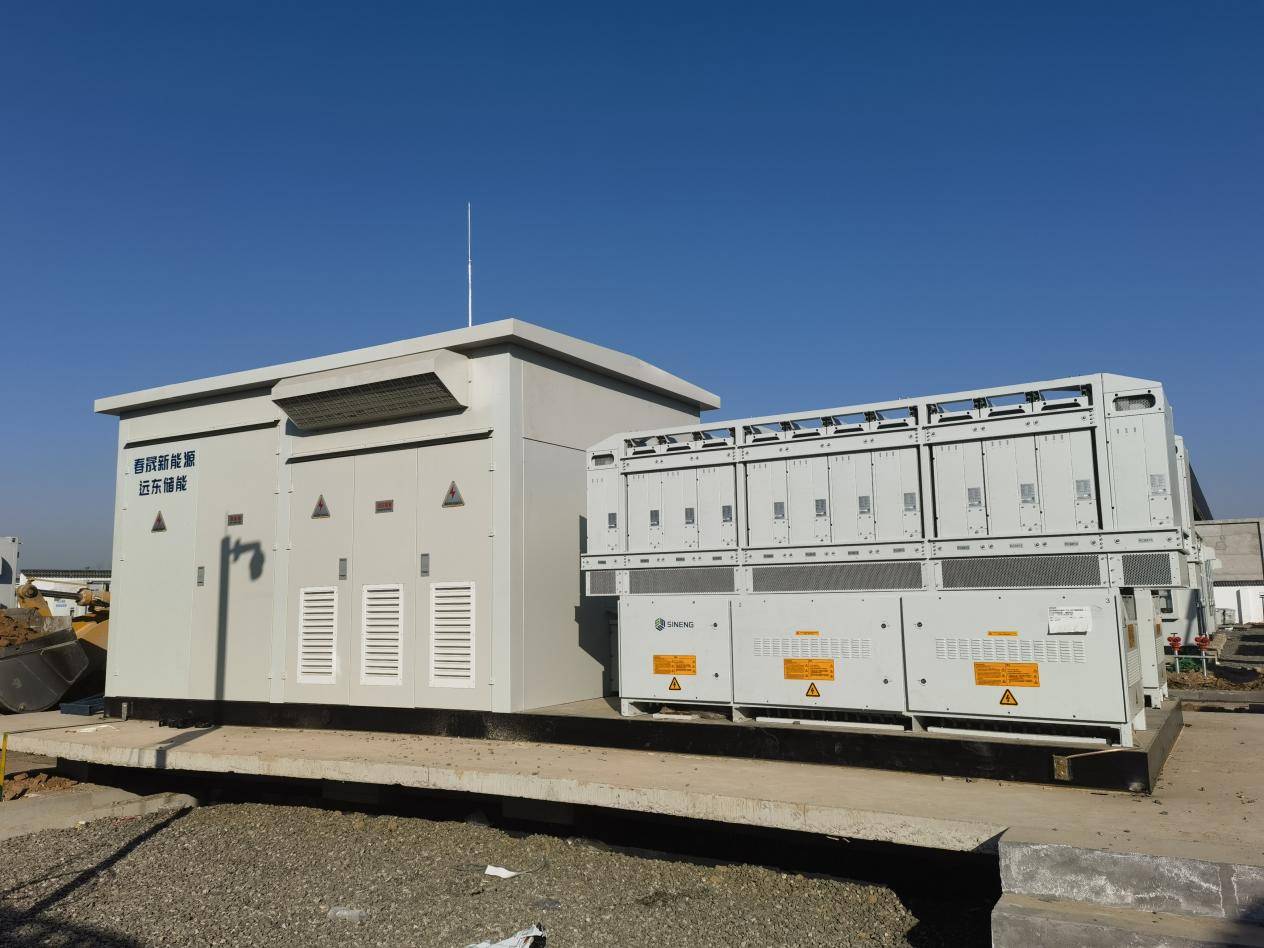

3.Energy Storage Cables: The “High-Voltage + High-Current” Solution

Designed for the charging and discharging scenarios of energy storage stations, DC-side cables can withstand 1000V/1500V high voltage, feature low resistance and low heat generation, and are suitable for high-current charging and discharging of battery clusters; AC-side cables emphasize flame-retardant, low-smoke, halogen-free properties and electromagnetic interference resistance to ensure stable operation of the PCS and grid connection, complying with the GB/T 39560 standard for energy storage.

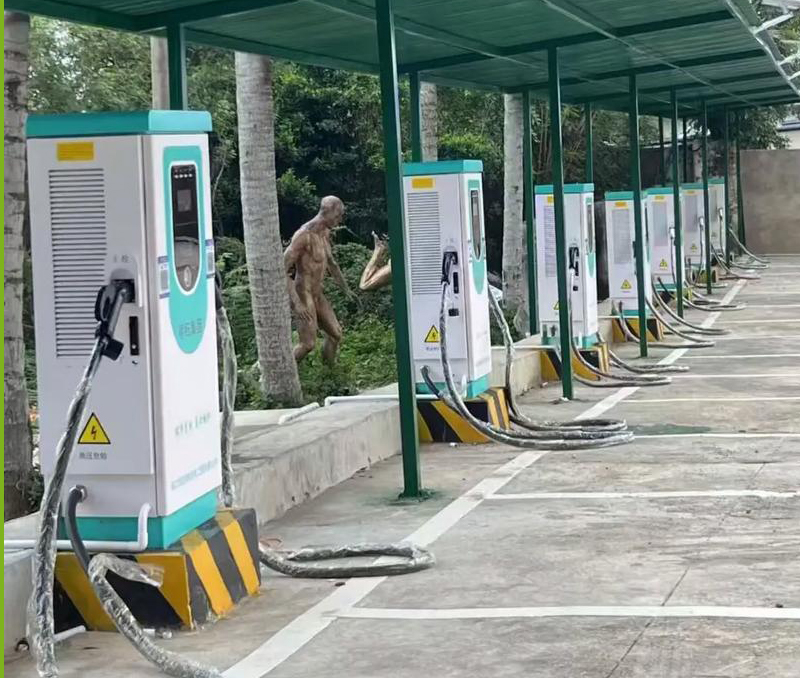

4.New Energy Vehicle/Charging Pile Cables: “High Flexibility + Safety + Fast Charging”

High-voltage power cables for new energy vehicles must withstand 600V/1000V high voltage and handle large-cross-section power transmission. They utilize double-layer shielding and low-smoke, halogen-free materials to ensure safety during vehicle operation. Charging station cables, on the other hand, prioritize high flexibility and durability to withstand repeated plugging, unplugging, and bending, making them suitable for both DC fast charging and AC slow charging scenarios. They also feature leak-proof and overheating protection functions.

Shopping Tips: 3 Ways to Avoid Pitfalls and Choose the Right New Energy Cables

For ordinary consumers or project buyers, choosing the right new energy cables is crucial. Keep these 3 points in mind to avoid pitfalls:​

1. Look for Certifications: Always choose products with CCC, TÜV, or UL certifications, especially for solar, wind power, and charging station applications. Certifications are the core guarantee that a product meets standards, helping you avoid non-compliant products.

2. Match the Application: Select cables specifically designed for your use case. For example, choose UV-resistant and high/low-temperature-resistant cables for outdoor solar installations; highly flexible, bend-resistant cables for charging stations; and water-blocking armored cables for offshore wind power. Do not blindly use generic cables.
3. Focus on Materials: Prioritize low-smoke, halogen-free, and highly flame-retardant materials, particularly in densely populated areas (such as residential charging stations and energy storage facilities), to minimize secondary hazards in the event of a fire. For conductors, prioritize high-purity oxygen-free copper to ensure transmission efficiency and service life.

As we advance toward the “dual carbon” goals, green energy is gradually replacing traditional energy sources. While new energy cables—the “lifelines” connecting various new energy devices—may seem unremarkable, they bear the crucial mission of the energy transition. Every technological upgrade in these cables underpins the efficient and safe development of green energy. In the future, as sectors like photovoltaics, wind power, and energy storage continue to evolve, these cables will continue to iterate toward greater efficiency, environmental friendliness, and durability.

The next time you see solar cables on rooftops, charging stations by the roadside, or wind turbines in the open fields, take a moment to appreciate these “lifelines of power” working quietly in the background. It is precisely these cables that are supporting our green energy future.
