HSYVV Communication Cable Comprehensive Analysis: From Structure to Application, Unlocking the Core Code of Industrial-Grade Network Transmission

In the digital age, whether it’s the office network in a high-rise building, the smart home systems in residential communities, factory automation controls, or video transmission for security systems, all rely on an “invisible link”—communication cables. These cables carry the high-speed flow of data, enabling seamless connectivity between various devices, and are an indispensable core component of modern infrastructure. Among the many types of communication cables, HSYVV cables have become the “workhorse” in structured cabling projects, thanks to their stable performance, wide applicability, and high cost-effectiveness. They are widely used in urban communications, local area network setups, low-voltage systems, and more.

Today, this blog will take you on a deep dive into the secrets of HSYVV cables. From decoding the model number and dissecting the structure to exploring performance advantages, application scenarios, selection tips, and usage precautions, this comprehensive guide will help you understand this “low-key yet powerful” communication cable, empowering you to make the right choice for your cabling projects.

Getting to Know HSYVV Cable: The “Identity Code” Behind the Model

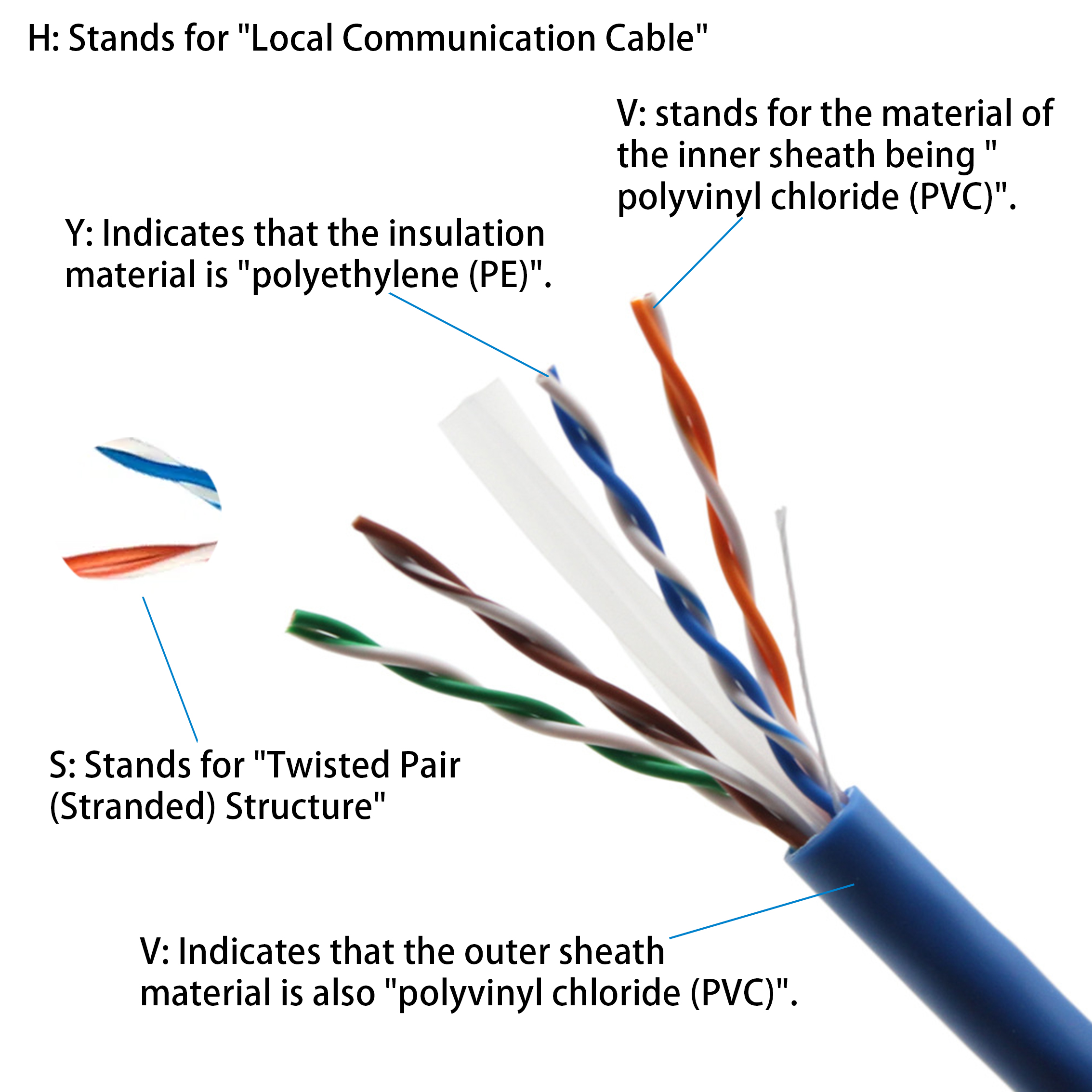

Many people may find the model “HSYVV” obscure and difficult to understand, but in reality, each letter corresponds to a core characteristic of the cable. By decoding the model, you can quickly grasp its basic positioning. HSYVV is the standard model for domestic communication cables in China, and its full name is “Copper Core Polyethylene Insulated Polyvinyl Chloride Sheathed Local Communication Cable.” The specific meaning of each letter is as follows:

• H: Stands for “City Communication Cable”, clarifying the cable’s primary use—mainly for fixed locations such as buildings, campuses, residential communities, etc., in intra-city communication and network cabling. It is distinct from long-distance communication cables and outdoor aerial communication cables.
• S: Stands for “Twisted Pair Structure”, which is the core technical feature of HSYVV cables and the key to their interference resistance. The advantages of this structure will be explained in detail later.
• Y: Indicates that the insulating layer is made of “Polyethylene (PE)”, typically high-density polyethylene (HDPE). This material is essential for ensuring stable high-frequency signal transmission and performs far better than ordinary insulating materials.
• V: Indicates that the inner sheath is made of “Polyvinyl Chloride (PVC)”. Its main functions are to secure the cable core, provide isolation and protection, and offer initial moisture resistance and cushioning for the internal conductors.
• V: Indicates that the outer sheath is also made of “Polyvinyl Chloride (PVC)”. Serving as the cable’s “outer armor”, it is responsible for resisting external environmental erosion and ensuring the cable’s service life.

Simply put, HSYVV cable is a type of twisted pair communication cable specifically designed for fixed wiring in urban areas. Its key advantages include stable signal transmission, reliable protection performance, and easy installation. Common specifications include Category 5e (Cat5e) and Category 6 (Cat6), which correspond to different transmission rate requirements. It is one of the most commonly used communication cables in integrated wiring systems today.

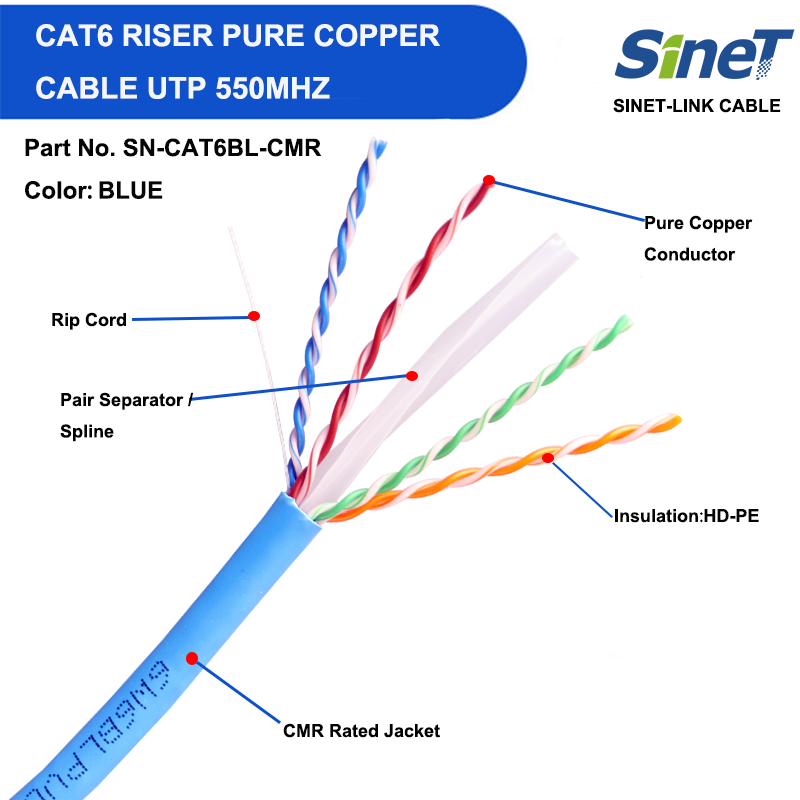

Layer-by-Layer Deconstruction: The Internal Structure and Ingenious Design of HSYVV Cables

The outstanding performance of HSYVV cables is attributed to their meticulously designed multi-layered structure. Each layer plays a unique role, and their coordinated cooperation ensures stable and secure signal transmission. Taking the most common 4-pair 8-core (Cat 5e/Cat 6) HSYVV cable as an example, we will dissect it layer by layer from the inside out, revealing its “inner workings” for you.

1.Core Transmission Layer: High-purity oxygen-free copper conductor (the “highway” for signals)

The conductor is the core of an HSYVV cable, akin to a “highway” for signal transmission, and its material and specifications directly determine the speed and stability of signal transmission. High-quality HSYVV cables exclusively use high-purity oxygen-free copper (OFC) for their conductors, with a purity of 99.99% or higher. This material offers three core advantages:

First, it boasts excellent conductivity and extremely low resistance, minimizing signal attenuation during transmission and ensuring data integrity, which is particularly advantageous in high-frequency transmission scenarios. Second, it has strong oxidation resistance, resisting oxidation and corrosion over long-term use, thereby preventing issues like broken conductors or poor contact and prolonging the cable’s lifespan. Finally, it offers high mechanical strength and good flexibility, making it less prone to breakage during installation, pulling, or bending, and well-suited for complex wiring environments.

It is worth noting that the conductors in HSYVV cables are typically solid copper conductors, with their diameters adhering to industry standards: 0.5mm for Cat5e HSYVV cables and 0.57mm for Cat6 HSYVV cables. Solid conductors, compared to stranded conductors, provide higher mechanical strength and more stable signal transmission, making them more suitable for fixed wiring scenarios (such as wall, ceiling, or conduit installations). In contrast, inferior HSYVV cables often use copper-clad aluminum, copper-clad steel, or even recycled copper as conductors. These not only exhibit poor conductivity and rapid signal attenuation but are also prone to oxidation and broken conductors, posing potential safety risks.

2.Insulation Protection Layer: HDPE (High-Density Polyethylene) Insulation (The “First Line of Defense” for Signals)

3.Anti-Interference Core: Differential Pitch Twisting Technology (The “Interference Barrier” for Signals)

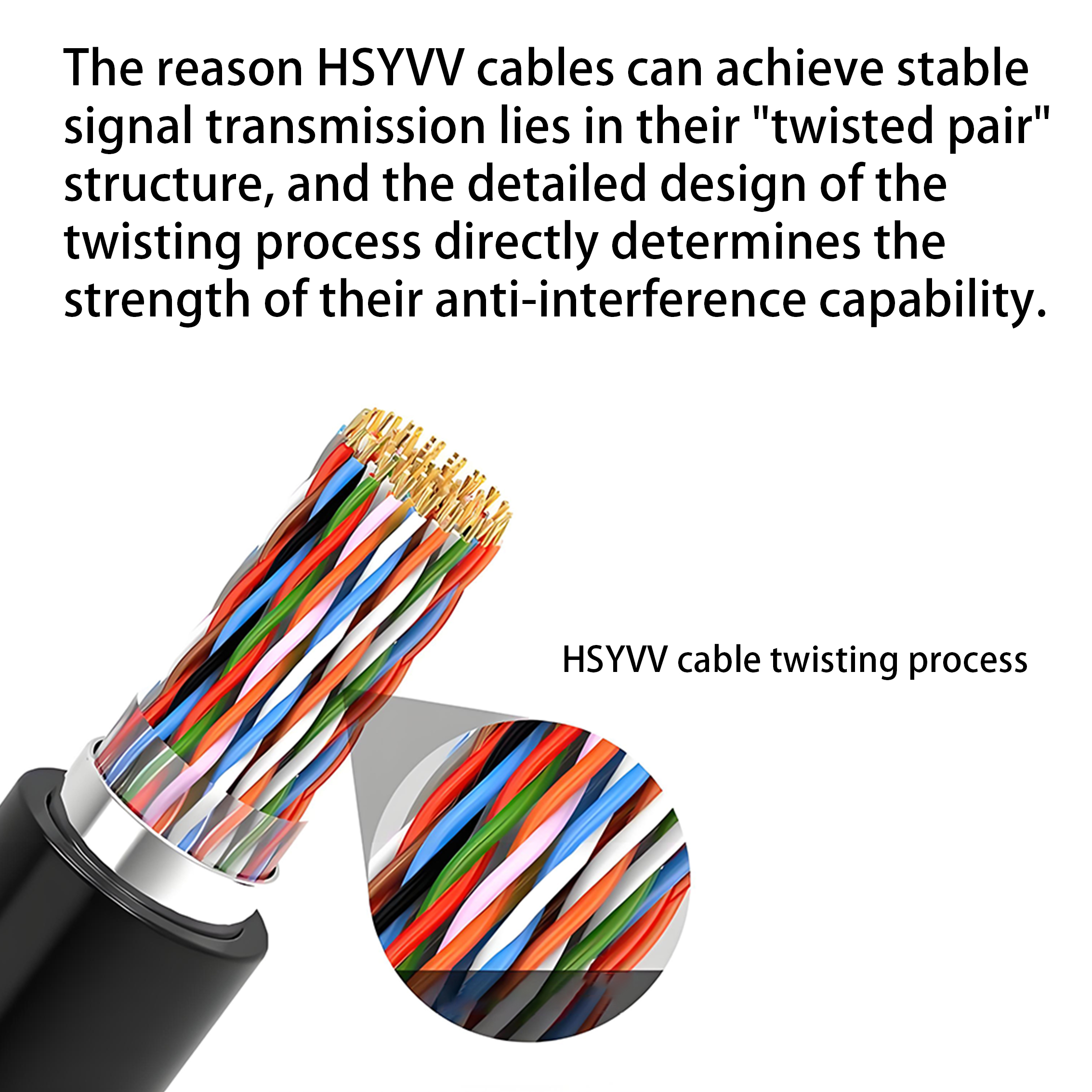

The reason HSYVV cables achieve stable signal transmission lies in their “twisted-pair” structure. The detailed design of the twisting process directly determines the strength of their anti-interference capability. Specifically, twisting involves winding two insulated conductors of different colors around each other with a specific pitch (i.e., the length per twist) to form a pair of wires.

Why is twisted pair technology used? Because when an electric current passes through a conductor, an electromagnetic field is generated, and adjacent wire cores are affected by this electromagnetic field, leading to signal distortion (known as “crosstalk”). By twisting the wires, the electromagnetic fields generated by the two wire cores cancel each other out, significantly reducing crosstalk between the pairs and ensuring stable signal transmission.

More importantly, the four wire pairs in HSYVV cables adopt a “different twist pitch” design—each pair has a unique twist pitch. This design prevents “synchronous crosstalk” that could occur if the pairs had the same twist pitch, further enhancing interference resistance. Especially in high-frequency transmission scenarios (such as gigabit networks and high-definition surveillance), it effectively prevents issues like signal lag and disconnections.

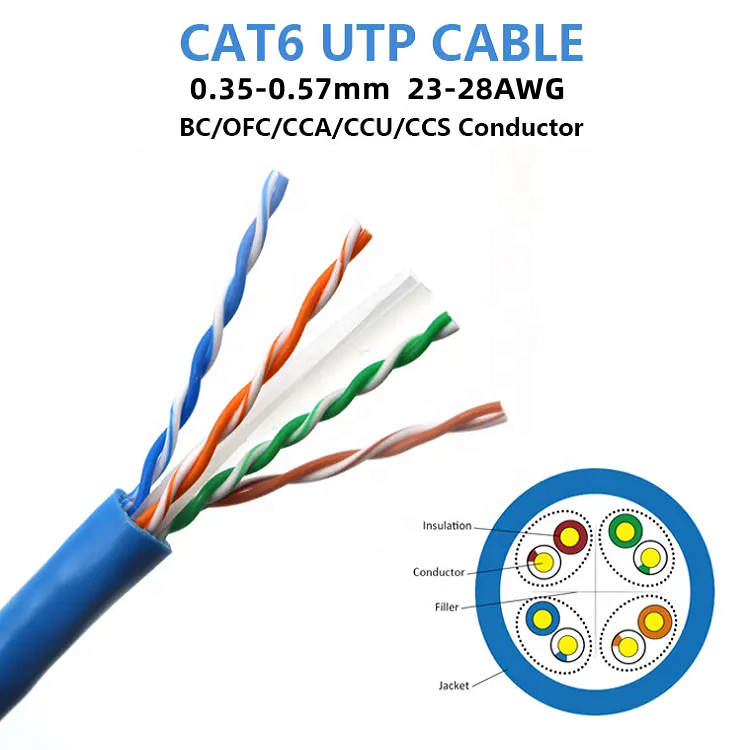

4.Structured Cabling Layer: Cable Assembly and Cross-Shaped Skeleton (Exclusive Upgrade for Category 6 Cables)

The process of organizing four twisted pairs of cores in an orderly manner is called “cabling.” The cabling process for high-quality HSYVV cables is highly rigorous. Through a rational arrangement, the internal structure of the cable is compact, and its external shape is rounded, preventing the cores from becoming loose or shifting while minimizing mutual interference between the pairs.

For Category 6 (Cat6) HSYVV cables, in order to support higher bandwidth (250MHz) and transmission rates (gigabit and above), a “cross-shaped plastic skeleton” is added at the center of the cable—this is one of the key differences between Cat6 and Cat5e cables. This cross-shaped skeleton isolates the four pairs of cores in four separate areas, preventing contact between the cores when the cable is squeezed or bent. This ensures that crosstalk between the pairs always meets the required standards, making it a critical structure for achieving high-speed data transmission.

In contrast, Cat5e HSYVV cables typically do not include a cross-shaped skeleton. Instead, structural stability is ensured through rational cabling arrangements, meeting the transmission requirements of 100 Mbps networks. This design offers higher cost-effectiveness and is suitable for standard cabling scenarios.

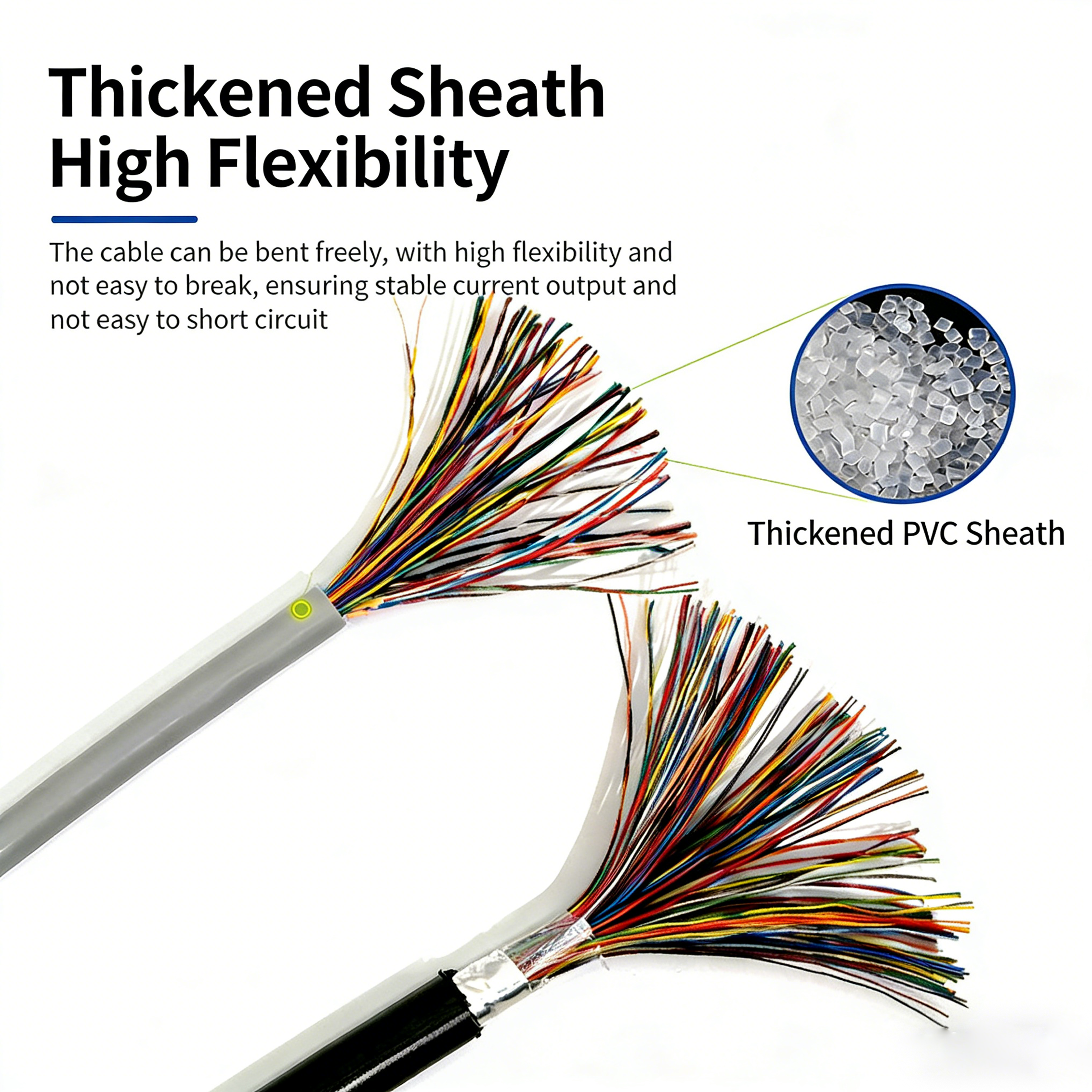

5.Outer Protective Layer: Double-layer PVC Sheath (The “Ultimate Armor” of the Cable)

The “Double V” design of the HSYVV cable, featuring a double-layer PVC sheath, serves as its “ultimate armor” against environmental erosion. It consists of an inner sheath and an outer sheath, each with distinct functions that work in tandem.

Inner Sheath: A layer of PVC sheath that fits tightly around the cable core, primarily designed to secure the internal wire structure, preventing the core from loosening or shifting during dragging or bending. It also provides initial moisture resistance and cushioning protection, isolating the wrapped layers from the outer sheath to avoid frictional aging.

Outer Sheath: The outermost layer is a high-strength PVC sheath, which serves as the “first line of defense” for the cable against external environmental factors. Its performance directly determines the cable’s service life and suitable application scenarios. The outer sheath of high-quality HSYVV cables is made of flame-retardant, anti-aging PVC material, boasting four core properties:

1. Abrasion and Tensile Resistance: It can withstand pulling and dragging during installation, as well as friction in daily use, minimizing the risk of damage.
2. Moisture and Corrosion Resistance: It effectively repels humidity, moisture in the air, and common chemical corrosion, making it suitable for damp or dusty environments.
3. Flame Retardancy: It is self-extinguishing in case of fire, preventing flame propagation and enhancing wiring safety.
4. UV Resistance: It resists aging and cracking under prolonged exposure to sunlight, making it ideal for semi-outdoor or well-lit spaces like suspended ceilings.

Summary: Complete structural sequence of HSYVV cable

From the inside out, the structural order of the HSYVV cable is: high-purity oxygen-free copper conductor → HDPE insulation layer → twisted pairs with different pitches → cable assembly (cross skeleton, exclusive to Cat.6) → PVC inner sheath → PVC outer sheath. Each layer is precisely designed to work in coordination, ensuring stable and secure signal transmission.

Three. Core Performance Advantages: Why is HSYVV the Preferred Choice for Engineering Cabling?

Among the many communication cables, HSYVV has become the “main force” in structured cabling due to its balanced and outstanding performance. It not only meets the transmission requirements of different scenarios but also offers high cost-effectiveness and convenience. The specific advantages are as follows:

1. Stable Signal Transmission, Low Attenuation, Minimal Crosstalk
   HSYVV cables use high-purity oxygen-free copper conductors, HDPE insulation, and twisting processes with varying pitches, ensuring minimal signal attenuation and crosstalk through three key measures. Cat5e HSYVV cables support 100 Mbps network transmission, while Cat6 HSYVV cables support gigabit network transmission, providing stable signal transmission rates without lags, disconnections, or signal distortion. They are suitable for various scenarios, including offices, surveillance systems, and smart homes. Whether for short-distance indoor wiring or medium-distance campus networking, they ensure data integrity and stability.
2. Strong Anti-Interference Capability, Adaptable to Complex Environments
   The twisting process is the core of HSYVV cables’ anti-interference performance. The design with varying twist pitches effectively cancels crosstalk between wire pairs and resists external electromagnetic interference (e.g., from motors, transformers, and inverters). For general environments like offices, homes, and residential areas, unshielded HSYVV cables are sufficient. For high-interference environments like factory floors or server rooms, shielded HSYVV cables (e.g., HSYVVP) with metal shielding are available, offering enhanced anti-interference capabilities and ensuring secure data transmission.
3. Double-Layer Protection, High Durability, Long Service Life
   The double-layer PVC sheath design provides excellent mechanical protection and environmental adaptability. The outer sheath is wear-resistant, tensile-resistant, moisture-proof, corrosion-resistant, flame-retardant, and anti-aging, while the inner sheath secures the cable core and provides cushioning protection. This dual-layer protection allows the cable to operate stably in complex environments such as suspended ceilings, conduits, walls, and semi-outdoor settings, with a service life of 15–20 years, significantly reducing long-term maintenance costs.
4. Easy Installation, Strong Compatibility
   HSYVV cables feature a round, flexible, and moderately lightweight design, making them easy to thread through conduits, pull, and bend. They are suitable for various complex wiring scenarios, such as wall trenches, ceiling wiring, and conduit installations, greatly improving installation efficiency. Additionally, their wiring sequence and specifications comply with international standards, ensuring full compatibility with mainstream RJ45 connectors, network panels, switches, routers, and other devices without the need for additional adapters, reducing installation complexity and costs.
5. Comprehensive Specifications, High Cost-Effectiveness, Adaptable to Multiple Scenarios
   HSYVV cables come in a wide range of specifications, with conductor counts ranging from 2 to 25 pairs. The common 4-pair, 8-conductor configurations (Cat5e and Cat6) meet most wiring needs. Wire gauges can be selected based on transmission distance and load requirements to suit different scenarios. Compared to other high-end communication cables, HSYVV cables offer an affordable price, stable performance, and excellent cost-effectiveness, making them the preferred choice for residential, commercial, and industrial wiring applications.

Application Scenarios: Where is the “Main Battlefield” for HSYVV Cables?

With stable performance and wide applicability, HSYVV cables are found in every corner of our lives and work, covering various fields such as residential, commercial, and industrial applications. Specific application scenarios are as follows:

1. Residential Communities and Home Decoration With the widespread adoption of smart homes, the demand for communication cables in home wiring is increasing. HSYVV cables have become the “standard configuration” for home decoration, primarily used for whole-house Wi-Fi coverage, IPTV signal transmission, network connections for smart home devices (such as smart door locks, cameras, and robot vacuum cleaners), and home telephone line wiring. Category 5e HSYVV cables are suitable for ordinary households, while Category 6 HSYVV cables are ideal for families seeking Gigabit networks and those with numerous smart home devices, ensuring stable network transmission and meeting daily usage needs.

2. Office and Mixed-use Office Buildings Office and commercial buildings are one of the primary application scenarios for HSYVV cables. Every network outlet, telephone, access control system, and surveillance camera in each office relies on HSYVV cables to connect to switches and servers in the equipment room, forming the local area network for the entire building. Given the high wiring density, long transmission distances, and complex electromagnetic environments in office buildings, the anti-interference capability and stability of HSYVV cables are fully utilized. This ensures smooth functioning of the office network, supporting multiple users simultaneously accessing the internet, file transfers, video conferences, and other requirements.

3. Security Surveillance Systems Whether in factory campuses, shopping mall stores, residential communities, or public areas such as roads, schools, and hospitals, the transmission of video signals in high-definition surveillance systems largely relies on HSYVV cables. Surveillance systems have extremely high demands for signal stability. The low attenuation and anti-interference performance of HSYVV cables ensure real-time transmission of high-definition video signals, preventing issues like video lag, blurriness, or disconnections. Additionally, their flame-retardant and moisture-proof properties make them suitable for complex environments such as outdoor areas and underground garages, ensuring the long-term stable operation of surveillance systems.

4. Industrial Automation Control In factory workshops, the signal transmission of industrial automation equipment (such as PLC controllers, sensors, frequency converters, and production line equipment) relies on stable and reliable communication cables. HSYVV cables (especially shielded types) can resist harsh environments in workshops, such as strong electromagnetic interference, humidity, and dust. This ensures stable signal coordination between equipment, prevents device malfunctions caused by signal loss, and enhances production efficiency and safety.

5. Public Institutions and Organizations Public institutions like schools, hospitals, libraries, and government office buildings commonly use HSYVV cables for internal network cabling, telephone cabling, surveillance cabling, and access control cabling. These scenarios have high requirements for cabling safety and stability. The flame-retardant, durable, and anti-interference performance of HSYVV cables meets the needs of public institutions. Additionally, their diverse specifications allow for flexible selection based on the requirements of different areas.

Selection and Usage Notes: Avoid Missteps, Unleash the Cable’s Best Performance

Although HSYVV cables offer stable performance and high cost-effectiveness, many people tend to fall into misconceptions during the selection and use process, which can prevent the cables from performing to their full potential and even create safety risks. Below, we’ve compiled key points for selection and usage to help you avoid these pitfalls:

1.Selection Precautions

• Check the Material: Prioritize HSYVV cables with high-purity oxygen-free copper conductors. Inspect the cross-section: high-quality copper conductors have a bright, uniform color with no blackening, oxidation, or impurities. The insulation layer should be made of HDPE material, which feels smooth, flexible, and resistant to cracking. The outer sheath should be made of flame-retardant PVC material with good gloss, abrasion resistance, and durability. Avoid cables with copper-clad aluminum, copper-clad steel, or recycled copper conductors.
• Check the Specifications: Choose the appropriate specification based on the usage scenario and transmission requirements. For typical homes and small offices, Category 5e (Cat5e) with 4 pairs (8 cores) is sufficient. For Gigabit networks and high-definition surveillance applications, choose Category 6 (Cat6) with 4 pairs (8 cores). For longer transmission distances (over 100 meters) or high-load scenarios, consider cables with a larger wire gauge. Also, ensure the cable length and core count are as specified to avoid short lengths or missing cores.
• Check the Certifications: High-quality HSYVV cables are typically certified by national standards (e.g., 3C certification). The packaging should clearly display certification marks, model, specifications, manufacturer, production date, etc. Verify this information carefully to avoid uncertified or unlabeled inferior products.
• Check the Brand: Choose reputable, established brands. Reputable brands adhere to strict production standards, ensuring better quality and reliable after-sales service in case of issues.

2.Usage Precautions

• Installation Environment: HSYVV cables are primarily designed for indoor fixed installations. Avoid prolonged exposure to direct sunlight, rain, or burial underground (for underground installation, use dedicated direct burial cables). Avoid installing cables in high-temperature, humid, oily, or environments with strong electromagnetic interference. For such conditions, use shielded or specially protected cables.
• Installation Standards: During installation, avoid excessive pulling or bending of the cable. The bending radius should not be too small (generally not less than 8-10 times the cable diameter) to prevent conductor breakage or insulation damage. When threading cables through conduits, avoid contact with sharp objects to prevent sheath abrasion. During termination, follow standard wiring sequences to avoid incorrect connections that could affect signal transmission.
• Load Management: Avoid exceeding the cable’s rated load to prevent overheating, aging, and potential safety hazards. Also, prevent the cable from being under constant pressure or crushing, which can loosen or displace the conductors.
• Maintenance: Regularly inspect the cable’s appearance for any damage, aging, or wear, and replace as needed. For cables installed in ceilings or conduits, conduct periodic checks to prevent damage from moisture, rodent bites, or other environmental factors.

Conclusion: HSYVV Cable, Unlocking the “Stability Code” of Communication Transmission

From a structural perspective, each layer of the HSYVV cable is designed around the principles of “stable transmission and reliable protection.” From the high-purity oxygen-free copper conductor and HDPE insulation layer to the twisted-pair process with different lay lengths and the double-layer PVC sheath, each layer is meticulously engineered to work in harmony, forming a well-balanced and high-performance communication cable.

In terms of application, the HSYVV cable serves as a versatile all-rounder in structured cabling projects, covering a wide range of scenarios, including residential, commercial, and industrial environments.

When it comes to cost-effectiveness, it stands out as the preferred choice for most cabling scenarios, thanks to its affordable price, stable performance, and long service life.

In today’s rapidly advancing digital era, the importance of communication cables is increasingly evident. With its unique advantages, the HSYVV cable acts as an “invisible backbone” that connects devices and transmits data reliably.

Through this blog, we hope to provide a comprehensive understanding of the HSYVV cable, helping users avoid common pitfalls during selection and usage, maximize its optimal performance, and ensure stable and reliable communication support for all types of cabling projects.
