Comprehensive Analysis of BVVB Cable: The “Hidden Champion” and Practical Choice for Home Surface Wiring

In the vast project of home renovation, electrical circuit modification remains a top priority. The quality of hidden work directly affects the safety and convenience of living for the next decade or even decades. When we focus on wires and cables, we encounter a string of letters and numbers: BV, BVR, BVV, RVV… Each has its own mission and its own stage.

Today, we delve into a model with an irreplaceable position in the field of surface wiring—BVVB cable. Just one letter different from the common BVV, it possesses a completely different form and application scenario because of that final “B.” It may not be flashy, but with its solid structure and unique advantages, it has become the “hidden champion” of surface wiring in countless homes, shops, and buildings.

Chapter 1: Decoding “BVVB” — Understanding a Wire’s Complete Identity from Its Model

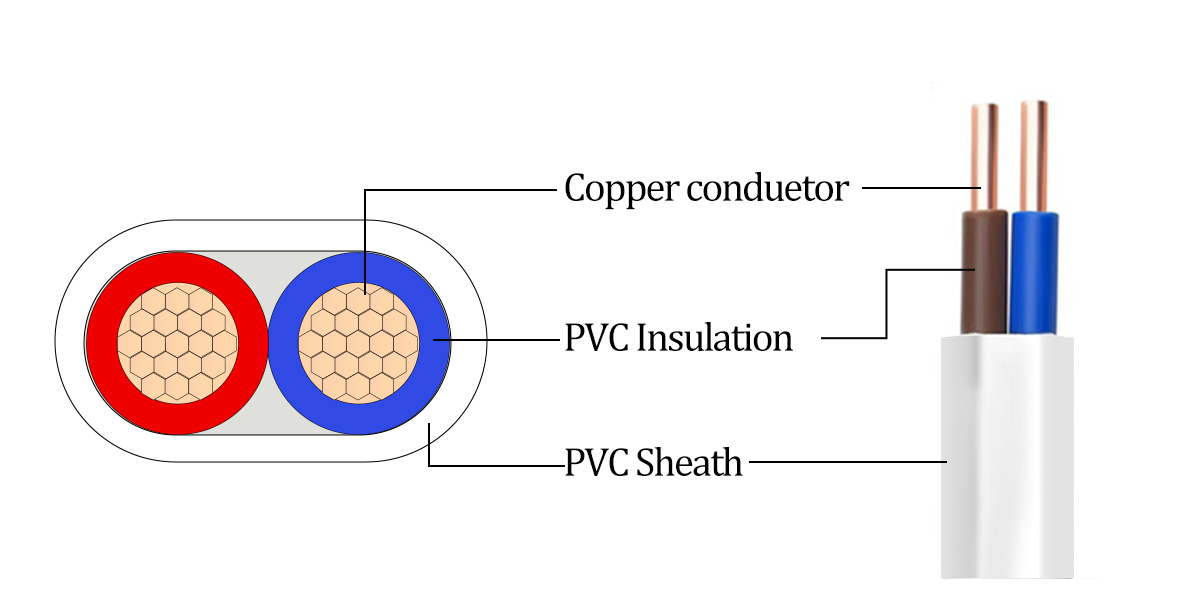

The model naming of wires and cables is not random; it’s a precise coding system where each letter represents a core feature of the product. To truly understand BVVB, we need to decipher its name letter by letter:

• The Letter “B”: This is the pinyin initial for “布电线” (Building Wire). It defines the product’s basic identity—an insulated wire for fixed installation in electrical equipment, instruments, and lighting circuits. It is not a flexible cable for mobile use (like RVV) nor a power cable for high-current transmission (like YJV). This “B” tells us its arena is fixed installation within buildings.
• The First Letter “V”: Represents Polyvinyl Chloride (PVC) Insulation. This is the first layer of “protective clothing” directly wrapped around the copper conductor. PVC material offers good electrical insulation, corrosion resistance, and mechanical strength at a relatively economical cost, making it one of the most widely used insulation materials. This insulation layer determines the basic safety of the wire, preventing current from “straying.”
• The Second Letter “V”: Represents the PVC Sheath. This is the core feature distinguishing sheathed wires from ordinary insulated wires. This additional sheath acts like another layer of “armor,” providing stronger mechanical and environmental protection. The dual-layer PVC structure forms a “double protection” safety system.
• The Final Letter “B”: Stands for Flat (parallel). This is the most critical and identifiable letter in the model, and the fundamental difference between BVVB and BVV. It means the finished cable is flat, with the internal insulated cores arranged in parallel, rather than twisted or circularly arranged.

Therefore, the full name of BVVB cable is: Copper-core PVC-insulated PVC-sheathed Flat Cable.

For a more intuitive understanding, we can use a vivid analogy:

• BV Wire: Like a bare wire wrapped in only one layer of plastic.
• BVV Cable: Like a BV wire extruded with an additional round sheath, forming a cylindrical shape.
• BVVB Cable: Like two or three BV wires glued side-by-side, then uniformly wrapped in a flat sheath, finally pressed into a flat “ribbon cable.”

This seemingly simple “flat” characteristic determines BVVB’s unique positioning in terms of installation methods, application scenarios, and construction efficiency.

Chapter 2: The “Flat” Advantage — Where Does BVVB’s Core Strength Come From?

This seemingly minor “flat” structural feature actually gives BVVB a series of irreplaceable practical advantages in surface wiring scenarios. Let’s break them down:

1. Naturally Suited for Surface Mounting: Flush with the Wall, Neat and Tidy

While concealed wiring (inside walls or under floors) is aesthetically pleasing, it is not always practical or economical in many scenarios:

• Old house renovations where you don’t want to cut grooves in existing decor.
• Adding sockets or circuits after decoration is complete.
• Rapid wiring in non-residential places like warehouses, workshops, or shops.

In these cases, surface mounting becomes the most direct choice. BVVB’s flat shape allows it to fit perfectly against the wall, ceiling, or floor surface, making the wiring look neat and orderly. Visually, it appears as a “straight line” on the wall, much less obtrusive than round cables, significantly enhancing aesthetics.

2. Saves Material and Labor: No Additional Conduit Needed, Boosts Efficiency

With its own sheath, BVVB generally does not require additional conduits or trunking during surface mounting. Installers simply fix it directly to the wall surface using cable clips or clamps. This seemingly simple difference brings considerable benefits in actual projects:

• Saves material costs: Eliminates the need for PVC conduits or metal trunking.
• Saves labor costs: Eliminates the tedious steps of threading, bending, and cutting conduits, significantly speeding up installation.
• Reduces space occupation: Flat cables take up less space than the “conduit + cable” combination.

This is in stark contrast to BV wire, which must be concealed in conduits. If used for surface mounting, BV wire is not only unsightly but also vulnerable to mechanical damage due to its single insulation layer—a safety hazard. BVVB, however, with its built-in sheath, inherently has the “qualifications” for surface mounting.

3. Double Protection, Safe and Reliable

Although mainly used for indoor surface mounting, BVVB’s “insulation + sheath” dual-layer structure provides solid protection for the circuit. The sheath not only guards against dust and moisture but also effectively resists minor friction, bumps, and compression in daily use, reducing the risk of leakage or short circuits caused by insulation damage.

Chapter 3: BVV vs. BVVB — One Letter Difference, Different Positioning

Many people are often confused by BVV and BVVB: they look similar, so what exactly is the difference? Although only one letter apart, their structure and focus are distinct. A clear comparison helps:

In simple terms:

• If you need stronger sheath protection and have less concern about surface mounting aesthetics, BVV is a good choice.
• If you prioritize wall conformity, aesthetics, and installation efficiency for surface mounting, BVVB is the “specialist.”

A common analogy: if wires were “water hoses,” BVV would be a round hose, while BVVB would be a flat fire hose—the latter is inherently designed to lie flat on the ground or against a wall.

Chapter 4: Main Application Scenarios — Where Is BVVB Used?

Given the above characteristics, BVVB’s role in homes and similar settings is very clear and focused. Its core battlefield is indoor surface-mounted fixed wiring. Specifically, the most common applications include:

1. Surface Wiring Needs in Home Renovation

• Old House Renovations: When you don’t want to or can’t cut grooves in walls, BVVB provides a way to run wires directly along the wall surface.
• Adding Sockets or Circuits: After renovation is complete, if you need an extra power outlet or a dedicated air conditioner line, BVVB is the most convenient solution.
• Damp Areas like Kitchens and Bathrooms: With proper moisture-proof measures, it can be used for surface circuits in these areas (compliance with regulations is still required).

2. Commercial and Office Spaces

• Permanent or temporary surface wiring in shops, showrooms, and offices.
• Situations requiring rapid deployment of electrical circuits, such as exhibition booths or temporary counters.

3. Industrial and Storage Environments

• In warehouses, workshops, garages, and other places where aesthetics are less critical, for lighting circuits or fixed power supply to small equipment.
• Internal or external fixed wiring for instruments, small machine tools, etc.

4. Power Supply Cords for Appliances
Many household appliances, power tools, and testing instruments use BVVB for their power leads because the flat cable body sits more neatly against the device surface.

Chapter 5: Key Parameters and Standards — Quality Backed by Data

Understanding a product ultimately comes down to data and standards. For BVVB cable, the following core parameters and applicable standards provide objective references for selection and use.

1. Rated Voltage
Two voltage ratings are most common:

• 300/500V: Suitable for general lighting and household appliance circuits.
• 450/750V: Suitable for fixed wiring at higher voltage levels, such as high-power appliances or industrial equipment.

2. Long-term Conductor Operating Temperature
Typically 70℃. This means under normal load, the copper conductor’s temperature should not exceed this value to avoid accelerated insulation aging and shortened service life.

3. Common Core Counts and Specifications

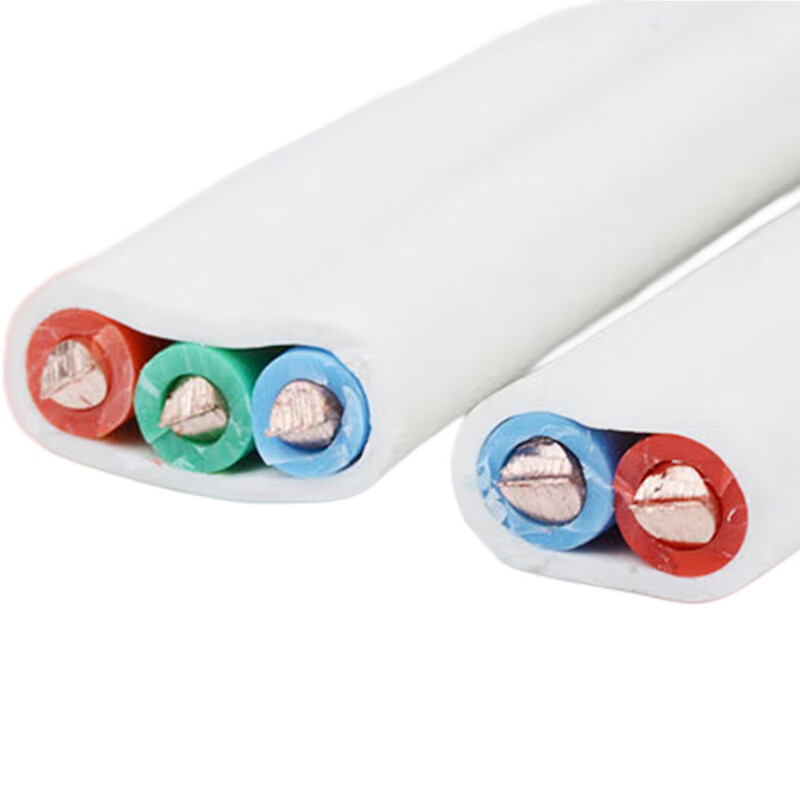

• Core Count: 2-core and 3-core are most common, corresponding to single-phase or three-phase circuit needs. Some 4-core products exist but are less common in residential use.
• Conductor Cross-Sectional Area: Common sizes include 1.5mm², 2.5mm², 4mm², 6mm², etc.

4. Applicable Standards
In the Chinese market, BVVB cable is primarily produced and inspected according to:

• GB/T 5023 series standards (“PVC Insulated Cables for Rated Voltages up to and including 450/750V”)
• JB/T 8734 industry standard (“PVC Insulated Cables, Wires and Flexible Cords for Rated Voltages up to and including 450/750V”)

When purchasing, check the product certificate or cable sheath for the standard number—a basic indicator of compliance.

Chapter 6: Practical Buying Guide — How to Select and Use BVVB Well?

Beyond theoretical knowledge, some practical “hands-on tips” help make the right decisions during procurement and installation.

1. Five Steps to Choose High-Quality BVVB

• Inspect Appearance: Quality cable should have uniform sheath color, smooth and round finish, free from particles, bubbles, or mechanical damage. Markings should be clear, including model, specification, voltage rating, and manufacturer.
• Smell Test: Qualified PVC material should have no pungent odor. A strong or strange smell may indicate poor-quality or recycled materials.
• Feel Test: When bending, the cable should feel resilient and firm. The sheath should be tightly wrapped and not easily peeled off. A loose or easily deformed sheath indicates poor quality.
• Check Dimensions: Copper core diameter and sheath thickness should meet standards. You can measure with calipers or compare with specifications from reputable sources.
• Trusted Channels: Buy from reputable building material markets, brand stores, or authorized online channels, and request invoices—the most effective way to avoid counterfeits.

2. Important Usage Notes

• Cannot be directly buried in walls or underground: Although sheathed, BVVB is not an armored cable and lacks the ability to withstand soil pressure or concrete pouring. For concealed installation, conduits are still required.
• Caution in Damp Environments: While it performs well in dry indoor conditions, in long-term wet or directly splashed areas, dedicated waterproof cables or additional protective measures are needed.
• Avoid Excessive Bending: While BVVB has some flexibility, excessive bending can damage the sheath or internal insulation.

3. BVVB vs. RVVB — Both Flat Sheathed, What’s the Difference?
Sometimes you may encounter RVVB (Copper-core PVC-insulated PVC-sheathed flat flexible cable). They look similar, but the core difference lies in the conductor:

• BVVB: Has a solid conductor (single thicker copper wire), making the cable rigid and holding its shape after bending.
• RVVB: Has a flexible conductor (many fine copper strands twisted together), making it soft and suitable for situations requiring slight movement or bending.

Therefore, choose BVVB for fixed surface mounting and RVVB for movable connections.

Chapter 7: Future Perspective — The “Flat Tough Guy” Standing Firm Amidst Change

With the evolution of building electrical technology, new products like Low Smoke Zero Halogen (LSZH) cables, flame-retardant and fire-resistant cables, and smart wiring systems continue to emerge, and industry standards are constantly updated. However, in the vast market of civil and general commercial construction, BVVB cable maintains a solid position, thanks to its mature technology, stable performance, economic cost, and irreplaceable convenience for surface mounting.

It is like a quiet but reliable craftsman, solving the practical problem of “how to run exposed wires” in countless scenarios in the most direct and efficient way. It doesn’t chase fancy concepts but has earned long-term market trust with its solid “flat dual-layer structure.”

Next time you see a neat, flat wire running along a wall, perhaps take a closer look—it might just be BVVB, the low-key, practical “flat tough guy” born for surface mounting in the world of building electrical systems.
