Structure
Description
Application
Ships, Offshore Platforms, Yachts, and Marine Equipment
Main Characteristics
- Non-armored
- Flame retardant
- Low Smoke Zero Halogen
- Non-armored
- Fire resistant
- Low Smoke Zero Halogen
- Flexible
- Non-armored
- Flame retardant
- Low Smoke Zero Halogen
- Flexible
- Non-armored
- Flame retardant
- Low Smoke Zero Halogen
- Shielded/Armored
- Flame retardant
- Low Smoke Zero Halogen
- GSWB/Armored
- Fire resistant
- Flame retardant
- Low Smoke Zero Halogen

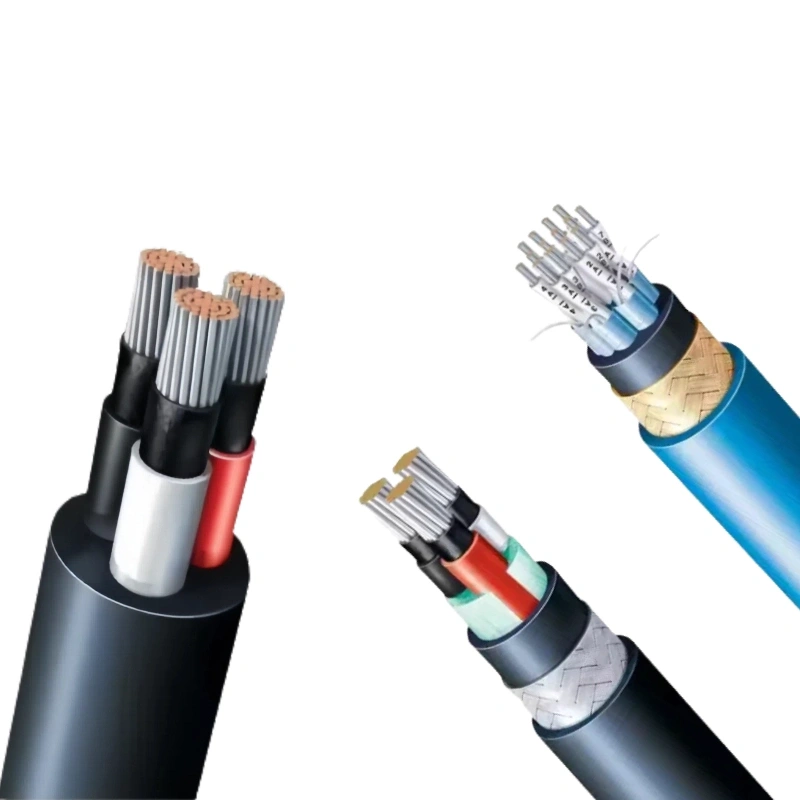

Marine Power Cable
High-Quality, Durable, and Certified Cables for Marine and Offshore Applications
Product Overview
* Product Name: Marine Power Cable
* Application: Ships, Offshore Platforms, Yachts, and Marine Equipment
* Certifications: IEC 60092, IEEE 1580, UL 1309, ABS, DNV-GL, Lloyd’s Register
* Voltage Rating: 600/1000V, 1.8/3kV, 3.6/6kV (Customizable)
* Temperature Range: -40°C to +90°C (Wide Operating Range)
* Product Name: Marine Power Cable
* Application: Ships, Offshore Platforms, Yachts, and Marine Equipment
* Certifications: IEC 60092, IEEE 1580, UL 1309, ABS, DNV-GL, Lloyd’s Register
* Voltage Rating: 600/1000V, 1.8/3kV, 3.6/6kV (Customizable)
* Temperature Range: -40°C to +90°C (Wide Operating Range)
Key Features
1. Conductor Material
* Tinned Copper: High conductivity, corrosion-resistant, and ideal for harsh marine environments.
2. Insulation Material
* XLPE (Cross-Linked Polyethylene): Excellent thermal stability, high dielectric strength, and resistance to abrasion.
* EPR (Ethylene Propylene Rubber): Flexible, flame-retardant, and suitable for high-temperature areas.
3. Sheath Material
* PVC (Polyvinyl Chloride): Durable, oil-resistant, and cost-effective.
* LSZH (Low Smoke Zero Halogen): Fire-safe, low toxicity, and ideal for confined spaces.
4. Armor (Optional)
* Steel Wire Armor (SWA): Provides mechanical protection for heavy-duty applications.
* Copper Tape Armor (CTA): Enhanced electromagnetic shielding.
1. Conductor Material
* Tinned Copper: High conductivity, corrosion-resistant, and ideal for harsh marine environments.
2. Insulation Material
* XLPE (Cross-Linked Polyethylene): Excellent thermal stability, high dielectric strength, and resistance to abrasion.
* EPR (Ethylene Propylene Rubber): Flexible, flame-retardant, and suitable for high-temperature areas.
3. Sheath Material
* PVC (Polyvinyl Chloride): Durable, oil-resistant, and cost-effective.
* LSZH (Low Smoke Zero Halogen): Fire-safe, low toxicity, and ideal for confined spaces.
4. Armor (Optional)
* Steel Wire Armor (SWA): Provides mechanical protection for heavy-duty applications.
* Copper Tape Armor (CTA): Enhanced electromagnetic shielding.
Technical Specifications
1. Voltage Rating
* Low Voltage: 600/1000V (Standard)
* Medium Voltage: 1.8/3kV, 3.6/6kV (Customizable)
2. Temperature Range
* Operating Temperature: -40°C to +90°C
* Short-Circuit Rating: Up to 250°C
* Low Voltage: 600/1000V (Standard)
* Medium Voltage: 1.8/3kV, 3.6/6kV (Customizable)
2. Temperature Range
* Operating Temperature: -40°C to +90°C
* Short-Circuit Rating: Up to 250°C
3. Flame Retardancy
* IEC 60332: Flame-retardant and self-extinguishing.
* IEC 60754: Halogen-free, low toxicity.
4. Environmental Resistance
* Waterproof: IP68 rating for submerged applications.
* UV Resistant: Suitable for outdoor and exposed areas.
* Oil Resistant: Withstands oil and chemical exposure.
* IEC 60332: Flame-retardant and self-extinguishing.
* IEC 60754: Halogen-free, low toxicity.
4. Environmental Resistance
* Waterproof: IP68 rating for submerged applications.
* UV Resistant: Suitable for outdoor and exposed areas.
* Oil Resistant: Withstands oil and chemical exposure.
Certifications and Standards
1. International Standards
* IEC 60092-350/360: Marine shipboard cables.
* IEEE 1580: Marine cable and shipboard power systems.
* IEC 60092-350/360: Marine shipboard cables.
* IEEE 1580: Marine cable and shipboard power systems.
* UL 1309: Marine shipboard cable standard.
Marine Cable – Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | Marine-Grade Shipboard Cable (Tinned Copper) |
| Model Number | CE/NEK 606/J1S C 3410 (Customizable) |
| Conductor Material | Tinned Copper (High Corrosion Resistance) |
| Insulation Material | XLPE (Cross-Linked Polyethylene) or PVC(Optional) |
| Jacket Material | PVC/LSZH (Low Smoke Zero Halogen)/CPE(Chlorinated Polyethylene) |
| Rated Voltage | 450/750V, 600/1000v (Higher Voltage Available) |
| Temperature Range | -40℃ to +90℃(Standard)/-60℃ to +105℃(High-Temp Option) |
| Shielding | Optional: Copper Braid, Aluminum Foil, or CompositeShielding |
| Conductor Size | 1.5mm²to 300mm²(Single/Multicore, Stranded) |
| Color Coding | Standard (Black/Red/Blue) or Custom (Per lEC60446) |
| Standards Compliance | IEC 60092-350/353,CE,ABS, DNV-GL, BV, LR, ROHS |
| Flame Retardant Grade | IEC 60332-3 (Fire-Resistant),lEC 61034 (LoWSmoke) |
| Oil & Chemical Resistance | Yes (ls0 6722 Tested) |
| Application | Shipboard Wiring, Offshore Platforms, MarineEquipment, Subsea Systems |
| Packing | 100m/500m Reel, Wooden Drum, or Custom Lengths |
| MOQ | 500 Meters (Negotiable for Bulk Orders) |
| Lead Time | 15-30 Days (Stock Available for Common Sizes) |
