Structure
Description
Application
Overhead power cables are designed for aerial installation, offering high mechanical strength and weather resistance for long-distance transmission lines.
Main Characteristics
National Standards:
Our Low Voltage ABC are manufactured in accordance with a range of national standards – British standard BS7870, French standard NF C33 209, Australasian standard AS/NZS 3560 Part 1, and IEC standards IEC 60502-1, TNB Specification, and HD 626 S1. They have a voltage rating of 0.6/1kV. With the insulation it also meets Class II according to IEC 61140 in protecting against electric shock. Aerial Bundle Cables have an operating temperature range of -40oC to +80oC and can be installed in temperatures as low as -20oC. These ABC are unscreened and without an additional outer sheath.

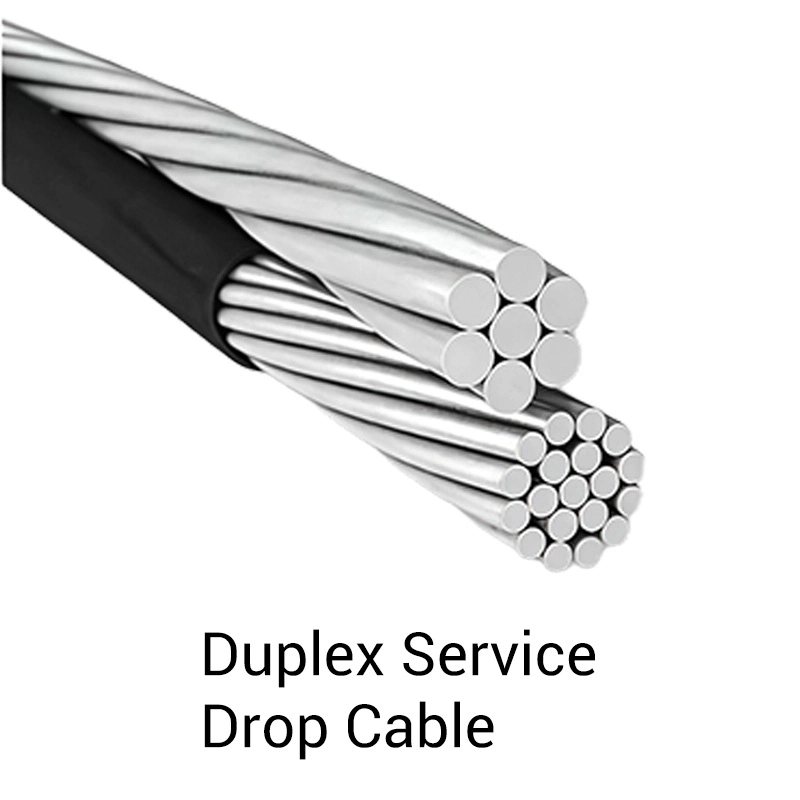

Duplex Cable:
The duplex service drop cable is a two core conductor i.e. it has two conductors; an insulated conductor for phase line and a bare conductor for neutral line. It is used for supplying a single phase power to the building.

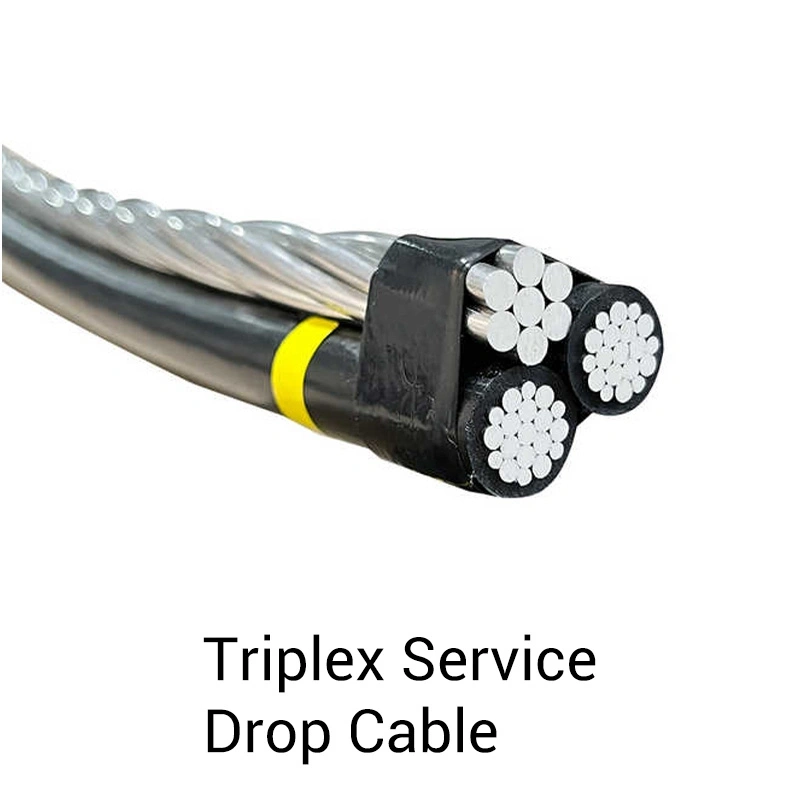

Triplex Cable:
The Triplex service drop cable is a three core conductor. It has two insulated conductors for phase line and a bare conductor for neutral line.

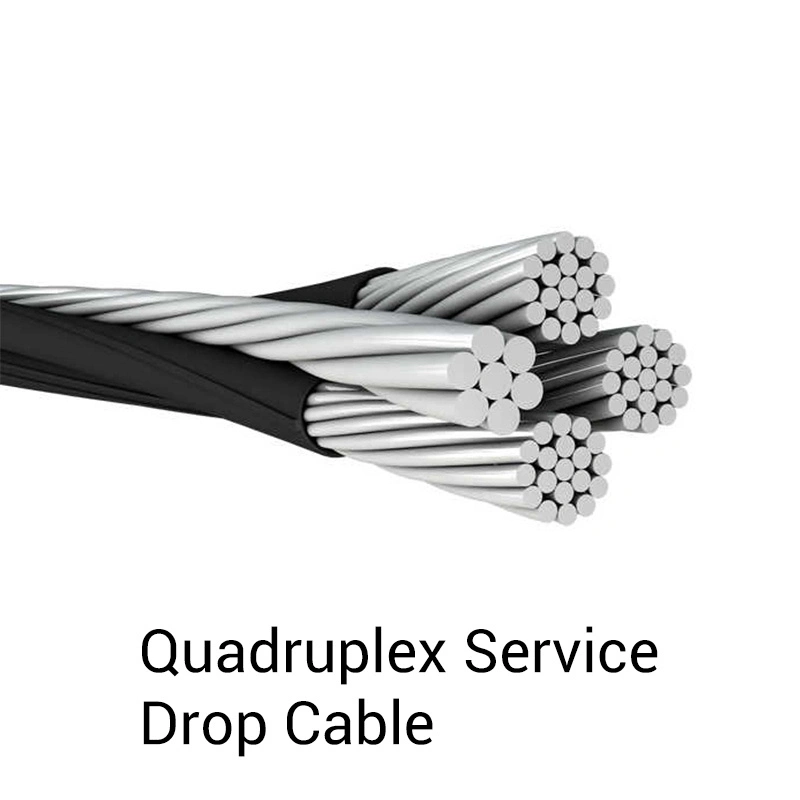

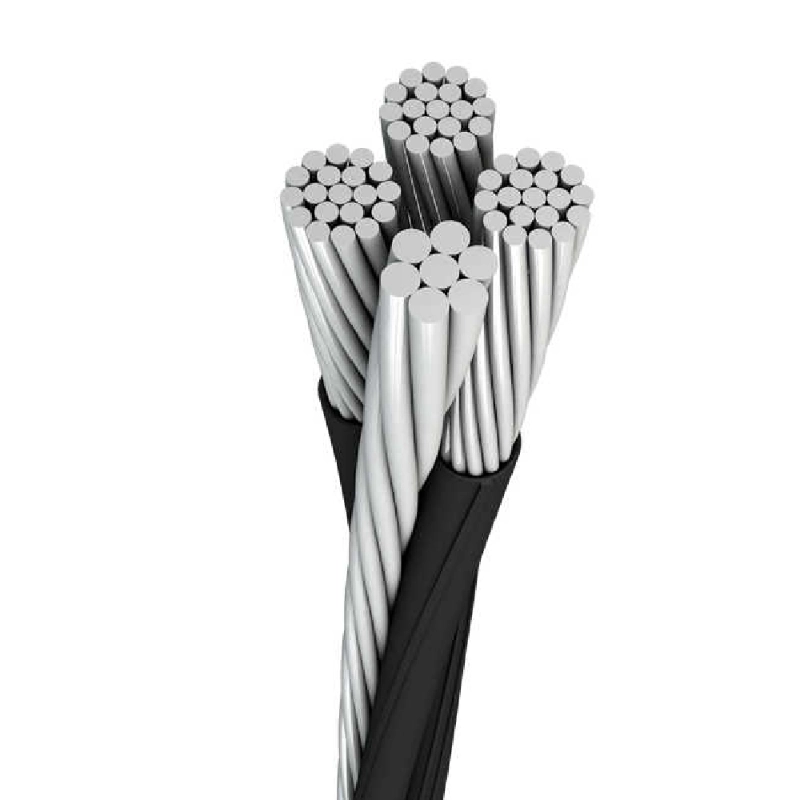

Quadruplex Cable:
The Quadruplex service drop cable is a quad or four core conductors. It has 4 conductors; three of them are insulated conductors for phase lines and a bare conductor for neutral line. It is used for supplying a 3 phase power supply from the utility pole to the building.
The phase conductor is an AAC cable while the neutral conductor is available in AAC/AAAC/ACSR. The insulation used on these cables is XLPE that protects these conductors from moisture, heat etc.
High-Quality Aerial Bundled Cable (ABC) for Reliable Power Distribution
Our Aerial Bundled Cable (ABC Cable) is designed for overhead power distribution, offering superior safety and efficiency.

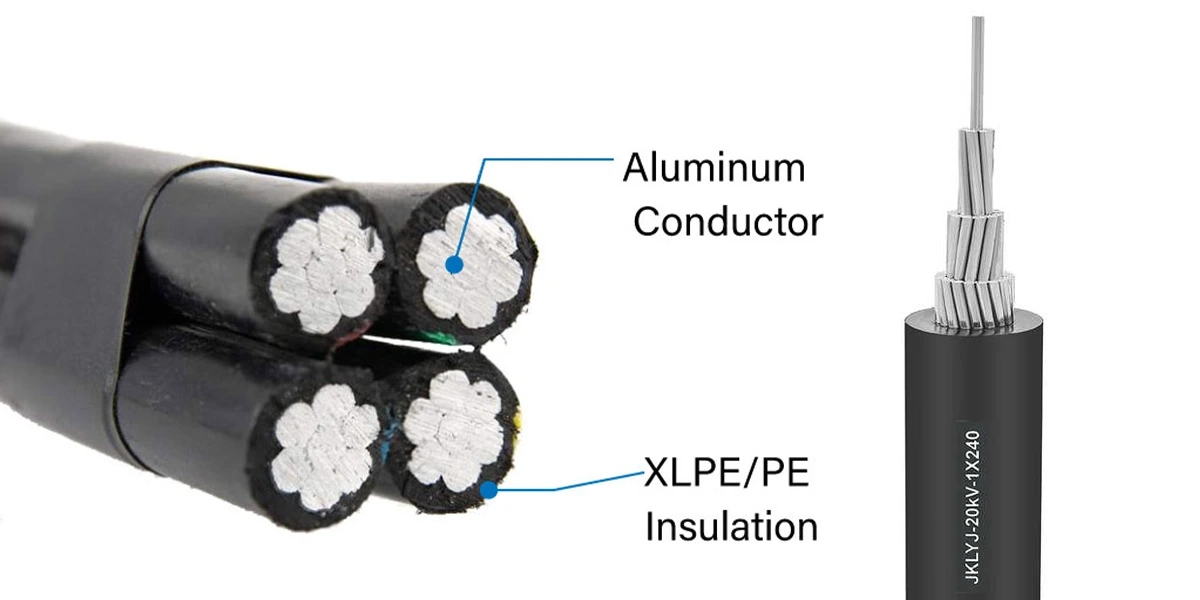

Featuring XLPE/PE insulation and oxygen-free aluminum conductors, this low-voltage ABC cable ensures excellent conductivity and
durability in various weather conditions.
Key Features:
✔ CE & IEC Certified – Meets international safety standards
✔ Multiple Configurations – Available in duplex, triplex, and quadruplex designs
✔ Customizable Options – Tailor length, color, and specifications (4x70mm², 50mm², etc.) for your project
✔ Weather-Resistant – UV-protected insulation for long-term overhead line performance
✔ Factory Direct & Wholesale – Competitive pricing for bulk orders
Ideal for rural electrification, urban power networks, and industrial applications, our ABC overhead cable provides a
cost-effective and low-maintenance solution. Contact us today for OEM/ODM services and wholesale quotes!
| ABC Cable NFC 33-209 Standard | |||||
|---|---|---|---|---|---|
| NominalCross Section | MinimumBreaking Load | current Ratingin Air | Nominal Over allDiameter | Total Weight | Outer Diameter |
| mm2 | Kn | A | mm | kg/km | mm |
| 2*16RM | 1.91 | 2.5 | 72 | 147 | 15.6 |
| 2*25RM | 1.2 | 4 | 107 | 208 | 18 |
| 2*35RM | 0.868 | 5.5 | 132 | 277 | 20 |
| 2*50RM | 0.641 | 8 | 165 | 361 | 23.5 |
| 4*16RM | 1.91 | 2.5 | 72 | 286 | 18.8 |
| 4*25RM | 1.2 | 4 | 107 | 430 | 21.2 |
| 4*35RM | 0.868 | 5.5 | 132 | 553 | 24.1 |
| 4*50RM | 0.641 | 8 | 165 | 746 | 27.8 |
| 4*70RM | 0.443 | 10.7 | 205 | 1.009 | 31.8 |
| 4*95RM | 0.32 | 13.7 | 240 | 1.332 | 37.8 |
| 4*120RM | 0.253 | 18.6 | 290 | 1.632 | 54.4 |
| 4*35+1*35RM | 0.868/0.868 | 5.5/5.5 | 132/132 | 694 | 30 |
| 4*50+1*25RM | 0.641/1.200 | 8.0/4.0 | 165/107 | 814 | 31.9 |
| 4*50+1*35RM | 0.641/0.868 | 8.5/5.5 | 165/132 | 845 | 31.9 |
| 4*70+1*25RM | 0.443/1.200 | 10.7/4.0 | 205/107 | 1.105 | 36 |
| 4*70+2*25RM | 0.443/1.200 | 10.7/4.0 | 205/107 | 1.217 | 40 |
| 4*70+1*35RM | 0.443/0.868 | 10.7/5.5 | 205/132 | 1.15 | 36.2 |
