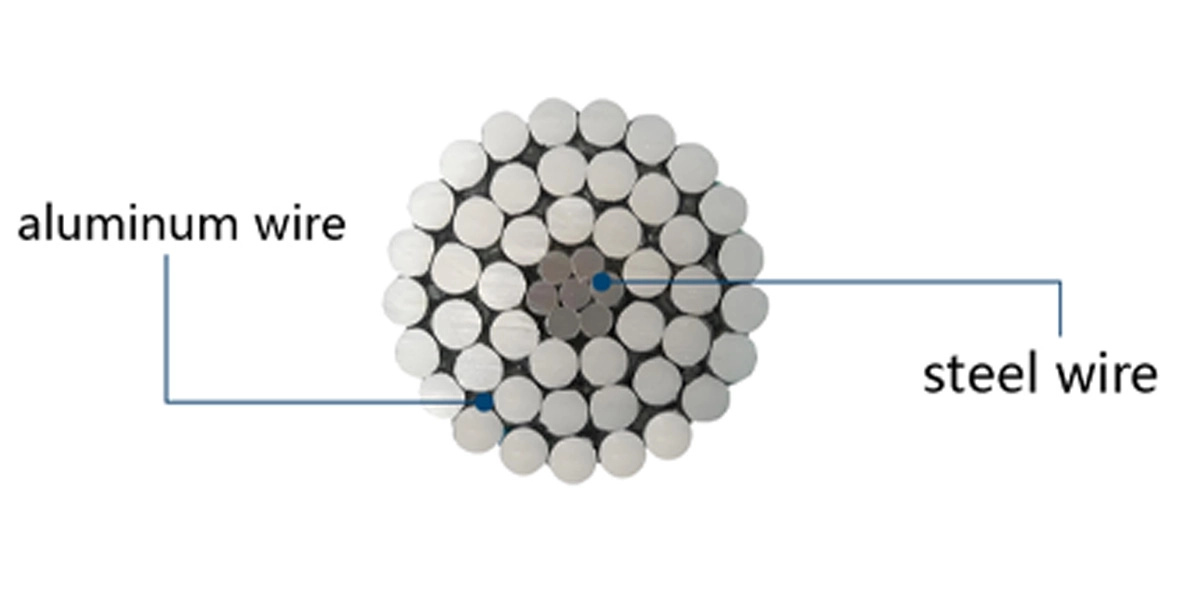

Structure
Description
Application
Overhead Transmission Lines (11kV to 500kV+),Rural Electrification & Grid Expansion Projects.
Main Characteristics

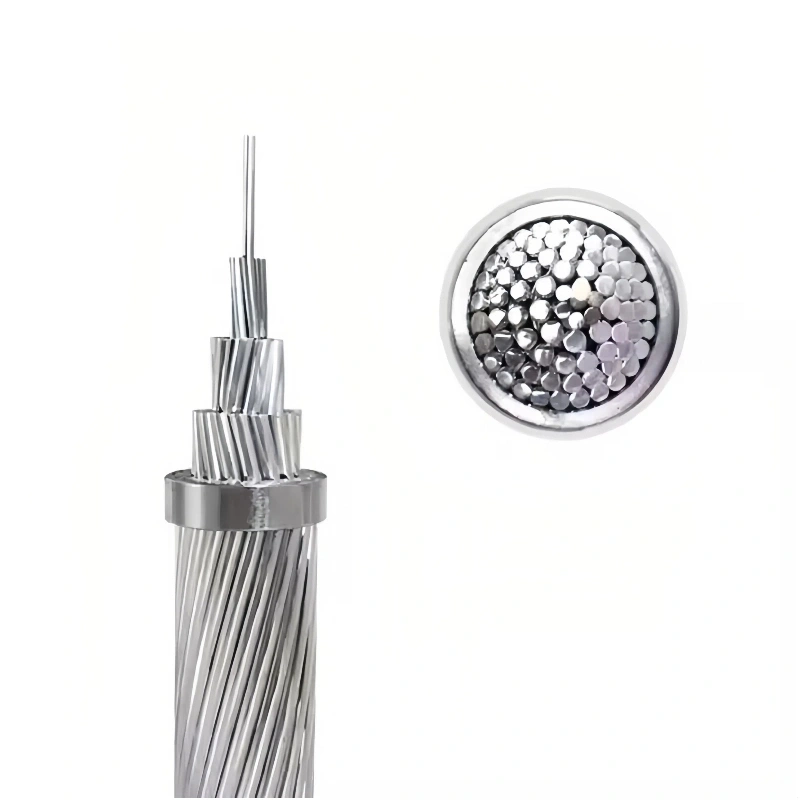

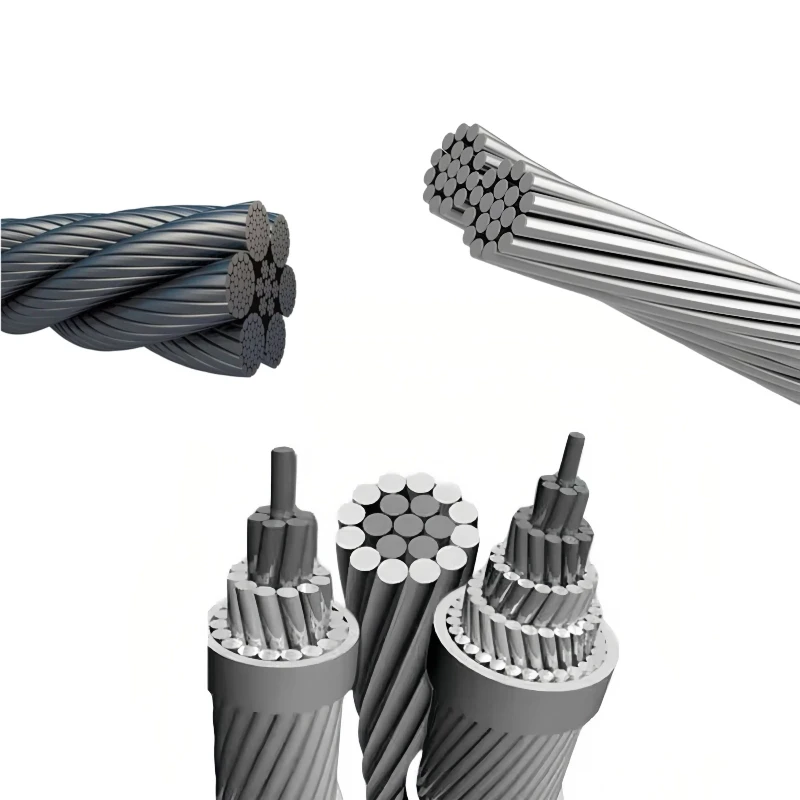

High-Quality ACSR Cable (Aluminum Conductor Steel Reinforced) – Factory Direct Wholesale for Overhead Power Lines
Product Description:

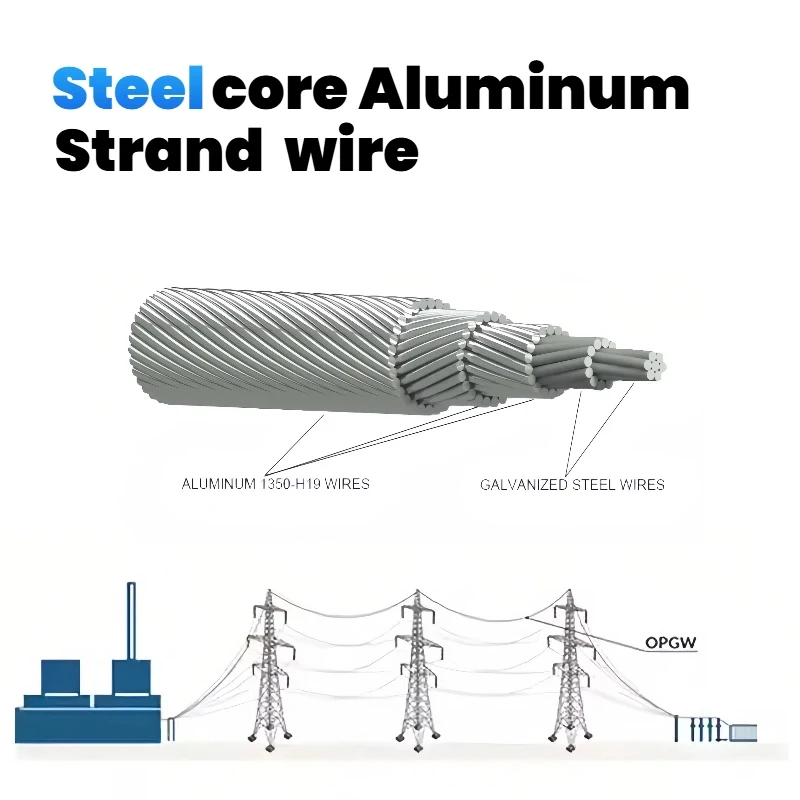

Our ACSR Cable (Aluminum Conductor Steel Reinforced) is a high-strength overhead power transmission line solution, widely used in HV & EHV power grids, substations, and long-distance electricity distribution. The cable features a galvanized steel core for superior tensile strength and aluminum outer strands for excellent conductivity, making it ideal for crossing rivers, valleys, and harsh environments
Key Features:
✔ High Conductivity & Strength – Aluminum provides efficient power transmission, while the steel core ensures structural integrity under heavy loads.
✔ Corrosion-Resistant Options – Available in standard & anti-corrosion (LGJF) types for coastal and industrial areas.
✔ Complies with Int’l Standards – Manufactured per IEC, BS, ASTM, and GB/T 1179-2008 for global acceptance.
✔ Multiple Configurations – Choose from G1A (standard), G2A (high-strength), or G3A (extra-high-strength) steel cores.
✔ Cost-Effective & Durable – Reduces tower spacing, lowers installation costs, and ensures long service life.
Applications:
Overhead Transmission Lines (11kV to 500kV+)
Rural Electrification & Grid Expansion Projects
Wind/Solar Farm Power Distribution
Industrial Power Infrastructure
Why Choose Us?
✅ Factory Direct Supply – Competitive pricing for bulk orders.
✅ Customizable Specifications – Available in 16mm² to 800mm² with various steel core ratios.
✅ Fast Global Shipping – Reliable logistics for on-time delivery.
Request a Quote Today & Get the Best ACSR Cable for Your Power Projects! \uD83D\uDD0C⚡
(Note: Custom OEM packaging & certifications like CE, RoHS available upon request.)
|
Nominal Cross Section Aluminum/Steel （mm) |
Number of Roots/Diameter（mm) | Cable Outer Diameter | DC Resistance | Calculate the Breaking Force | Calculate Weight | ||
| Aluminum | Steel | Aluminum | Steel | （mm） | (≤Ω/km） | （N） | （ kg/km) |
| 150 | 8 | 18/3.20 | 1/3.20 | 16 | 0.1989 | 32860 | 461 |
| 150 | 20 | 24/2.78 | 7/1.85 | 16.67 | 0.198 | 46630 | 549 |
| 150 | 25 | 26/2.70 | 7/2.10 | 17.1 | 0.1939 | 54110 | 601 |
| 150 | 35 | 30/2.50 | 7/2.50 | 17.5 | 0.1962 | 65020 | 676 |
| 185 | 10 | 18/3.60 | 1/3.60 | 18 | 0.1572 | 40880 | 584 |
| 185 | 25 | 24/3.15 | 7/2.10 | 18.9 | 0.1542 | 59420 | 706 |
| 185 | 30 | 26/2.98 | 7/2.32 | 18.88 | 0.1592 | 64320 | 733 |
| 185 | 45 | 20/2.80 | 7/2.80 | 19.6 | 0.1564 | 80190 | 848 |
| 210 | 10 | 18/3.80 | 1/3.80 | 19 | 0.1411 | 45140 | 651 |
| 210 | 25 | 24/3.33 | 7/2.22 | 19.98 | 0.138 | 65990 | 789 |
| 210 | 35 | 26/3.22 | 7/2.50 | 20.38 | 0.1363 | 74250 | 854 |
| 210 | 50 | 30/2.98 | 7/2.98 | 20.86 | 0.1381 | 90830 | 961 |
| 240 | 30 | 24/3.60 | 7/2.40 | 21.6 | 0.1181 | 75620 | 922 |
| 240 | 40 | 26/3.42 | 7/2.66 | 21.66 | 0.1209 | 83370 | 964 |
| 240 | 55 | 30/3.20 | 7/3.20 | 22.4 | 0.1198 | 102100 | 1108 |
| 300 | 15 | 42/3.00 | 7/1.67 | 23.01 | 0.09724 | 68060 | 940 |
| 300 | 20 | 45/2.93 | 7/1.95 | 23.43 | 0.0952 | 75680 | 1002 |
| 300 | 25 | 48/2.85 | 7/2.22 | 23.76 | 0.09433 | 83410 | 1058 |
| 300 | 40 | 24/3.99 | 7/2.66 | 23.94 | 0.09614 | 92220 | 1133 |
| 300 | 50 | 26/3.83 | 7/2.98 | 24.26 | 0.09636 | 103400 | 1210 |
| 300 | 70 | 30/3.60 | 7/3.60 | 25.2 | 0.09463 | 128000 | 1402 |
| 400 | 20 | 42/3.51 | 7/1.95 | 26.91 | 0.07104 | 88850 | 1286 |
| 400 | 25 | 45/3.33 | 7/2.22 | 26.64 | 0.0737 | 95940 | 1295 |
| 400 | 35 | 48/3.22 | 7/2.50 | 26.82 | 0.07389 | 103900 | 1349 |
| 400 | 50 | 54/3.07 | 7/3.07 | 27.63 | 0.07232 | 123400 | 1511 |
| 400 | 65 | 26/4.42 | 7/3.44 | 28 | 0.07236 | 135200 | 1611 |
| 400 | 95 | 30/4.16 | 19/2.50 | 29.14 | 0.07087 | 171300 | 1860 |
