Cable 101: The Complete Guide to Cable Types, Structure & Selection

Intro: Cables are the “blood vessels and nerves” of every electrical system. Whether you are a procurement manager, engineer, or first-time buyer, this guide gives you a solid foundation — from internal structure to selection criteria — in about 5 minutes.

1. What Is a Cable and Why Does the Right Choice Matter?

A cable consists of one or more conductors wrapped in insulation, shielding, and protective layers, used to transmit electrical power or signals. Cables are everywhere: industrial plants, buildings, data centers, renewable energy sites…

The cost of choosing wrong is real:

• Undersized conductor → overheating → insulation degradation → short circuit or fire
• Wrong environment rating → jacket cracking → moisture ingress, leakage
• Missing certifications → customs clearance failure or project rejection

Understanding cable basics is the first step in smart procurement and risk control.

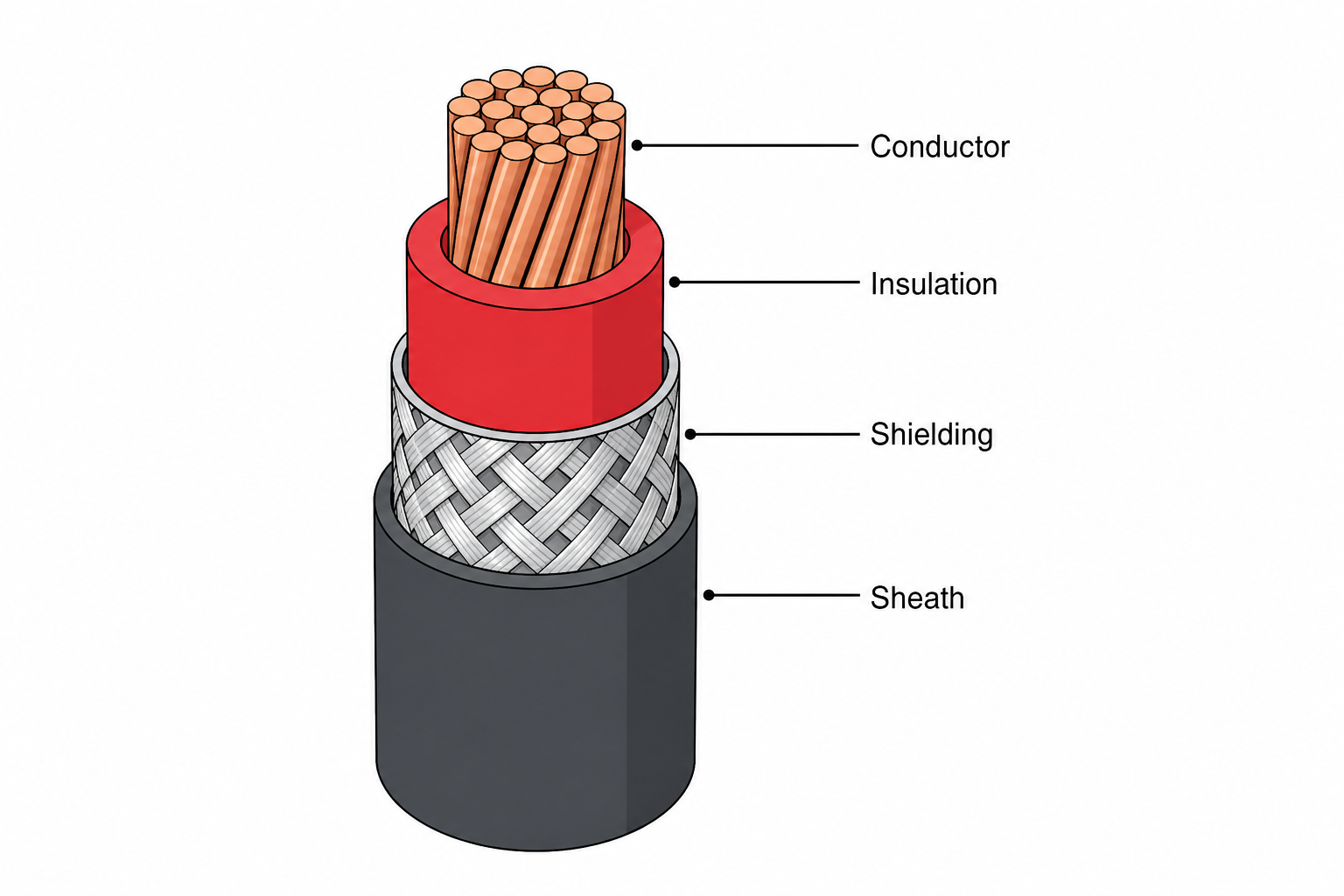

2. Anatomy of a Cable: The Four Key Layers

Copper or aluminum? Copper offers higher conductivity and reliability — the default choice for most applications. Aluminum is lighter and cheaper, often used for overhead lines and large cross-sections, but requires a larger cross-section for the same ampacity.

Insulation matters: PVC is economical and widely available; XLPE runs at higher temperatures (up to 90°C continuous) with higher ampacity — the mainstream choice for MV cables and above. Rubber compounds suit applications requiring flexibility and weather resistance.

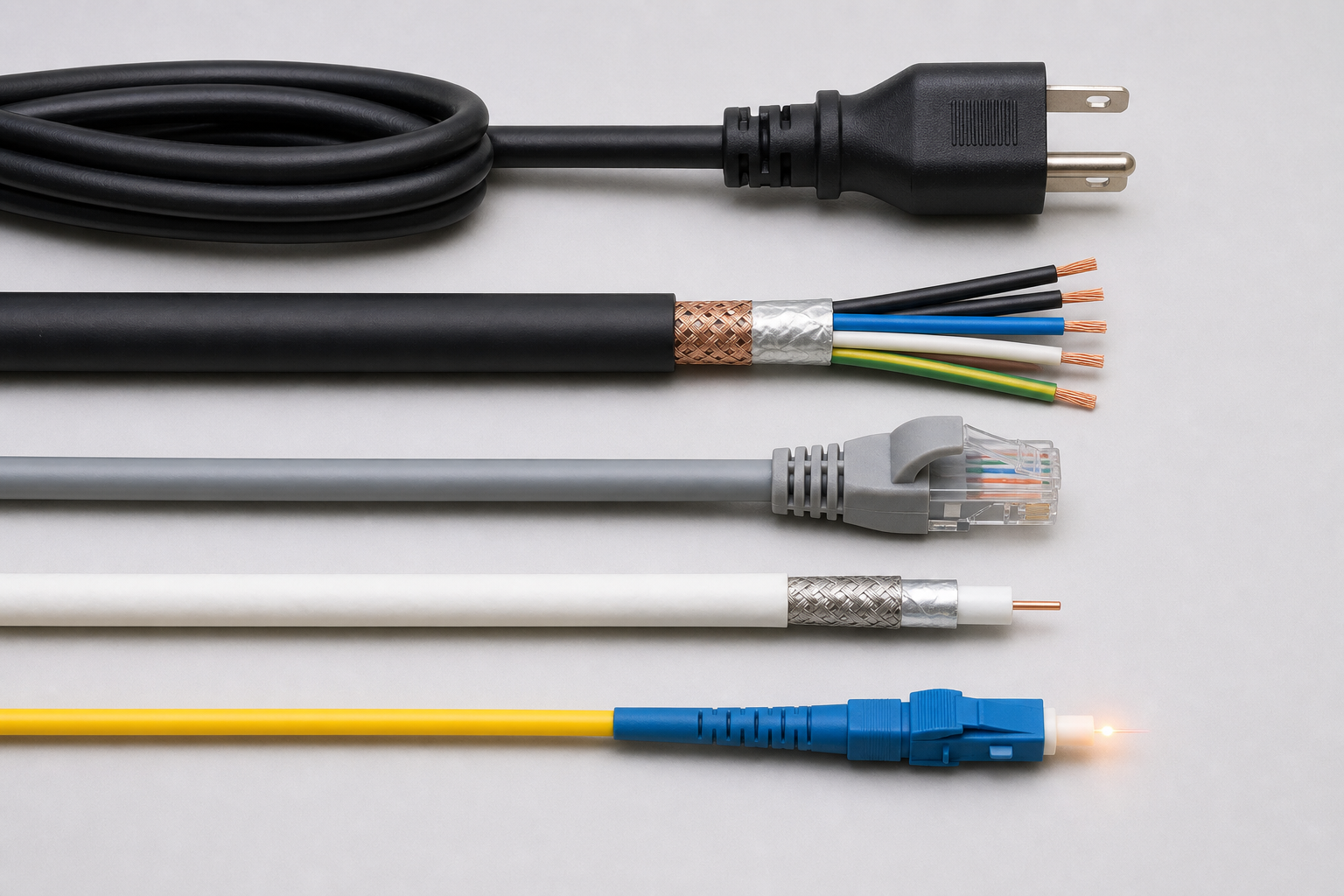

3. Main Types of Cables

By application

• Power cables — transmit electricity: LV distribution (0.6/1 kV), MV (e.g., 8.7/15 kV).
• Control cables — transmit control signals between panels and field equipment.
• Instrumentation cables — carry weak analog signals (temperature, pressure); shielded with high EMI immunity.
• Communication cables — Ethernet (Cat5e/Cat6/Cat6a), coaxial, fiber optic.
• Specialty cables — high-temperature, flame-retardant / fire-resistant, LSZH, PV (solar), marine, mining, waterproof.

By voltage rating

Tip: MV cables are often marked “U0/U”, e.g., 8.7/15 kV — U0 is the phase voltage, U the line voltage.

4. How to Read Cable Specifications

Key parameters on any spec sheet:

1. Conductor cross-section (mm² / AWG) — determines ampacity. Metric systems use mm²; AWG is common in North America (larger number = thinner wire).
2. Voltage rating — e.g., 0.6/1 kV; must be ≥ system voltage.
3. Number of cores — 1, 2, 3, 4, 5 cores (e.g., 3+1 / 4+1 for earth/neutral).
4. Ampacity (A) — maximum continuous current; depends on cross-section, installation method, ambient temperature, and insulation.
5. Temperature rating — PVC-insulated conductors are typically rated 70°C; XLPE 90°C.
6. Standards & certifications — IEC, GB/T, UL, BS, VDE, etc., depending on the target market.

AWG to mm² conversion (approximate):

Reference ampacity (copper, PVC insulation, in air): 1.5 mm² ≈ 15–18 A; 2.5 mm² ≈ 20–24 A; 4 mm² ≈ 26–32 A; 6 mm² ≈ 34–41 A. Always derate according to installation method, ambient temperature, and the applicable standard (e.g., IEC 60364) — never apply these values directly.

5. How to Choose the Right Cable: A 6-Step Checklist

1. Define the load — calculate the current (power ÷ voltage ÷ power factor), then add a 10–20% margin.
2. Determine voltage rating — match U0/U to your system voltage.
3. Consider the environment — indoor/outdoor, direct burial, conduit, tray, underwater, high temperature, corrosive?
4. Check fire safety requirements — flame-retardant (FR) or LSZH for populated areas; fire-resistant for emergency circuits.
5. Verify target-market certifications — UL for the US, CE/CPR for Europe, BS for the UK, and so on.
6. Think total cost — compare lifetime cost (installation, maintenance, reliability), not just unit price.

6. Common Mistakes to Avoid

• ❌ “Bigger is always better” — oversizing wastes money and complicates installation; size to the calculated current.
• ❌ Substituting aluminum for copper at the same cross-section — different ampacity; direct replacement risks overload.
• ❌ Ignoring derating — high ambient temperature and bundled cables require derating.
• ❌ Using indoor cables outdoors — UV damage and cracking; use weather-resistant jackets (PE, UV-stable).
• ❌ Price over certification — uncertified cables can be rejected at customs or fail inspections.

7. FAQ

Q1: Copper or aluminum?

A: Copper for most projects — better conductivity and reliability. Aluminum suits overhead and large-section applications with a larger cross-section and proper connection techniques.

Q2: What’s the difference between flame-retardant and fire-resistant?

A: Flame-retardant (FR) cables stop burning when the flame source is removed. Fire-resistant cables maintain circuit integrity under fire for a defined period — required for fire-fighting and emergency circuits.

Q3: What is LSZH (Low Smoke Zero Halogen)?

A: When burned, LSZH cables emit minimal smoke and no halogen gases — ideal for subways, hospitals, and data centers.

Q4: How long do cables last?

A: Power cables are typically designed for 20–30 years of service, depending on operating temperature, load, environment, and maintenance.

Conclusion

Cables may be small, but they are the foundation of project safety. Understanding structure, types, and selection logic helps you make professional procurement decisions with confidence.
