Beyond the BOM: Why Solar Cables Deserve the Same Scrutiny as Modules and Inverters

In modern photovoltaic (PV) project development, procurement strategies have become highly refined—at least on the surface. Modules and inverters dominate the technical discussions, particularly when sourcing Tier-1 brands like LONGi, JA Solar, or Sungrow. These components undergo rigorous technical bidding, factory audits, and long-term warranty evaluations.

Yet, beneath this disciplined approach lies a persistent blind spot: the balance of system (BOS) components, specifically the solar cables.

In too many EPC and procurement workflows, cable selection is reduced to a three-line checklist: “Is it TÜV certified? Is it in stock? Is it the lowest price?” If the answer to all three is yes, the cable is approved.

This article argues that this approach is a liability. Cables are not passive commodities; they are the circulatory system of a PV plant. A failure in a single string cable can cripple a megawatt-scale array. Drawing on field data and material science, we propose a more robust, engineering-driven framework for cable selection.

The 25-Year Mismatch: Design Life vs. Actual Durability

A utility-scale PV system is a 25-to-30-year infrastructure investment. Most standard PVC or rubber cables are not designed for this horizon. While a certificate may state “25-year life,” the reality is that accelerated aging tests vary significantly between manufacturers.

Many low-cost cables pass the initial TÜV 2PfG 1169 or EN 50618 test but fail to maintain mechanical integrity after year 10. The mechanism is simple: thermal oxidative degradation. When a cable operates at 90°C or 120°C continuously (common in rooftop or high-irradiance environments), the polymer cross-linking degrades.

The Procurement Question: Does your supplier provide Long-Term Heat Aging (LTHA) data per EN 60216, or are you relying solely on a pass/fail certification from three years ago?

UV Resistance: More Than a “Black Color”

UV degradation is the most visible failure mode in solar fields, yet it remains the most misunderstood. Technically, UV radiation triggers photolytic chain scission in polymer backbones. The result? Chalking, cracking, and ultimately, conductor exposure.

However, the industry standard “UV resistance” test (often 720 hours or 1008 hours in a QUV chamber) is a screening test, not a durability guarantee. In high-altitude deserts (e.g., Qinghai, Atacama) or coastal zones, UV intensity is 30-40% higher than test standards.

High-quality solar cables utilize a combination of carbon black dispersion (2.5% ± 0.5%) and hindered amine light stabilizers (HALS). Inferior products use recycled polymers or insufficient carbon black, leading to catastrophic cracking within 5-7 years.

The Engineering Reality: Visual inspection at year 5 is too late. You need to audit the masterbatch (colorant/additive package) supplier. Does your cable manufacturer use a virgin, UV-stabilized compound or a recycled blend?

The Hidden Cost of Halogen-Free Flame Retardant (HFFR)

Fire safety is non-negotiable in large-scale plants, particularly those adjacent to agrivoltaics or forested areas. The shift toward LSZH (Low Smoke Zero Halogen) or HFFR materials is correct, but it introduces a mechanical compromise.

To achieve flame retardancy without halogens, manufacturers load the polymer with high levels of aluminum hydroxide or magnesium hydroxide (ATH/MDH). While excellent for fire suppression (self-extinguishing per IEC 60332-1-2), this high mineral content reduces flexibility and tensile strength.

Low-quality HFFR cables are brittle. During installation in cold weather (below 0°C), the insulation cracks as you bend it around a module frame. You don’t see the crack immediately; you see the ground fault alarm three months later.

The Solution: Demand a “flexibility test at low temperature” (IEC 60811-504) as a standard requirement. A premium cable maintains elongation at break >125% even after aging. A cheap cable becomes a ceramic pipe.

Electrical Stability: Contact Resistance and Connector Interface

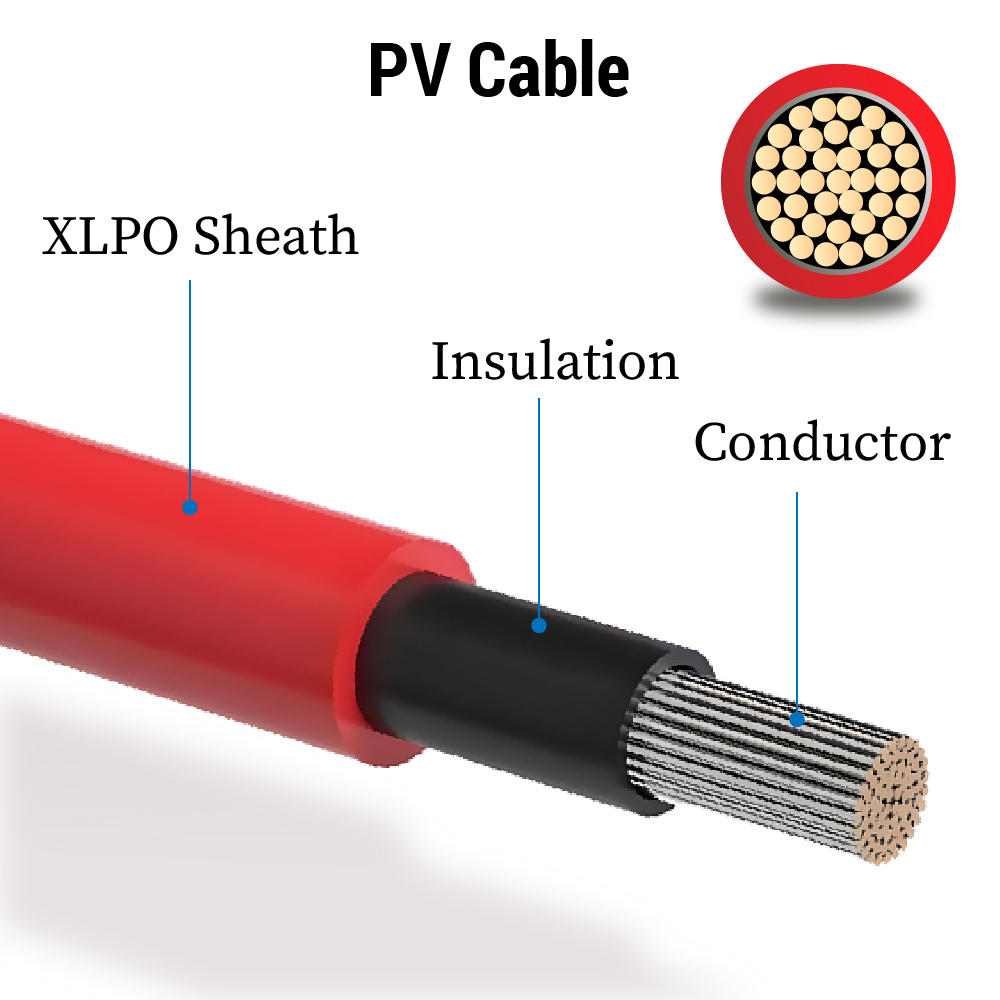

Most engineers focus on conductor resistance (DC resistance per IEC 60228, Class 5/6 tinned copper). That is table stakes. The real risk is at the interface between the cable and the DC connector (MC4 or equivalent).

Here, galvanic corrosion is the silent killer. If the cable’s tinned copper conductor is not perfectly matched to the connector’s crimp barrel, or if the cable manufacturer uses a different alloy composition, you create a thermocouple. Moisture ingress leads to electrolytic corrosion, increasing contact resistance from <0.5 mΩ to >5 mΩ. At 30A, that is 0.5W of heat per connection. Multiply by 10,000 connections in a 100MW plant. You have a miniature heater inside every junction box.

The Data Point: Thermal imaging of operating plants frequently reveals “hot strings” traced back to mismatched cable-connector interfaces. We recommend ensuring the cable manufacturer provides a mating compatibility test report with your chosen connector brand (Staubli, TE, Amphenol).

Operational Realities: Tensile Load and Abrasion

The laboratory does not simulate a rooftop installer pulling 500 meters of cable across a corrugated metal roof or a tracker system that articulates +/- 60 degrees every day.

In tracker systems, the cable experiences cyclic torsion. Standard solar cables (H1Z2Z2-K) are rated for static installation or minor flexing. For trackers, you need a cable certified for dynamic use with higher stranding (Class 6 vs Class 5) to withstand millions of flex cycles without work hardening the copper.

Similarly, in ground-mount systems, buried cables face rodent attack and soil settlement stress. A thin sheath (nominal thickness 0.8mm) is easily gnawed through.

The Checklist:

• Abrasion resistance: Ask for the sand slurry test (UL 854) or a blade cut-through test.
• Dynamic use: Confirm the number of stranding wires (higher is better for flex).
• Sheath thickness: Don’t just meet the minimum; verify the mechanical robustness.

Supplier Consistency: The Batch Variance Problem

You tested a sample in the lab. It passed. You received 500km of cable on site. Does it match the sample? This is the manufacturing consistency gap.

Low-margin cable producers often change raw material suppliers seasonally to chase price. The insulation compound that passed TÜV in January may be swapped for a chemically similar but inferior compound in June. The resulting cable passes the basic spark test but fails after 18 months in the field.

The Procurement Safeguard: Require a Material Declaration confirming no formulation changes without 6-month notice. Conduct random batch sampling for Thermo-Gravimetric Analysis (TGA) to verify the carbon black and mineral filler content matches the type-approved sample.

Conclusion: Reclassifying Cables as Critical Assets

In PV economics, Levelized Cost of Energy (LCOE) is king. It is tempting to save $0.002/watt on cables. But consider the cost of a 1MW string failure: downtime, excavation, restringing, and lost revenue.

Solar cables are not a commodity. They are a long-term stability asset. A cheap cable costs you nothing today, but it costs you yield every cloudy day (via IR losses) and safety every hot hour (via insulation breakdown).

For your next project, do not ask “What is the price per kilometer?” Ask “What is the cost of not replacing this cable in Year 15?”

When you shift from transactional buying to engineering procurement, you stop buying cable—you start buying reliability. And in a 25-year asset, reliability is the only metric that matters.
