Aerial Bundled Cable (ABC): Technical Evolution and Application Value Analysis

Against the backdrop of continuous global power infrastructure upgrades, overhead distribution technology is undergoing profound transformation. Traditional bare conductor overhead lines, while economically advantageous, possess inherent deficiencies in safety and reliability—phase-to-phase short circuits caused by conductor swinging, ground faults from external object contact, and the associated fire risks have long plagued power utilities. The emergence of Aerial Bundled Cable (ABC) provides a solution that balances engineering economy with operational safety. ABC Cable is an overhead distribution product that tightly bundles multiple insulated phase conductors together, typically incorporating a bare neutral conductor, primarily applied in 0.6/1kV low-voltage distribution systems. This design preserves the cost advantages of overhead lines while substantially enhancing safety performance through insulation, leading to increasingly widespread global adoption.

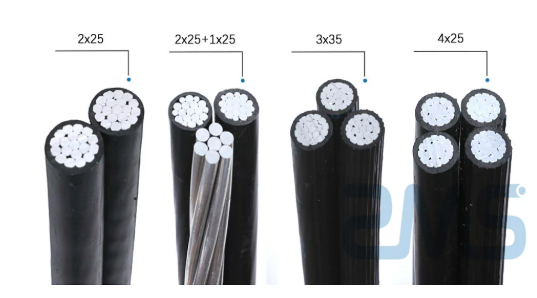

From a technical architecture perspective, the core structure of ABC Cable consists of three tiers: conductor system, insulation layer, and structural arrangement. The conductor employs a concentric stranded compressed structure, typically utilizing 1350-H19 aluminum alloy, 6201 aluminum alloy, or ACSR (Aluminum Conductor Steel Reinforced), with individual wire tensile strength reaching up to 340MPa, while the neutral conductor doubles as a load-bearing member in long-span applications. The insulation layer is made of cross-linked polyethylene (XLPE) or weather-resistant polyethylene (PE), with XLPE offering a long-term operating temperature of 90°C and a short-circuit temperature limit of 250°C, delivering excellent electrical insulation properties and UV aging resistance; insulation thickness typically ranges from 1.2mm to 1.8mm for 0.6/1kV products. Common configurations include 1+1 (single phase + neutral), 3+1 (three phases + neutral), and 3+1+1 (with street lighting conductor) types, with phase conductors identified by extruded longitudinal ribs for on-site phase recognition—some products can incorporate a dedicated street lighting conductor for public illumination. Products can be manufactured in accordance with IEC 60502, BS 7870-5, SANS 1418-1, ASTM B230/B231, GB/T 14049, and other international and national standards to meet technical requirements across different regional markets.

ABC Cable demonstrates significant advantages over traditional bare conductors and underground cables across multiple dimensions. In terms of safety, the insulation layer effectively prevents short circuits and ground faults caused by tree branches, kite strings, animals, and other external objects, fundamentally eliminating sparks from conductor clashing under wind conditions—a critical factor for bushfire prevention in arid climates, with KEPCO’s practice showing that ABC distribution systems can reduce external object contact faults by approximately 25%. Regarding reliability, in densely forested areas where traditional bare conductors require frequent clearing of vegetation within line corridors, ABC Cable does not arc when contacted by tree branches, and industry statistics indicate fault rates due to vegetation can be reduced by over 70% after conversion. For installation and maintenance, ABC Cable can be installed without crossarms and insulators, significantly improving construction efficiency, with routine maintenance requiring only visual inspection; in space-constrained areas, ABC Cable permits a minimum vertical clearance of 1.2m and lateral clearance of 0.5m from buildings—reducing the required electrical corridor by over 50% compared to bare conductors. From a total lifecycle cost perspective, while initial material costs are slightly higher than bare conductors, considering extended service life (design life of 25 to 30 years), lower fault-related losses, and reduced maintenance investment, annual comprehensive costs can be reduced by approximately 15%—the primary reason for ABC Cable’s widespread application in power infrastructure projects across developing countries. Additionally, the complexity of ABC Cable connections makes unauthorized tapping difficult and easily detectable; Pakistan’s K-Electric reported a 90% reduction in theft losses after piloting ABC Cable in Karachi’s Gulshan-e-Iqbal area, subsequently rolling it out across the entire distribution network.

ABC Cable’s application scenarios cover a wide range of challenging engineering environments. In urban grid renovation, within old city districts with narrow streets and complex underground utilities, ABC Cable can be installed along walls without requiring wide electrical corridors, greatly saving space. Forest areas and tree-rich zones represent the classic application scenario—the insulation layer effectively prevents ground faults caused by branch contact, significantly reducing tree felling, which explains why the United States, Canada, Australia, and other countries with abundant forest resources widely adopt ABC Cable. In coastal salt-spray areas and industrial pollution zones, salt spray and industrial pollutants severely corrode bare conductors, while ABC Cable’s insulation and protective layers effectively block corrosive substances from penetrating—actual case studies show that in coastal areas, ABC Cable line life can be extended by 5 to 8 years compared to bare conductors. In typhoon and high-wind areas, the insulation layer ensures that even when conductors collide with each other or touch poles and towers, no short circuit occurs; after China Southern Power Grid adopted ABC Cable extensively in coastal areas, line trip-out rates during typhoons decreased significantly. In mountainous areas and complex terrain, ABC Cable combines the convenience of overhead installation with the safety of insulation protection, and can even be laid directly along hillsides with extremely high installation flexibility. Furthermore, ABC Cable is widely used in temporary power supply and emergency restoration, street lighting, and low-voltage side transformer down-leads. It can be said that wherever overhead distribution requires a balance of safety, economy, and environmental protection, ABC Cable is a highly competitive choice.

Of course, ABC Cable also has objective technical limitations that should be fully evaluated during engineering selection. Its initial material cost is higher than traditional bare conductors, insulation performance degrades under long-term sun exposure, increased self-weight results in shorter spans compared to bare conductors and may require additional poles, mountain repairs demand larger equipment due to heavier cable weight, and in Australia’s Dandenong Ranges in Victoria, aging 11-22kV ABC installations experienced insulation breakdown leading to ground fires—some lines had an actual service life of only 10 years against a design life of 30 years, necessitating gradual replacement with underground cables. These factors warrant careful consideration in project planning.

From the perspective of global industry practice, ABC Cable has received large-scale validation and application across multiple countries and regions. Australia has progressively introduced ABC cable systems since 1983 primarily for bushfire protection, Ireland installed its first low-voltage ABC lines on rural distribution networks in 1981, and KEPCO constructed ABC demonstration lines from 1997 and subsequently deployed domestically manufactured ABC distribution systems nationwide. From a technical evolution perspective, ABC Cable is gradually expanding from medium-low voltage distribution toward higher voltage classes—products at 6.35/11kV and 19/33kV levels are now available, incorporating full cable structures with conductor screens, insulation screens, and metallic screens. As an innovative overhead distribution technology, ABC Cable substantially enhances safety and reliability through insulation and compaction design while preserving the economic advantages of overhead lines. Its outstanding performance in urban grid renovation, forest power supply, and coastal protection applications has been validated globally. Despite limitations including insulation aging and higher initial costs, through proper selection, strict material standards, and comprehensive maintenance management, ABC Cable remains one of the most competitive technical solutions in medium-low voltage overhead distribution.
