In the fields of plumbing and electrical renovation, low-voltage engineering, and equipment cabling, there is a type of cable that has become the top choice for mobile wiring, temporary power supply, and signal transmission due to its exceptional flexibility, dual protection, and high cost-effectiveness. That cable is the RVV cable. Many people often confuse RVV with BV or BVR cables, unaware that this “flexible sheathed cable” offers irreplaceable advantages in scenarios requiring frequent bending, wiring in tight spaces, and movable equipment connections.

Unlike the rigid, fixed shape of BV hard wire or the single-layer protection of BVR soft wire, RVV cable combines flexibility, safety, and practicality through its unique “multi-strand soft core + dual-layer sheath” structure. It is widely used in home renovation, security systems, industrial control, temporary power supply, and many other scenarios. In this blog post, we’ll provide a comprehensive breakdown of RVV cable—from its definition and structure to its core advantages, application scenarios, specification selection, and a guide to avoiding pitfalls—all accompanied by detailed illustrations. Whether you’re a homeowner, an electrician, a procurement specialist, or a low-voltage installer, you’ll be able to understand, utilize, and avoid common pitfalls, truly grasping the core value of this “versatile sheathed cable.”

I. What Is RVV Cable? Model Designations and Basic Parameters

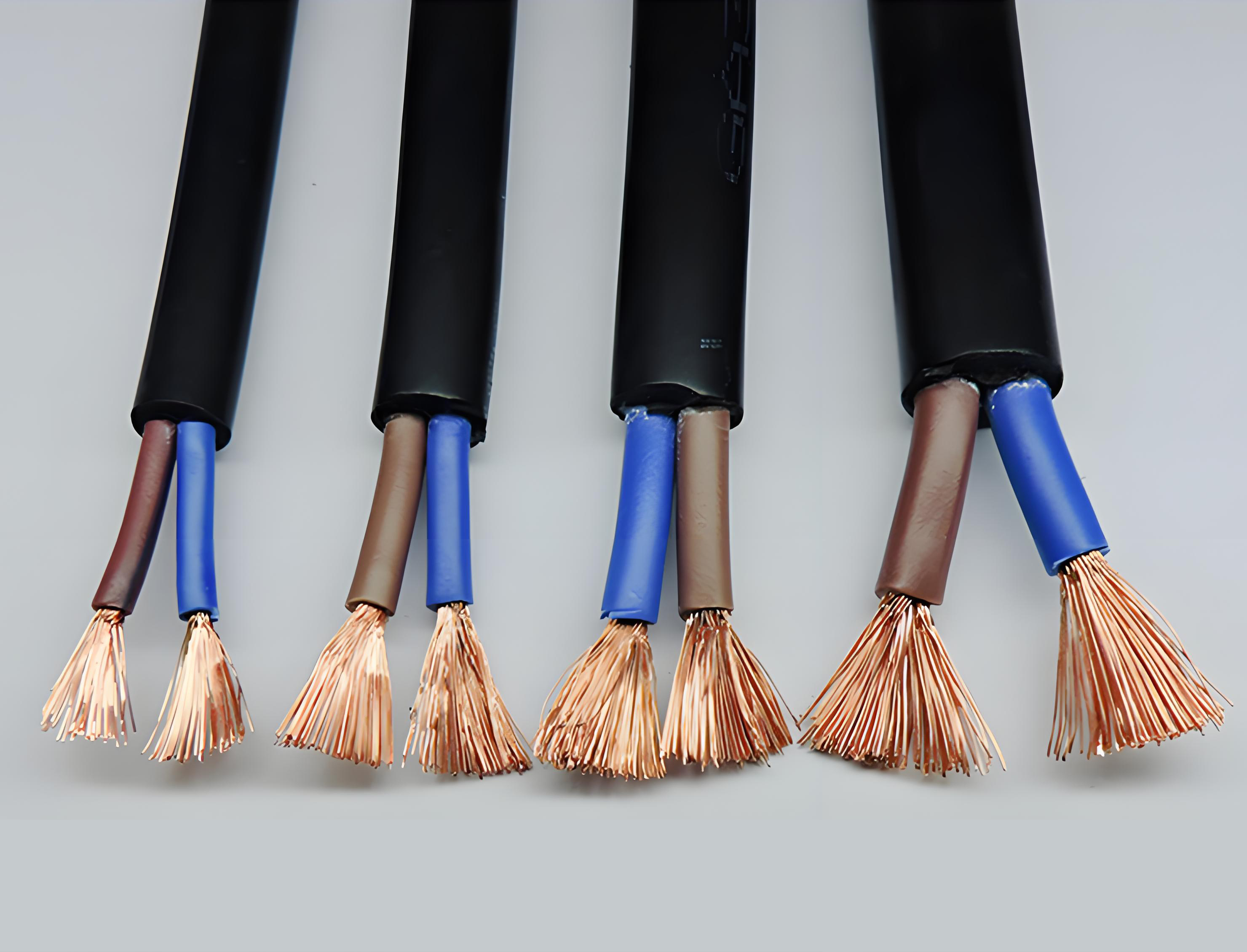

RVV cable, formally known as copper-core polyvinyl chloride (PVC) insulated and sheathed flexible cable, is commonly referred to as “flexible sheathed cable” or “lightweight sheathed cable.” It is the most widely used multi-core flexible cable in low-voltage low-current systems and an indispensable primary wiring material in home renovations and construction projects. Its core positioning is “portable, flexible, and safe,” making it perfectly suited for various non-fixed wiring scenarios.

1.Decoding the Model Letters (Understanding Core Attributes at a Glance)

Many people find the RVV model designation confusing, but breaking it down is actually very simple. Each letter corresponds to a core characteristic of the cable. Once you understand these three points, you’ll never make a wrong purchase again:

The first “R”: Stands for “flexible conductor.” This is the most fundamental identifier of RVV cable. The conductors are made of multiple strands of fine copper wire twisted together, unlike the single solid copper core found in BV cable. This is the fundamental reason for its flexibility and bendability;
The first “V”: stands for “Polyvinyl Chloride (PVC) insulation.” Each copper conductor is individually wrapped in a layer of PVC insulation. This isolates the current and prevents short circuits between conductors, while different colors distinguish live, neutral, and ground wires for easy identification during installation;
The second “V”: stands for “Polyvinyl Chloride (PVC) Sheath.” All conductors, once insulated, are further encased in a single layer of PVC sheath. This is equivalent to putting a “double-layered protective jacket” on the cable, which not only enhances the overall structural stability but also improves protective performance.
In summary: RVV cable = multi-strand flexible copper conductors + individual PVC insulation + overall PVC sheath. With a rated voltage of 300V/500V, it is suitable for low-voltage 220V residential and low-voltage equipment. Its long-term operating temperature is ≤70°C, and it is designed for an operating environment range of -15°C to +40°C, meeting the wiring requirements for the vast majority of residential and industrial low-voltage applications.

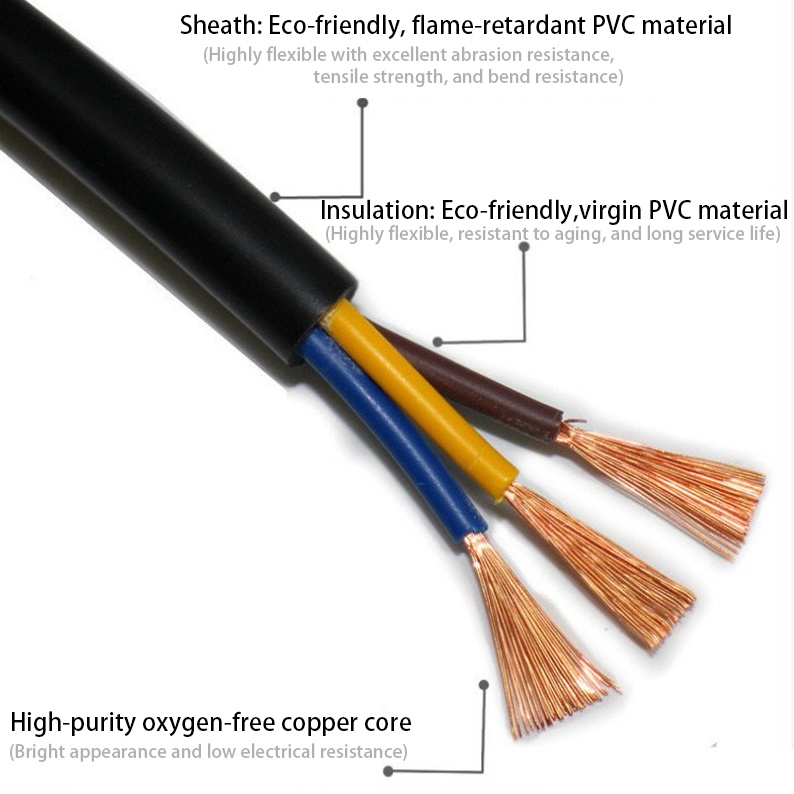

2.Basic Structure (Three-Layer Protection: Simple Yet Sophisticated)

The structure of RVV cable may appear simple, but each layer is precisely engineered to balance flexibility and safety. Its three-layer progressive protection system ensures electrical safety at every level:
First Layer: Conductor Layer. Consists of multiple strands of high-purity oxygen-free copper wire twisted together, with common configurations ranging from 2 to 24 conductors. The copper wires are fine and uniform, with a rich luster, free of discoloration, impurities, or broken strands. The multi-strand twisted structure not only makes the cable exceptionally flexible but also enhances electrical conductivity, resulting in low resistance and minimal heat generation. It also offers strong resistance to bending, making it less prone to breakage even with frequent bending, and is well-suited for the wiring needs of mobile devices.
Second Layer: Insulation Layer. Each copper core is individually wrapped in a layer of PVC insulation. The insulation layer is of uniform thickness and tightly wrapped, free from manufacturing defects such as uneven coating, air bubbles, or damage. Different conductors are color-coded (commonly red, blue, green, yellow, and yellow-green), such as red for live wires, blue for neutral wires, and yellow-green for ground wires. This allows for quick identification during installation, preventing safety hazards caused by incorrect wiring.
Third Layer: Sheath. All insulated conductors are further encased in a single layer of PVC sheath. This sheath is flexible yet substantial to the touch, with a uniform luster and no pungent odor. Its primary function is protection: it effectively withstands daily friction, minor impacts, moisture, and dust contamination. It also prevents the conductors from becoming tangled, consolidates the cable’s overall structure, and facilitates easier wiring.

II. RVV Cables vs. Other Cables: Key Differences at a Glance

This is where many people most often make mistakes—confusing RVV cables with BV, BVR, and RVVP cables. Blindly choosing the wrong type can lead to wiring difficulties, equipment malfunctions, and even safety hazards. In fact, as long as you understand their structural characteristics and intended uses, you can select the right cable for the job. Below, we’ll use plain language and clear comparisons to help you distinguish them clearly:

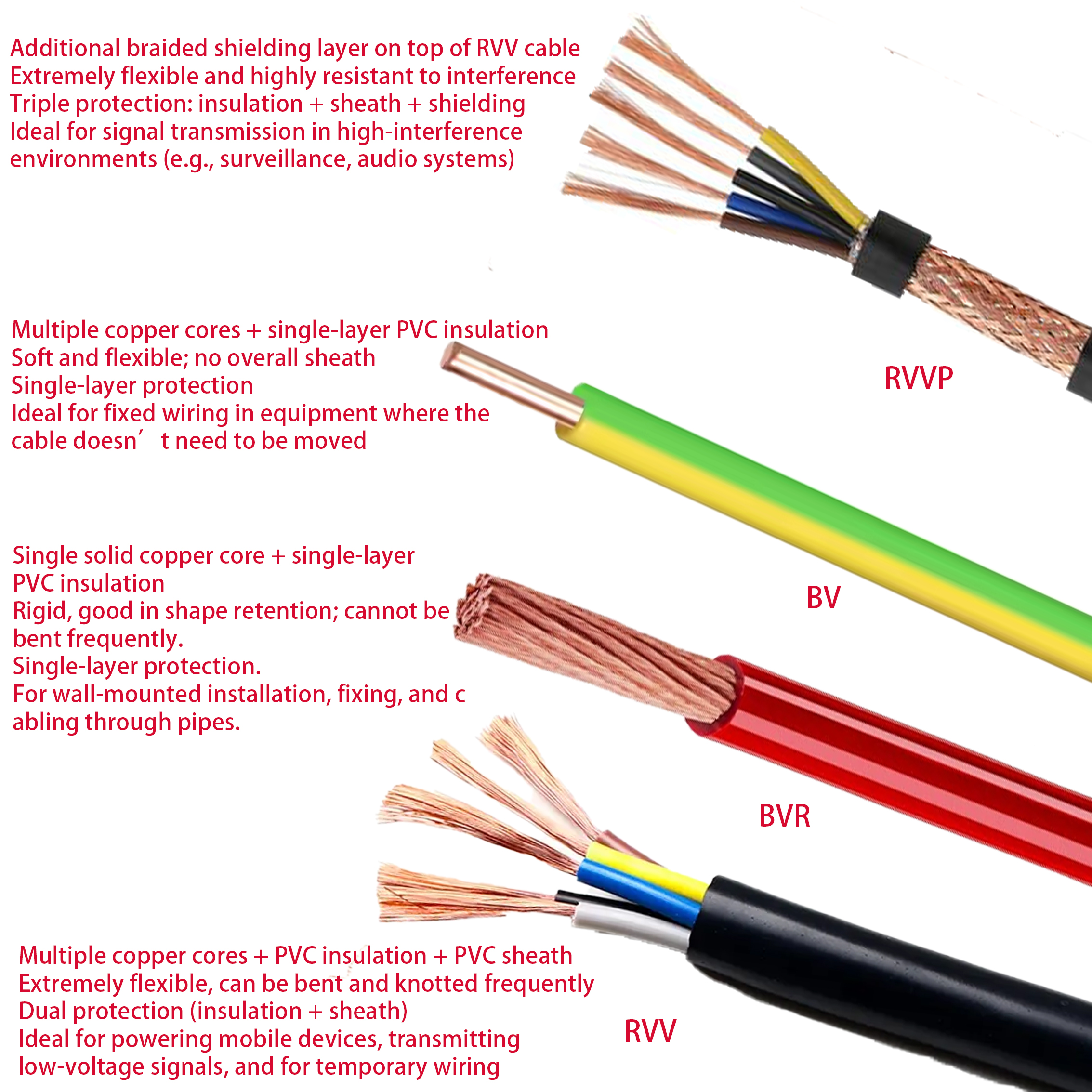

1.Key Differences Comparison Chart

2.Simple Summary (Directly Apply to Selection)

Remember these four rules to avoid selection pitfalls: Use BV rigid wire for fixed, wall-embedded installations (well-defined shape, long lifespan); use BVR flexible wire for fixed equipment connections (flexible but unshielded); use RVV for mobile, damp, or multi-core wiring (double protection, extremely flexible); and use RVVP for signal transmission in high-interference environments (shielded, prevents signal distortion).
For example: In home renovations, use BV rigid wire for the main lines of lighting and outlets embedded in walls; use RVV flexible wire for power cords of appliances like air conditioners and refrigerators (easy to move and bend); use RVV for surveillance camera power cables (multi-core and flexible, suitable for wiring in tight spaces); and for surveillance wiring near transformers, use RVVP shielded cable to prevent signal interference.

III. Six Key Advantages of RVV Cables: A Clear Win Over Standard Cables

It is no coincidence that RVV cables have become the “go-to solution” for home renovation, low-voltage systems, and industrial control applications. Their robust performance precisely addresses common wiring challenges, with each advantage tailored to practical needs. Compared to standard cables, the benefits are clear:

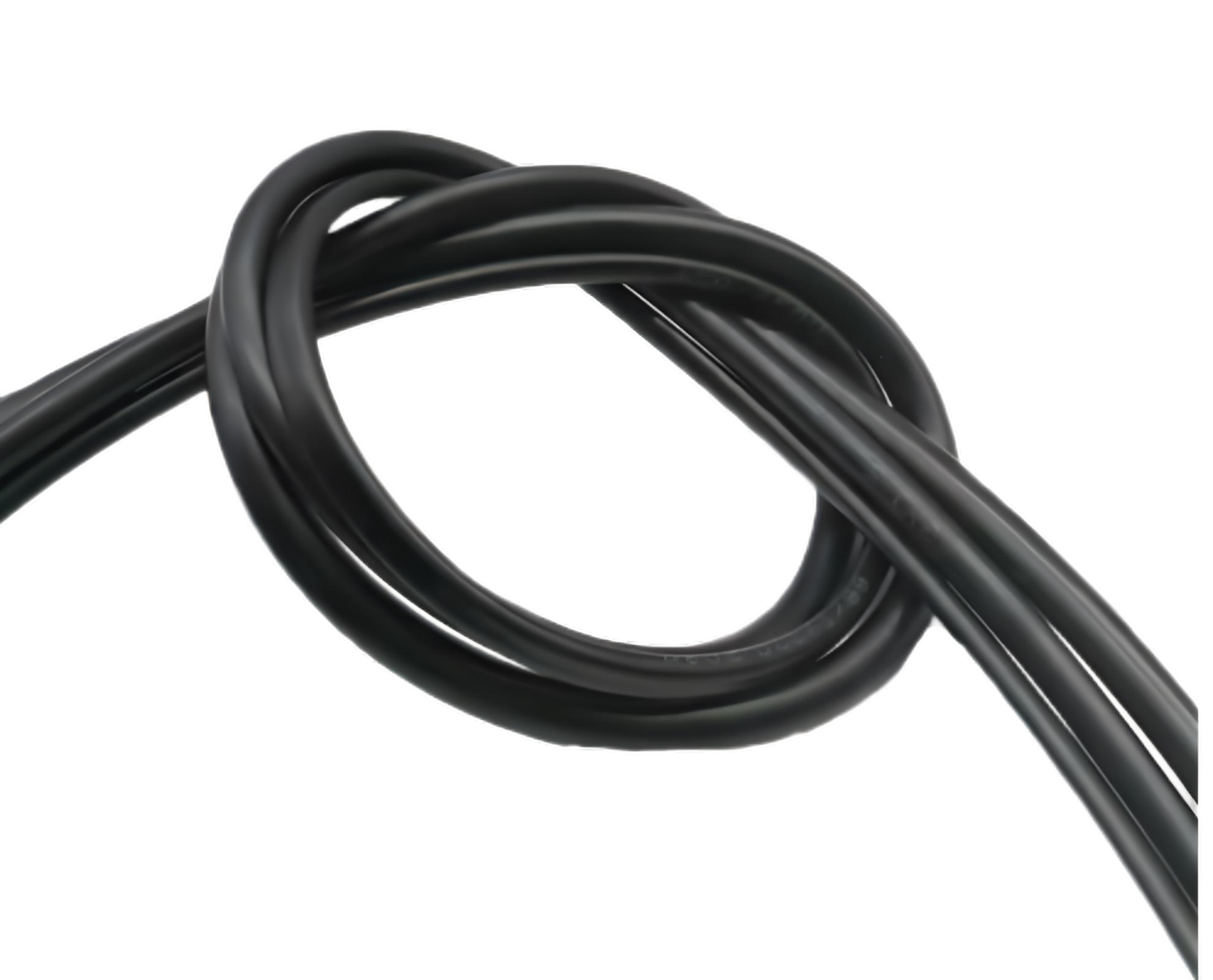

1.Exceptional Flexibility for Stress-Free WirThis is RVV cable’s most prominent advantage. The combination of multiple strands of fine copper wire twisted together and a flexible PVC jacket gives RVV cable an extremely small bending radius. It can be freely bent, knotted, and coiled—even formed into very tight loops—effortlessly handling scenarios involving tight spaces, corners, conduit runs, and frequent equipment relocation. For example, when running surveillance camera cables through wall corners or bending appliance power cords to fit device ports, RVV cables handle these tasks with ease. Installation efficiency is improved by over 50% compared to rigid wiring, and it eliminates the risk of breakage from bending.

Dual Protection: Safe and Durable
RVV cables feature a “insulation + sheath” dual-protection structure, adding an extra layer of overall sheathing compared to BVR flexible cables, which significantly enhances protection. The inner insulation layer effectively isolates current, preventing short circuits and leakage between conductors; the outer sheath is thick, abrasion-resistant, and tear-resistant, capable of withstanding daily friction, minor impacts, moisture, and dust contamination, while also resisting corrosion from oils and mild acids and alkalis. Standard RVV cables have a normal service life of over 20 years. Whether installed in open areas, run through conduits, or used temporarily outdoors, they operate reliably and are resistant to aging and damage.

Stable Conductivity, Low Power Loss, and Enhanced Safety
High-quality RVV cables utilize high-purity oxygen-free copper conductors. With high purity and no impurities, these conductors offer high conductivity and low resistance. During operation, they generate minimal heat and power loss. Even under long-term full-load operation, they do not experience abnormal temperature rises, eliminating safety hazards such as loose connections, arcing, and circuit tripping. Additionally, the multi-strand twisted copper core provides a large contact area, ensuring more stable conductivity. This makes it ideal for the stable power supply requirements of lighting, home appliances, and low-voltage equipment, particularly for devices that demand high voltage stability (such as surveillance systems and instruments).

Comprehensive Range of Specifications, Suitable for All Scenarios
RVV cables are available in a comprehensive range of specifications to meet the needs of various scenarios, with core counts ranging from 2 to 24 and cross-sectional areas from 0.5 mm² to 6 mm². Common specifications include 2×0.75, 3×1.5, 4×1.0, and 5×2.5. Whether for lighting and home appliances in residential settings, surveillance and access control in low-voltage systems, or equipment wiring and temporary power in industrial control, you can find a precisely matching specification without the need for customization, making procurement and use highly convenient.

High Cost-Effectiveness and Practicality
RVV cables are made of PVC and manufactured using mature production processes, resulting in relatively low costs. Their price is significantly lower than that of specialty cables such as RVVP shielded cables and fire-resistant cables. At the same time, they balance flexibility with protection, eliminating the need for additional protective measures and effectively controlling project costs. For most residential and general industrial applications, RVV cable is the top value-for-money choice for low-voltage flexible wiring and low-voltage signal transmission, meeting usage requirements while saving costs.
Easy Installation and Maintenance
Thanks to the multi-core integrated structure of RVV cable, it does not easily become tangled or knotted during installation. It is convenient to run through conduits, secure, and splice, significantly improving construction efficiency. Additionally, the insulation layers are clearly color-coded, allowing for quick identification of live wires, neutral wires, ground wires, and different circuits during subsequent repairs, replacements, or troubleshooting. This eliminates the need for repeated testing, resulting in low maintenance costs. It is particularly suitable for scenarios requiring ongoing maintenance, such as home renovations and office environments.

IV. Five Core Applications of RVV Cable, Covering Home Renovation and Commercial Projects

Thanks to its flexibility, safety, multi-core design, and cost-effectiveness, RVV cable has a wide range of applications spanning home renovation, low-voltage systems, industrial, and commercial sectors. Its five core uses directly address everyday needs, allowing you to easily determine which specification to choose for your specific application:

Home Renovation and Appliance Connections (Most Common Scenario)
In home renovation, RVV cables are primarily used for “non-permanent wiring” scenarios, offering flexibility that rigid wiring lacks. Specific applications include:

Lighting circuits: Light fixtures, LED strips, and switch control wires (commonly 2×0.75 and 2×1.0 specifications; with fewer conductors and smaller cross-sectional area, suitable for low-power lighting) ;
Appliance Power: Power cords for appliances such as refrigerators, washing machines, air conditioners, water heaters, rice cookers, and microwaves (commonly 3×1.5 and 3×2.5 specifications; three-core cables include live, neutral, and ground wires, offering high safety);
Smart Home: Control cables for devices such as access control systems, curtain motors, smart sensors, and smart speakers (commonly available in 4×1.0 and 5×1.5 specifications; multi-core cables support multi-circuit control).

Security Surveillance and Low-Voltage Engineering (Core Application Scenarios)
In low-voltage engineering, RVV cable is an indispensable core cable, particularly suitable for signal transmission and power supply in scenarios such as surveillance, access control, and public address systems:

Surveillance Systems: Power and signal combination cables for cameras, and connection cables for network video recorders (commonly 2×0.5 and 2×0.75 specifications; small cross-sectional area and flexible, suitable for wiring in confined spaces);
Building Intercom: Control cables for residential access control, unit door intercoms, and indoor intercom equipment (commonly available in 4×0.75 and 6×0.5 specifications; multi-core design supports voice and signal transmission);
Public Address and Audio Systems: Connection cables for public address and background music systems (commonly available in 2×1.0 and 2×1.5 specifications; stable conductivity ensures clear audio quality).

Industrial Control and Equipment Connections
In industrial settings, RVV cables are primarily used for wiring small equipment and instruments, meeting the demands of frequent equipment relocation and complex cabling:

Automation Equipment: Connection cables for PLC controllers, sensors, variable frequency drives, and other devices (commonly 3×1.0 and 4×1.5 specifications; multi-core cables support multi-signal control);
Small machinery: Control cables for power tools, water pumps, fans, and small motors (commonly 3×2.5 and 4×2.5 specifications; larger cross-sectional area supports high-power equipment);
Instruments and meters: Internal wiring for laboratory equipment, testing instruments, and metering devices (commonly 2×0.5 and 3×0.75 specifications; fine and flexible, without affecting equipment operation).

Temporary Power and Mobile Applications
Temporary power applications demand high flexibility and portability from cables, making RVV cables the optimal choice:

Exhibition Stages: Power supply cables for temporary lighting, sound systems, LED screens, and other equipment (commonly 2×1.5 and 3×2.5 specifications; flexible and easy to store, facilitating setup and dismantling);
Temporary construction sites: Connection cables for small construction equipment, temporary lighting, and temporary outlets (commonly 3×1.5 and 4×1.5 specifications; durable and rugged, suitable for complex construction site environments);
Outdoor Operations: Power cords for power banks, outdoor lighting, and portable devices (commonly 2×1.0 and 3×1.5 specifications; lightweight and portable, suitable for damp outdoor environments).

Commercial and Office Cabling
Cabling requirements in commercial and office settings are relatively complex, and RVV cables offer particularly notable advantages in terms of flexibility and adaptability:

Retail stores: Cabling for lighting, point-of-sale equipment, surveillance, and public address systems (commonly using 2×1.0 and 3×1.5 specifications, suitable for tight spaces within stores);
Office spaces: Power and control cables for computers, printers, projectors, time clocks, water dispensers, and other equipment (commonly 2×1.0 and 3×1.0 specifications, which provide a neat and aesthetic appearance and facilitate future equipment relocation).

V. RVV Cable Specification Selection Guide: Avoid Waste and Overloading

Many people fall into the trap of thinking “bigger is better” when selecting cable specifications, leading to wasted costs; others choose smaller specifications to save money, resulting in cables operating under long-term overload and creating safety hazards. In fact, the core principle of selection is simple: choose the cross-sectional area based on power, the number of conductors based on function, and the protection rating based on the environment. Common specifications and their applications can be directly applied without complex calculations.

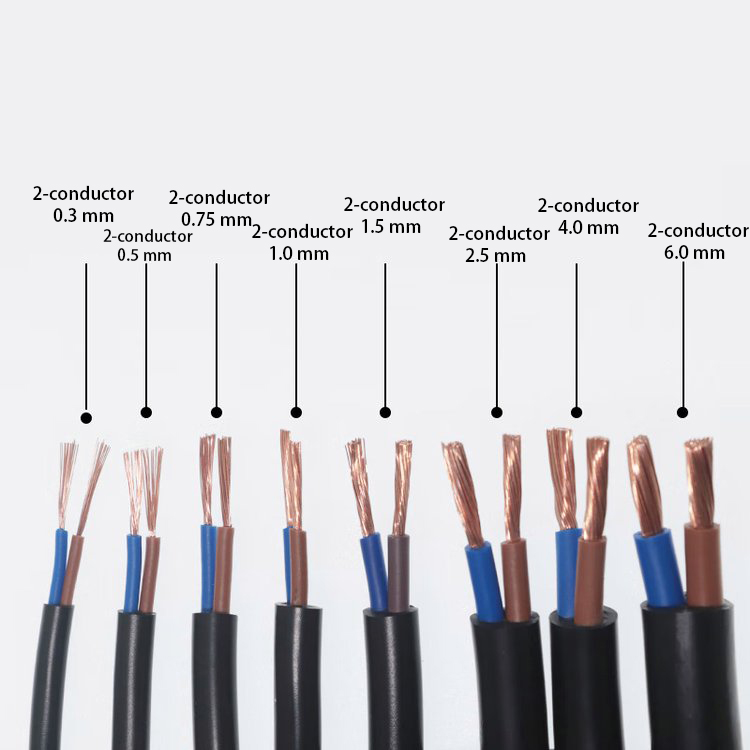

Selecting by Cross-Section Area (mm²) (Determines Current Carrying Capacity, the Core Metric)
The larger the cross-section area, the greater the current carrying capacity and the higher the power it can handle. The applicable scenarios for different cross-section areas are as follows:

0.5/0.75mm²: Current carrying capacity 3–6A, suitable for low-voltage signals, low-power lighting, and surveillance cameras (e.g., RVV 2×0.5, primarily used for surveillance power supplies);
1.0 mm²: Current-carrying capacity of 8–10 A, suitable for general lighting, access control systems, and small appliances (e.g., RVV 2×1.0 for lighting control wires, RVV 4×1.0 for access control systems);
1.5mm²: Current-carrying capacity 12–15A; the primary specification for residential installations, suitable for home appliance power supplies, standard outlets, and small air conditioners (e.g., RVV 3×1.5 for air conditioner power cords);
2.5mm²: Current-carrying capacity 20–25A; suitable for high-power home appliances, water heaters, air conditioners, and small motors (e.g., RVV 3×2.5 for water heaters and high-power air conditioners);
4mm² and above: Current-carrying capacity of 30–40A, suitable for industrial equipment, high-power machinery, and multi-circuit control (e.g., RVV 4×4 for small motor control wires).

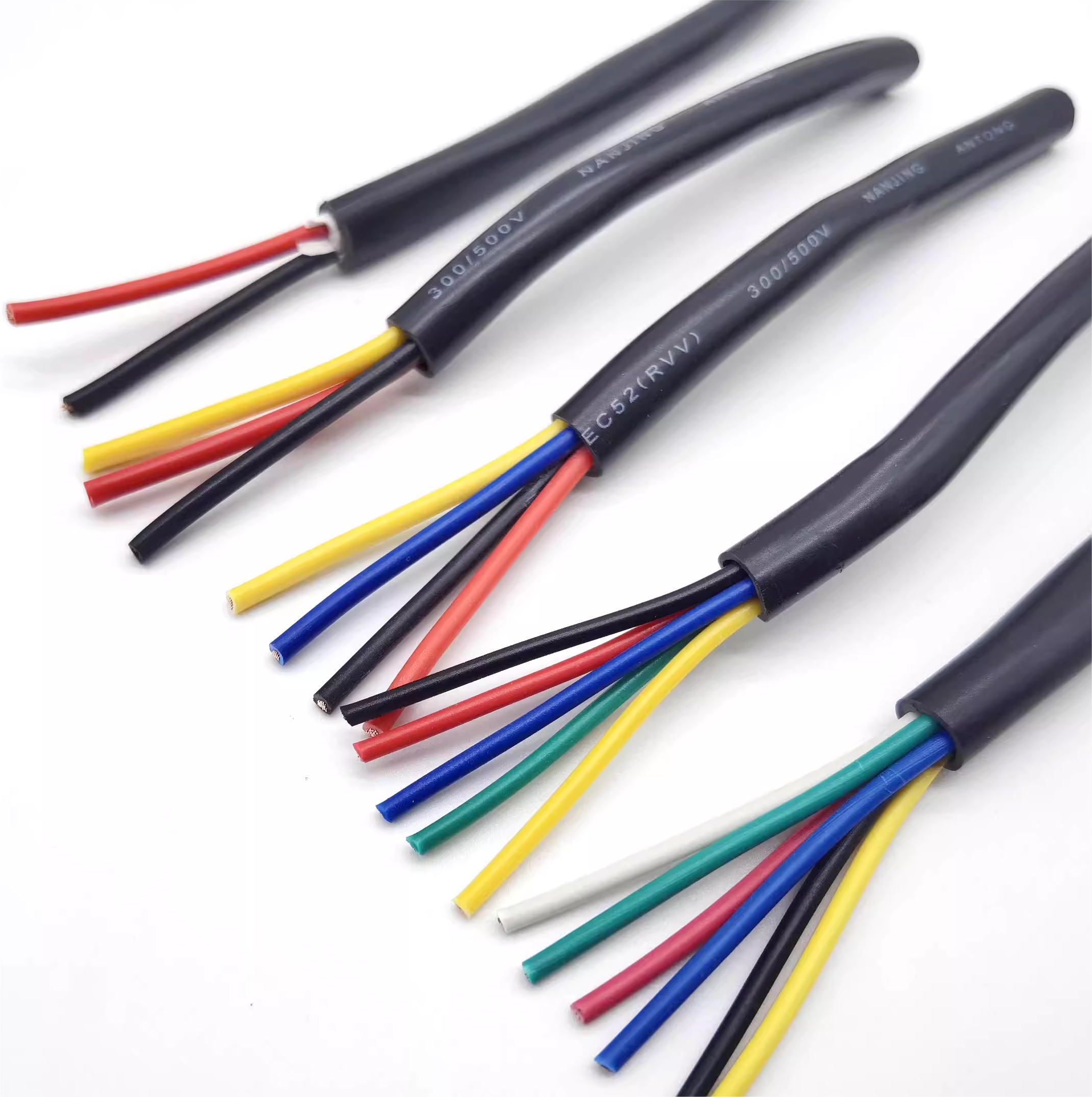

Selecting by Number of Conductors (Determines Functionality, Suits Different Needs)
The more conductors, the more complex the functions that can be achieved. The applicable scenarios for different numbers of conductors are as follows:

2-core: Live wire + neutral wire, suitable for lighting, two-wire appliances, and low-power equipment (e.g., light fixtures, small fans);
3-core: Live wire + neutral wire + ground wire, suitable for grounded appliances, high-power equipment, and scenarios with high safety requirements (e.g., air conditioners, water heaters, temporary construction site outlets);

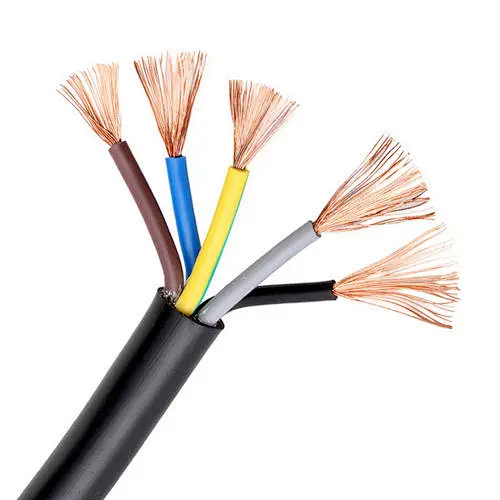

4-core/5-core: Multiple power circuits + signal lines, suitable for smart home systems, industrial control, and multi-device coordination (e.g., access control systems, PLC controllers);
6-core and above: Multi-channel signal control, suitable for complex automated equipment, building intercom systems, and multi-channel surveillance (e.g., residential building intercom systems).

Selection Considerations (Key Points to Avoid Pitfalls)

Humid/outdoor environments: Select the waterproof RVV-W type, which features a thicker jacket and superior moisture resistance to prevent insulation failure caused by moisture corrosion;
High-temperature environments: Select flame-retardant/high-temperature-resistant RVV, which can operate at temperatures up to 90°C, resists softening and aging, and is suitable for high-temperature workshops and outdoor environments exposed to direct sunlight;
High-interference environments: Prioritize shielded RVVP cables to prevent signal distortion and equipment malfunctions (e.g., when routing cables near transformers or variable frequency drives);
Long-distance cabling: Appropriately increase the cross-sectional area to reduce power loss and prevent cable overheating (e.g., for runs exceeding 50 meters, select a cable one size larger than the standard specification).

VI. Five Key Tips for Avoiding Pitfalls in Procurement and Construction: Staying Clear of Non-Standard Product Hazards

The RVV cable market is a mixed bag, flooded with non-standard products. To cut costs, many suppliers cut corners (such as using thinner copper cores, thinner insulation, or shorting on length). Using non-standard cables not only shortens their lifespan but also poses serious safety hazards, such as electrical leakage and fires. Keep the following 5 points in mind during procurement and installation to completely avoid the pitfalls of non-standard products:

Strictly Choose National Standards, Reject Non-Standard Products (Core Pitfall Avoidance Point)
The criteria for identifying national standard RVV cables are simple and can be distinguished at a glance:

Copper Core: Bright golden yellow, free of impurities and discoloration; does not break easily when bent by hand; uniform cross-section;
Insulation: Clear color, abrasion-resistant; does not peel off or crack easily when rubbed by hand; no pungent odor;
Sheath: Uniform luster, substantial texture; does not tear easily when stretched by hand; tightly wrapped with no looseness;
Markings: The cable outer sheath is printed with clear model numbers, specifications, standard numbers (GB/T 5023.5-2008), and manufacturer information; the markings are abrasion-resistant and do not rub off easily;
Accurate Length and Diameter: National standard cables are strictly manufactured to the specified length with no shortfalls; the wire diameter and cross-sectional area comply with standards.
Non-standard RVV cables, on the other hand, are the opposite: the copper core is thinner, contains more impurities, and appears blackened and dull; the insulation layer is thinner and prone to brittle cracking; the sheath is dull and emits a pungent odor; the markings are blurry and easily rubbed off; there are significant shortfalls in length; and long-term use makes them highly prone to overheating, aging, electrical leakage, and fire hazards.

Do not mix rigid and flexible wires; suitability for the application is paramount
Use BV rigid wire for fixed, wall-embedded installations, and RVV flexible wire for movable connections; do not mix the two throughout the entire system. It is strictly prohibited to use RVV cables for wall embedding, as the sheath is prone to corrosion and damage from cement, leading to insulation failure. Similarly, BV rigid wire must not be used for portable devices or in scenarios involving frequent bending, as rigid wire is prone to breaking under stress, causing circuit failures.
Do not install damaged cables; implement proper protective measures
RVV cables must not be directly embedded in concrete walls, nor should they come into contact with sharp objects (such as rebar or wire) or oils. When installing through conduits, avoid excessive pulling or bending to prevent damage to the sheath or cracking of the insulation layer. For outdoor use, ensure proper waterproofing to prevent exposure to rainwater; in high-temperature environments, use high-temperature-resistant RVV cables to prevent the sheath from softening.
Distinguish Between RVV and RVVP; Do Not Blindly Choose Shielded Cables
For standard applications (home wiring, basic surveillance, and appliance connections), RVV is sufficient and offers excellent value for money. Shielded RVVP cable is only necessary in environments with strong interference (near transformers, inverters, high-power equipment, or where sensitive signals need to be transmitted) to prevent signal distortion and equipment malfunctions. Blindly selecting shielded cable only increases costs and serves no purpose.
Select the appropriate gauge based on needs; do not unnecessarily increase the size
Select cable specifications based on actual power and current requirements. 1.5mm² is sufficient for standard home appliances, while 2.5mm² is suitable for high-power appliances. Blindly choosing larger specifications only increases procurement costs and wastes resources. For example, 2×0.75 is sufficient for standard lighting control wires; there is no need to choose 2×1.0. For air conditioner power cords, 3×1.5 is sufficient; there is no need to choose 3×2.5 (unless it is a high-power central air conditioning system).

Conclusion

As the “flexible guardian” of the low-voltage and low-current field, RVV cable offers none of the rigidity of BV hard wire or the high cost of shielded cable. Instead, with its flexibility, dual protection, comprehensive range of specifications, and excellent value for money, it has become the top choice for home wiring, low-voltage signal transmission, industrial equipment connections, and temporary power applications.
Unlike BV hard-wires buried in walls, RVV cables are more commonly found in “visible, frequently accessed” wiring scenarios. Their quality directly impacts electrical safety and equipment stability—the proper illumination of a light, the stable operation of a surveillance camera, and the safe use of home appliances all depend on a high-quality RVV cable.
Choosing a genuine RVV cable that meets national standards may seem like a minor detail, but it is actually a responsible choice for home safety and project quality. Whether you’re renovating your own home, remodeling an older property, installing low-voltage systems, or handling industrial cabling, keep these principles in mind: “Choose the right application, prioritize national standards, ensure proper specifications, and follow installation guidelines.” Reject non-standard, substandard cables and let this flexible “all-purpose sheathed cable” safeguard every instance of safe electricity use.
After all, whether it’s power cables or other construction materials, quality and rigor are always the foundation of success.
