Structure
Description
Application
submarine communications cable is a cable laid on the sea bed between land-based stations to carry telecommunication signals across stretches of ocean, which can suit for seabed and sea area ambient condition, ocean physics characteristic and requirements of laying underwater, with waterproof, anti-corrosion, good machine performance and so on.
Main Characteristics
The submarine cables made by our company is armoured with high-tensile steel wire and used with technologies of water-proof and corrosion-proof to ensure the superior properties, test are performed in accordance with IEC60055, IEC60502 and methods recommended.
| Insulation Material | XLPE |
| Material Shape | Round Wire |
| Certification | ISO, CCC, CE. CNAS |
| Brand | Qifan |
| Staff | 2760 |
| Vcv OriginalTransport Package | German and Finnish |
| Trademark | Ship Loading |
| HS Code | XIJIANGYUE |
| Sheath Material | out Service |
| Wire Core Material | Annealed Soft Copper |
| Model | Submarine Cable |
| Standard | IEC 60840 Cigre 496, Cigre 623 |
| Engineer | 260 |
| Vcv Brand | Maillefer / Troester |
| Specification | 150-1600mm2 |
| Origin | China |
| Production Capacity | 5000km/Year |
Product Description

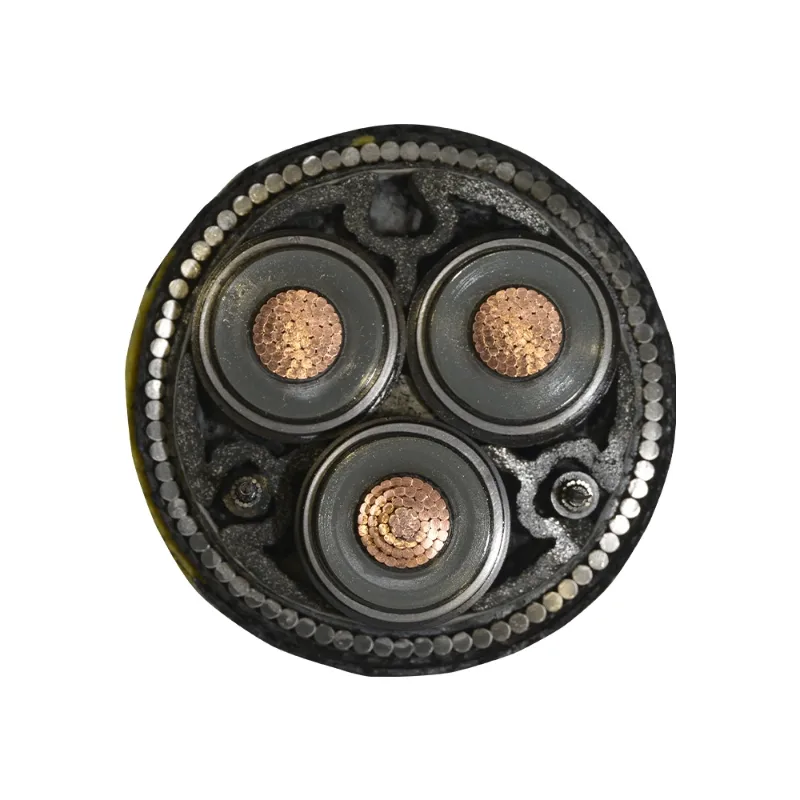

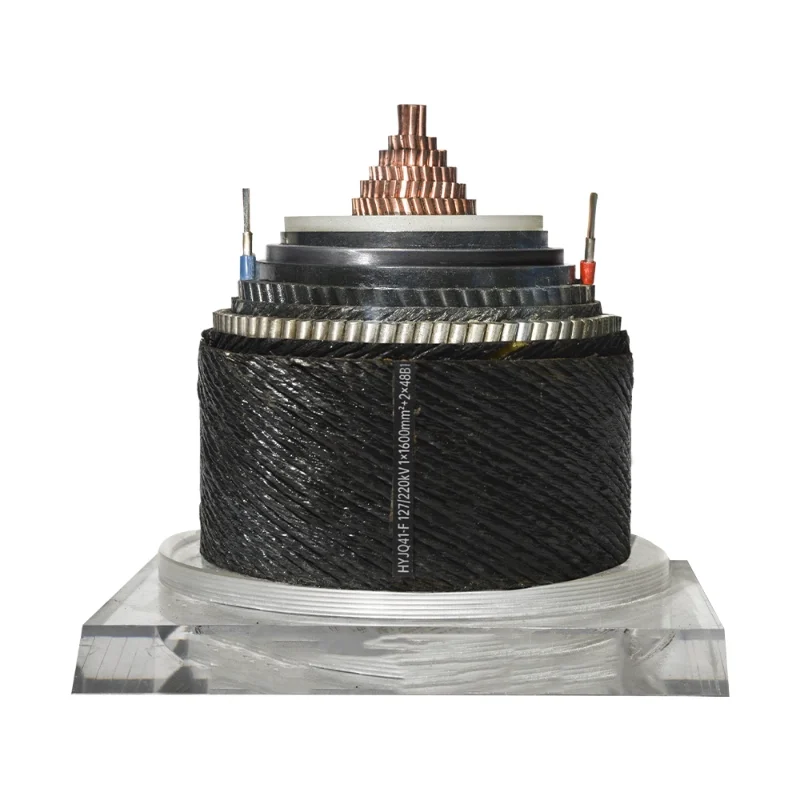

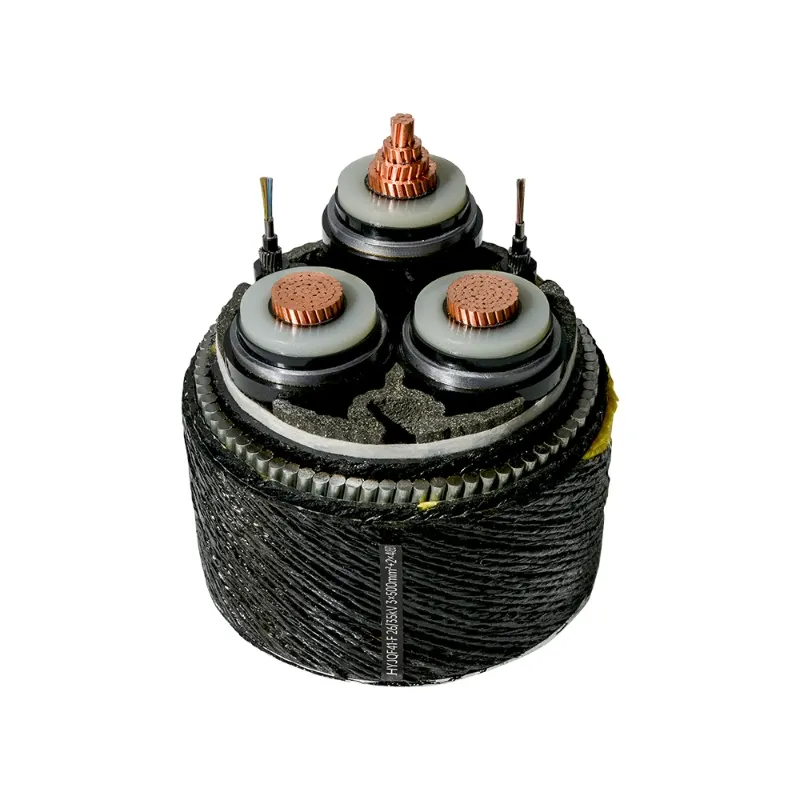

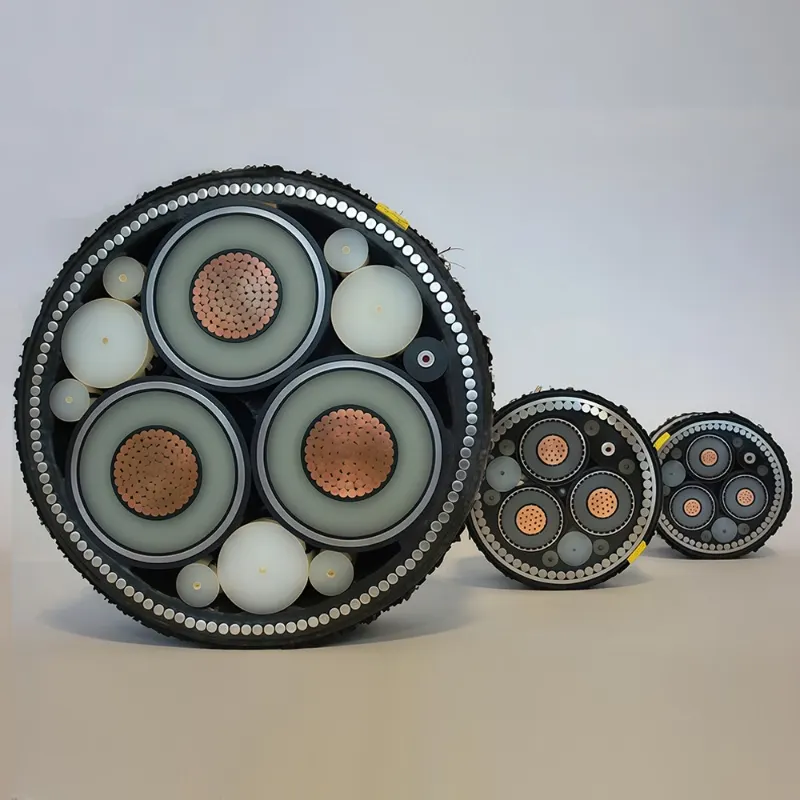

Copper conductor XLPE Insulated High Voltage AC 30kV 35 kV 66kV 132kV Submarine Cable

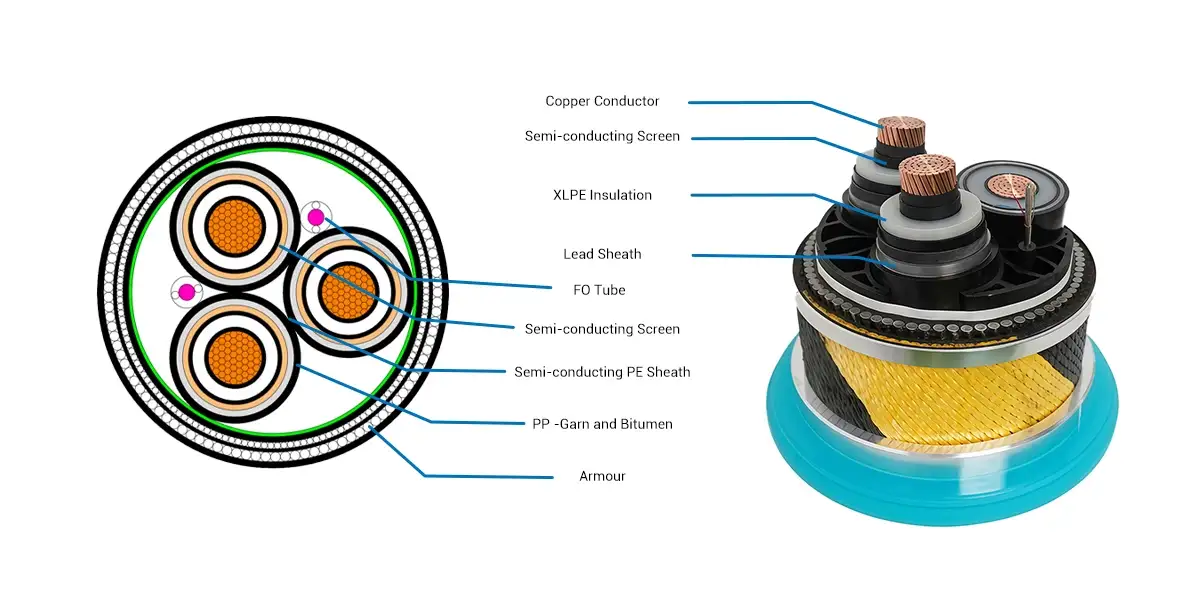

Submarine Cable
1. Conductor: Copper Conductor
2. Conductor Screen: Semi-conductive materials extruding layer
3. Insulation: XLPE
4. Insulation Screen: Semi-conductive materials extruding layer
5. Waterproof Layer: semi-conductive waterproof strip
6. Metal Screen: Lead Sheath
7. Sheath: PE
8. Fibre-optic Element: Fibre optic cable.
9. Separator: Binder tapes
10. Lapped inner layer: geled fabric and bitumen
11. Amouring: Galvanized steel wires filled with bitumen compound.
12. Lapped inner layer
13. Galvanized steel wires filled with bitumen compound.
14. Serving
Reference Standards
CIGRE Recommendations: CIGRE 496, CIGRE 623.
Types & Purposes
For offshore wind farm
-Export cable to transport the total generated power from offshore substation to onshore substation
For interconnection
-Interconnecting grids of countries
-Power supply from mainland to isolated islands
