Application
Medium voltage XLPE insulation power cable is suitable for use in rated AC voltage 6~35kV transmission and distribution Iines.Depending on different protective layer ,it can be laid separately in air, cable tray, indoor wall bracket, cable box, direct burial underground , cable trenches, pipes and etc.
Main Characteristics

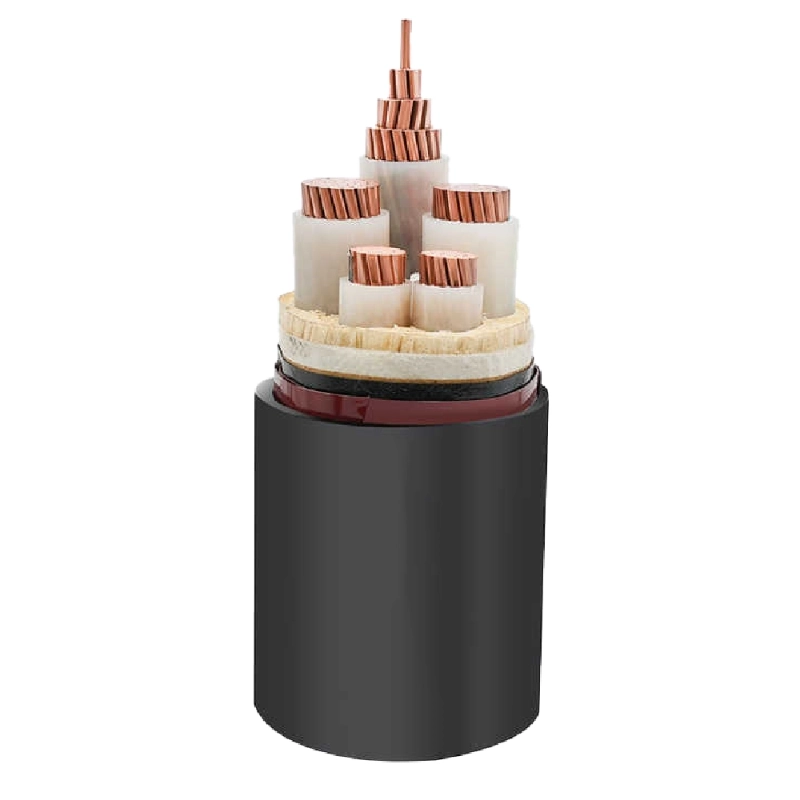

XLPE INSULATED MV ARMORED POWER CABLES

Technical Data	European
XLPE-insulated power cables to DIN VDE 0276 part 620, HD 620 S1 and IEC 60502 Temperature Range During installation up to -20°C/-4°F Operating Temperature Max. +90°C/194°F Short Circuit Temperature +250°C/482°F (short circuit duration up to 5 sec.) Nominal Voltages U₀/U 6/10 kV, 12/20 kV, 18/30 kV	Operating Voltages for 6/10 kV = max. 12 kV 12/20 kV = max. 24 kV 18/30 kV = max. 36 kV Test Voltages for 6/10 kV = 15 kV 12/20 kV = 30 kV 18/30 kV = 45 kV Minimum Bending Radius During installation max. 15x cable Ø Power Ratings Table See Technical Information

Specification

Table 1 Single core CU(AL)/XLPE/CTS/PVC/AWA/PVC

No. & CSA	Conductor	XLPE insulation	Copper tape screen	Aluminum wire armor	Outer sheath		Weight kg/km
No. & CSA	Approx. diameter mm	Nominal thickness mm	Nominal thickness mm	Nominal diameter of Aluminum wire mm	Nominal thickness mm	Diameter mm	YJV72(CU)	YJLV72(AL)
1*25	6.0	4.5	0.12	1.6	1.9	28.6	1109	957
1*35	7.0	4.5	0.12	1.6	1.9	29.6	1245	1032
1*50	8.2	4.5	0.12	1.6	1.9	30.8	1415	1128
1*70	10.0	4.5	0.12	2.0	2.0	33.6	1793	1371
1*95	11.6	4.5	0.12	2.0	2.1	35.4	2116	1536
1*120	13.0	4.5	0.12	2.0	2.1	36.8	2405	1674
1*150	14.6	4.5	0.12	2.0	2.2	38.6	2772	1860
1*185	16.2	4.5	0.12	2.0	2.2	40.2	3176	2038
1*240	18.4	4.5	0.12	2.0	2.3	42.6	3793	2318
1*300	20.6	4.5	0.12	2.5	2.4	46.2	4624	2780
1*400	23.8	4.5	0.12	2.5	2.5	49.6	5649	3237
1*500	26.6	4.5	0.12	2.5	2.6	53.1	6820	3758
1*630	30.0	4.5	0.12	2.5	2.7	56.7	8276	4358
1*800	34.0	4.5	0.12	2.5	2.9	61.3	10133	5146

Table2 Three core CU(AL)/XLPE/CTS/PVC/SWA/PVC

No. & CSA	Conductor	XLPE insulation	Copper tape screen	Steel wire armor	Outer sheath		Weight kg/km
No. & CSA	Approx. diameter mm	Nominal thickness mm	Nominal thickness mm	Nominal diameter of steel wire mm	Nominal thickness mm	Diameter mm	YJV32(CU)	YJLV32(AL)
3*25	6.0	4.5	0.1	2.50	2.7	52.5	4847	4387
3*35	7.0	4.5	0.1	2.50	2.8	55.0	5410	4769
3*50	8.2	4.5	0.1	2.50	2.9	57.8	6052	5185
3*70	10.0	4.5	0.1	2.50	3.0	62.1	7150	5879
3*95	11.6	4.5	0.1	2.50	3.1	65.8	8268	6519
3*120	13.0	4.5	0.1	2.50	3.2	69.2	9356	7151
3*150	14.6	4.5	0.1	3.15	3.4	74.6	11513	8762
3*185	16.2	4.5	0.1	3.15	3.5	78.2	12969	9540
3*240	18.4	4.5	0.1	3.15	3.7	83.6	15228	10782
3*300	20.6	4.5	0.1	3.15	3.8	88.7	17596	12038
3*400	23.8	4.5	0.1	3.15	4.1	96.4	21181	13908
3*500	26.6	4.5	0.1	3.15	4.3	103.8	25227	15995
3*630	30.0	4.5	0.1	3.15	4.5	111.7	30192	18379
3*800	34.0	4.5	0.1	3.15	4.8	121.2	36371	21337

Change Language

Certified Cable Manufacturer’s XLPE Insulated Medium Voltage 8.7/15kV Power Cable Industrial Grade for Overhead Computer Bulk

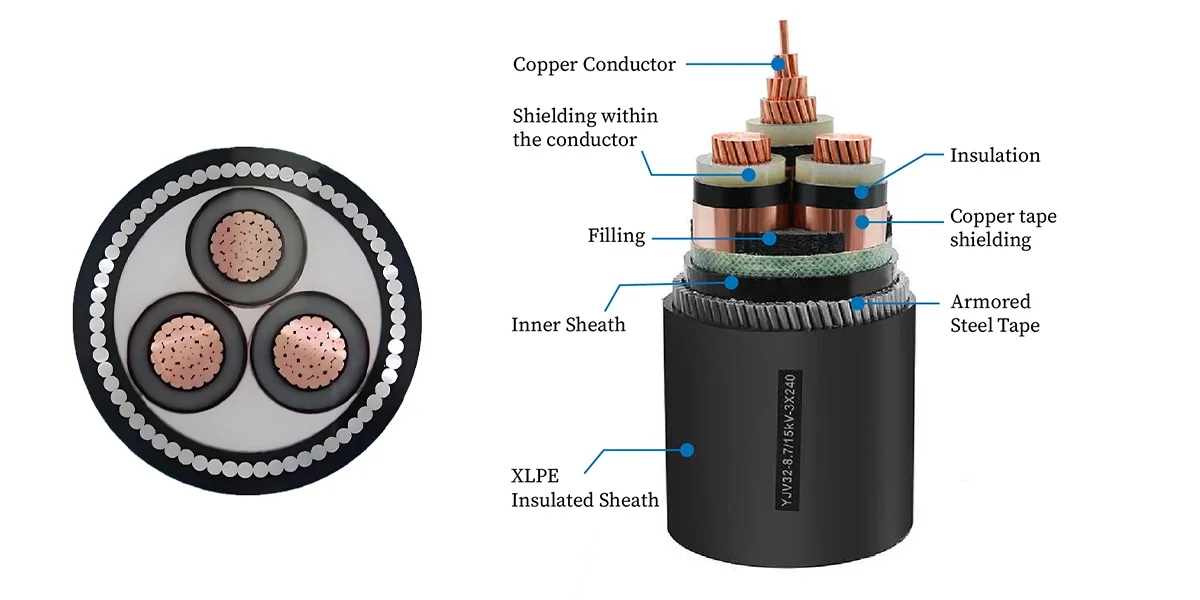

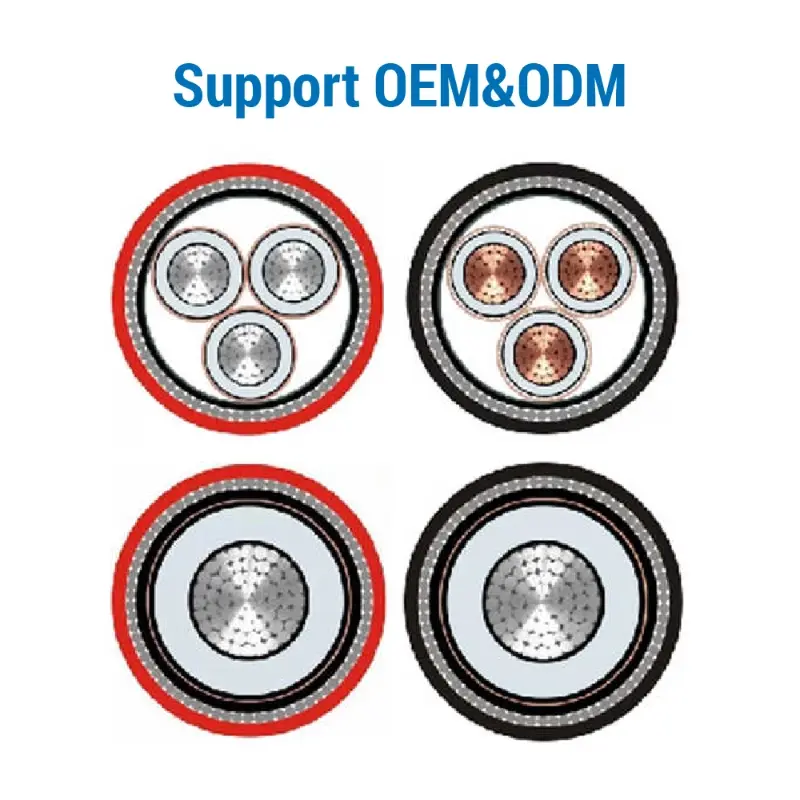

Structure
