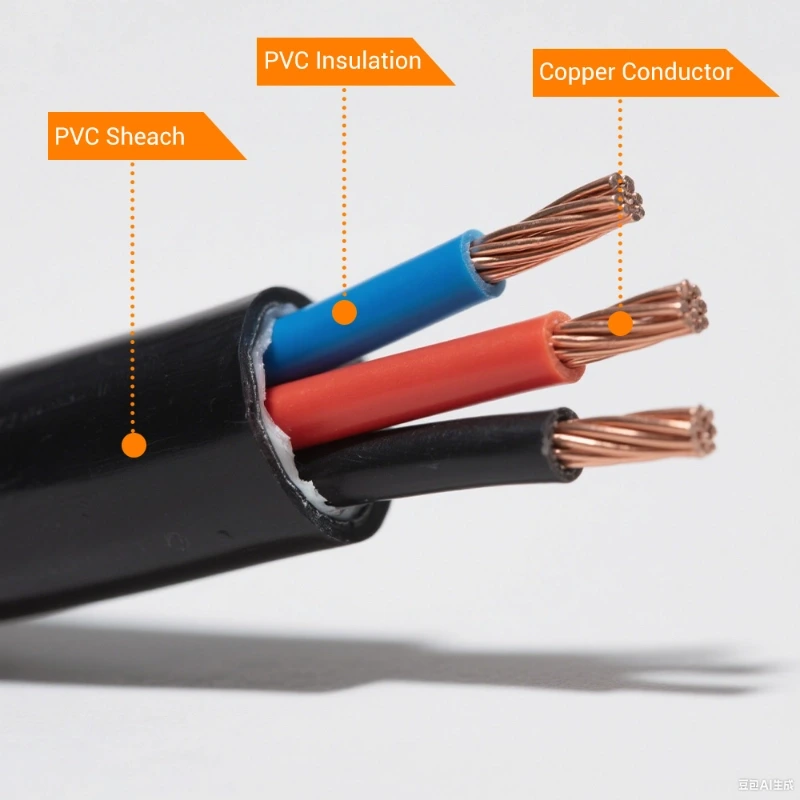

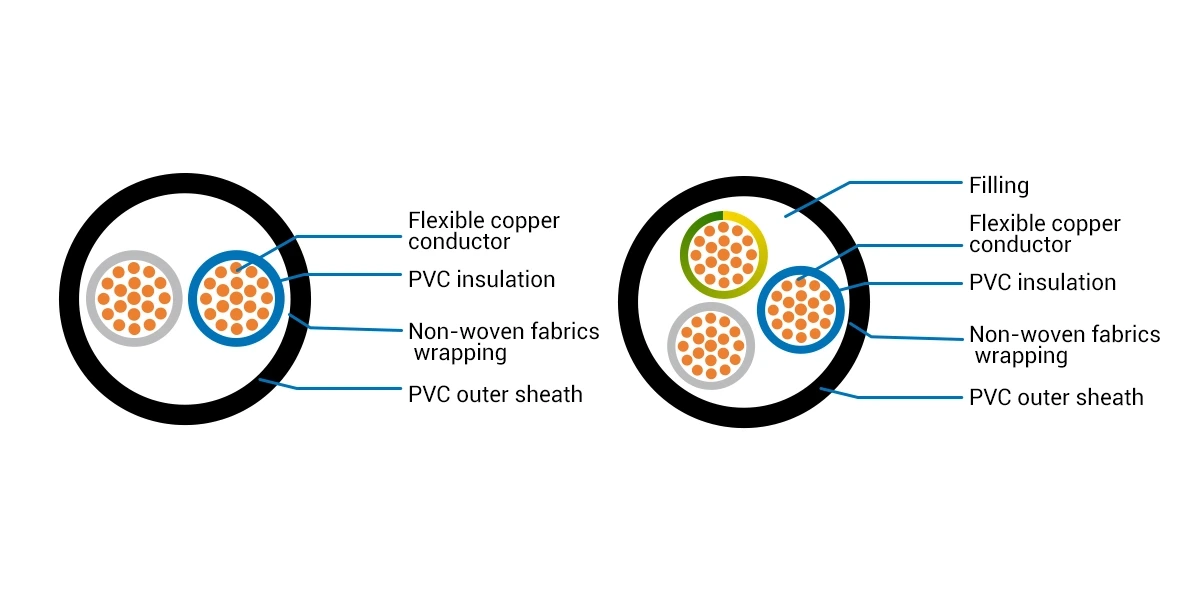

Structure
Description
Application
Home appliances and equipment:
Power connection cables: such as the final section of power cables for home appliances like washing machines, refrigerators, air conditioners, rice cookers, vacuum cleaners, etc.
Extension cord sockets: The internal cables and external casing of portable power strips are typically made of RVV cable.
Indoor power distribution wiring:
Used for fixed installations within walls or ceilings, such as lighting circuits or outlet circuits (requiring conduit or cable trays for protection).
Commonly used for powering devices in smart home systems, such as smart curtain motors or projectors.
Signal transmission and control:
Security systems: Intercom systems, access control systems (such as electric locks and card readers), and surveillance cameras (which transmit both power and signals).
Control systems: Connecting low-voltage control units in various instruments, meters, and automated control devices.
Main Characteristics
Standard：GB/T 5023-2008,IEC60227,BS6004,DIN VDE 0281
Copper conductor PVC insulated and sheathed flexible cord
| Model | RVV | Product Name |
| 60227 IEC 52(RVV) | Standards | Light PvC sheathed flexible cord |
| 60227 IEC 53(RVV) | GB/T5023-2008 IEC 60227 | Ordinary PvC sheathed flexible cord |
| 60227 IEC 56(RVV90) | GB/T5023-2008 IEC 60227 | Ordinary PvC sheathed flexible cord |
| 60227 IEC 57(RVV90) | GB/T5023-2008 IEC 60227 | Ordinary PVC sheathed flexible cord |
| RVV | JB/T8734-2016 | Copper conductor PvC insulatedand sheathed flexible cord |
|
Model
|
Ratedvoltage V
|

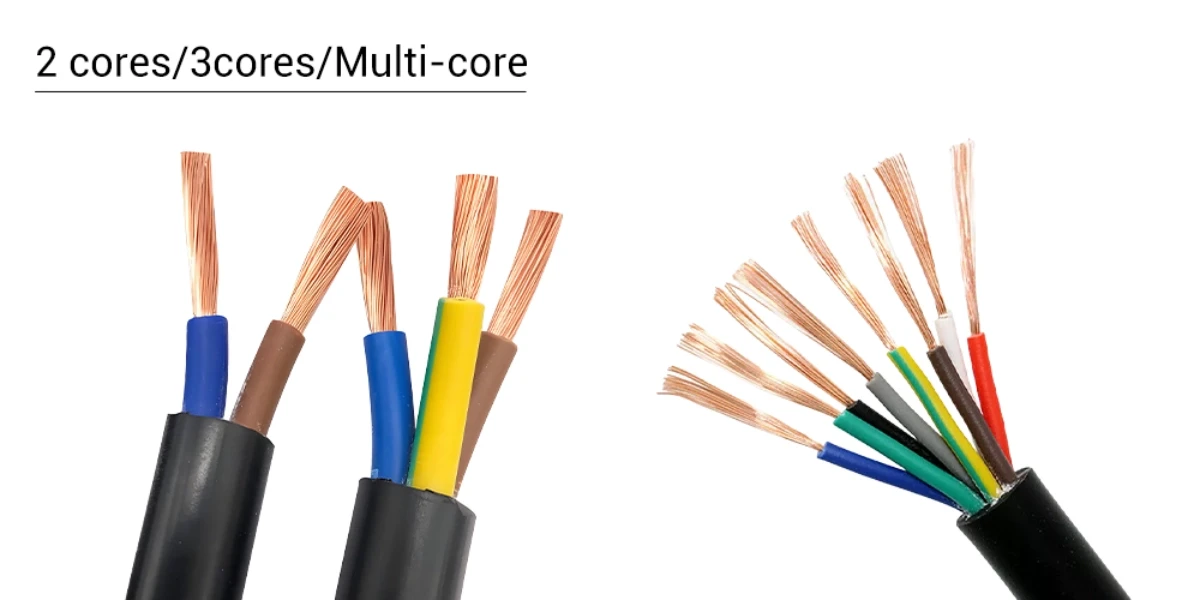

No.of cores
|
Nominal cross-sectional area of
conductor(mm²) |
Max. operating temperature of the conductor
|
|
60227 IEC 52(RVV)
|
300/300
|
2.3
|
0.5 〜0.75
|
70°C
|
|
60227 IEC 53(RVV)
|
300/500
|
2,3~24
|
0.75-6
|
70°C
|
|
60227 IEC 56(RVV90)
|
300/300
|
2,3
|
0.5-0.75
|
90°C
|
|
60227 IEC 57(RVV-90)
|
300/500
|
2,3,4,5
|
0.75 〜2.5
|
90°C
|
|
RVV
|
300/500
|
2~41
|
0.5-10
|
70°C
|
Note： The special types of fire-retardant, flame-resisting, low-fume and low-halogan as well as acid-alkaliproof for these cables may be supplied upon requests.
