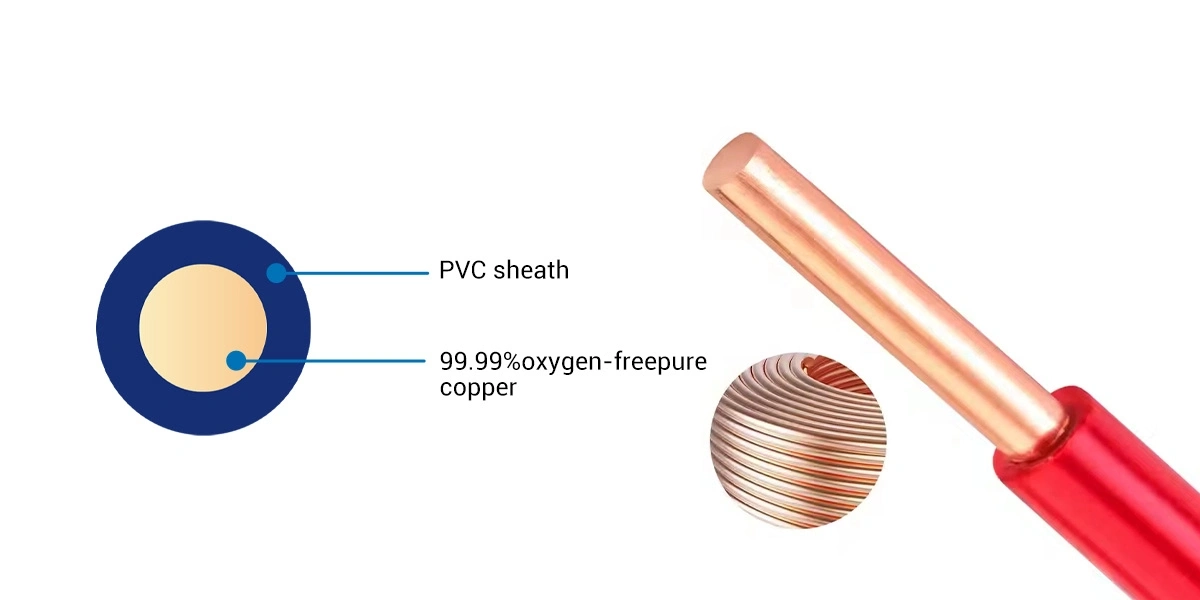

Structure
Description
Application
For fixed installation in most areas and on open deck on shipboard and offshore units.
Main Characteristics
Products Description
Product Name 1.5mm 2.5mm 4mm 6mm building pvc insulation copper electricity electric
cable wire for house wiring
Coductor High quality oxygen-free Copper
Insulation PVC
Colors Assorted upon request
Voltage 300/500V, 450/750V
Core 1-5 Cores
Cross Section(mm2) 0.5~400mm²
Application These cables are used in connecting for audio appliances,home appliances,
small electric tolls and instruments.
Certification CCC ISO certificated/ Strict QC / Prompt delivery
OEM/ODM Available
Sample Free, freight charge prepaid or negotiation
Delivery Detail 3-7 days after confirming the order
It is suitable for household appliances with AC rated voltage of 450/750V and below, household decoration, automation devices, power lighting, complete sets of electrical control circuits, mechanical equipment wiring and other occasions.
The long-term working temperature of the wire should not exceed +75°C, and the temperature during installation or movement of the wire should not be lower than -20°C.

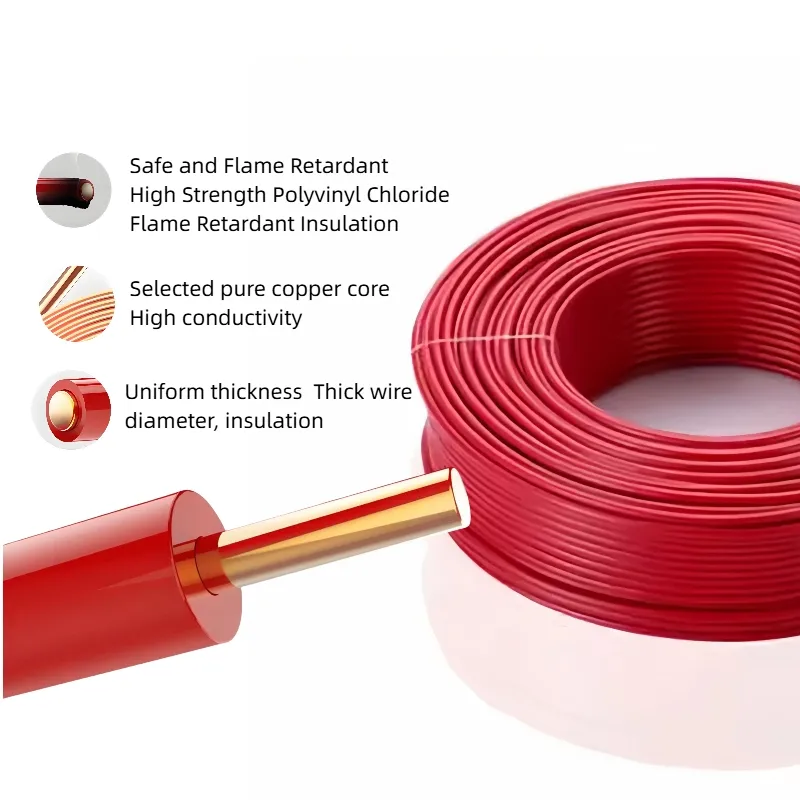

This product has good electrical insulation properties, physical and mechanical properties and non-flammable properties, soft and reliable, convenient and durable.

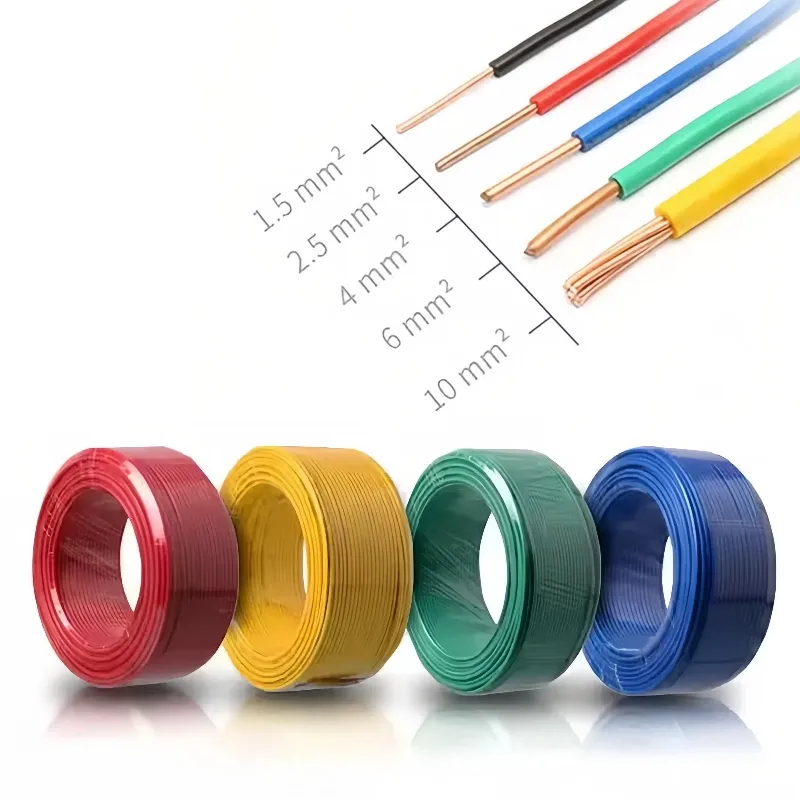

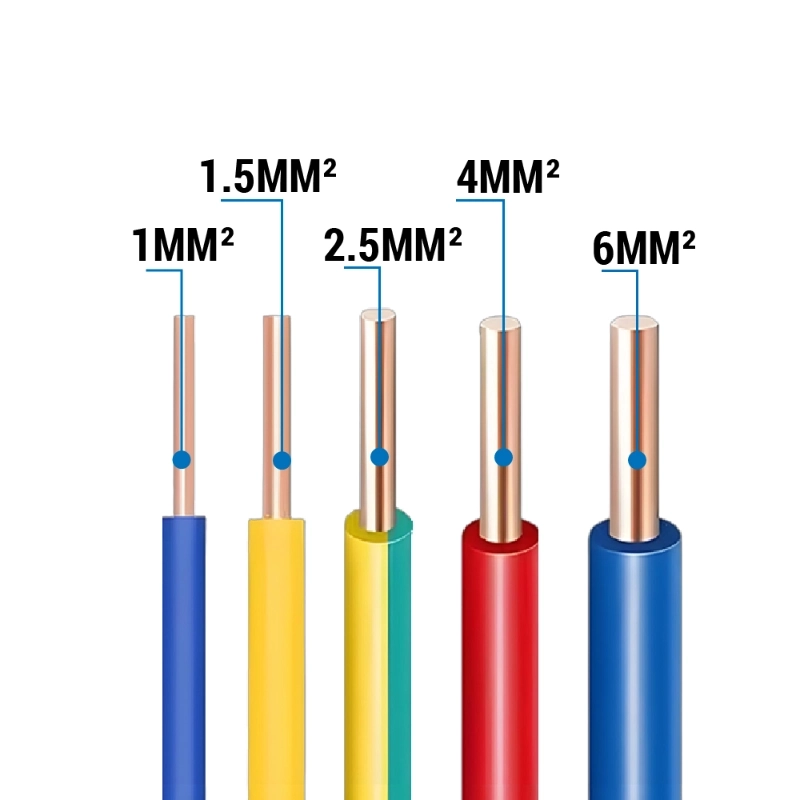

The colors of this product are: yellow, red, green, blue, black, white, gray, two-color (yellow-green), brown. Wire specifications are: 0.5 mm², 0.75 mm², 1 mm², 1.5 mm², 2.5 mm², 4 mm², 6 mm², 10 mm², 16 mm², 25 mm², 35 mm², 50 mm², 75 mm², 95 mm², 120 mm², 150 mm², 185 mm², etc.

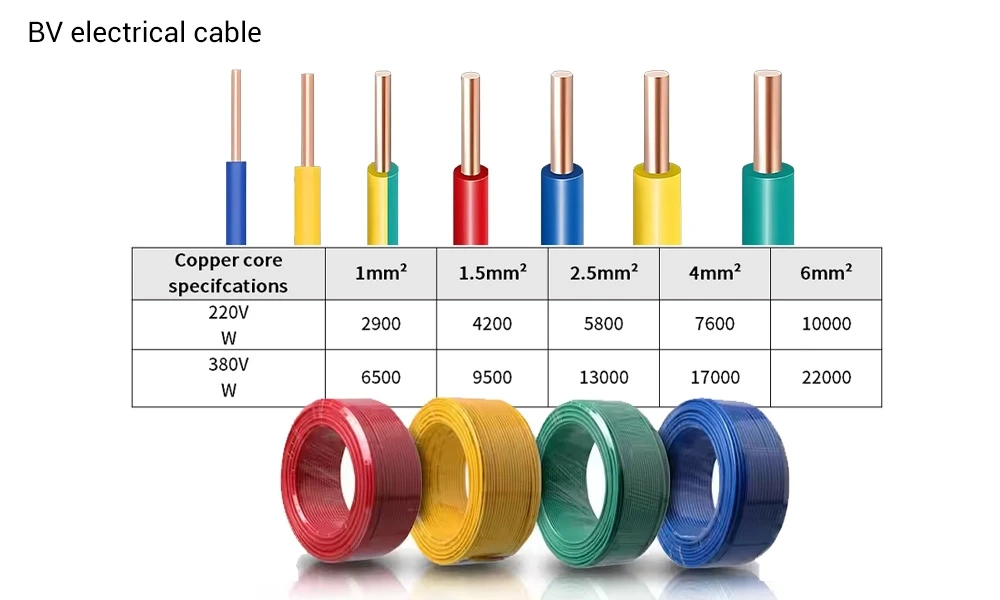

| Type | Cross Section | Area mm2 | Reference Application |
| BV | 1.5 | Lighting equipment | |
| 2.5 | Lighting equipment, socket, high-powerelectrical appliance | ||
| 4 | Air-conditioner, water heater | ||
| BVR | 1.5 | Lighting equipment, socket | |
| 2.5 | Air-conditioner, socket | ||
| 4 | Lighting equipment, socket, high-powerelectrical appliance | ||
| 6 | Central air-conditioner | ||
| 10 | Home entrance wire | ||
Product technical parameters
|
Nominal section alarea mm2 |
ConductorNo/Dia. mm |
Nominal lnsulated thick mm |
MaxoverallDia. mm |
Conductor Resistance at 20 |
Mininsulate dresistanceat70 M2/km |
Weight Kg/km |
||
| Cu | AI | Cu | AI | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | 0.011 | 19.2 | ||
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | 0.01 | 20.6 | ||
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.01 | 30.8 | 15 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.007 | 65 | 29 |
| 10 | 7/1.35 | 1 | 7 | 1.83 | 3.08 | 0.0065 | 110 | 52 |
| 16 | 7/1.70 | 1 | 8 | 1.15 | 1.91 | 0.005 | 170 | 70 |
| 25 | 7/2.14 | 1.2 | 10 | 0.727 | 1.2 | 0.005 | 270 | 110 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.004 | 364 | 150 |
| 50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.641 | 0.0045 | 500 | 200 |
| 70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.443 | 0.0035 | 688 | 269 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.32 | 0.0035 | 953 | 360 |
| 120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.253 | 0.0032 | 1168 | 449 |
| 150 | 37/2.25 | 1.8 | 21 | 0.124 | 0.206 | 0.0032 | 1466 | 551 |
| 185 | 37/2.52 | 2 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808 | 668 |
