Structure
Description
Application
Photovoltaic (PV) cables specialize in connecting solar panels and inverters. They feature exceptional resistance to UV radiation, extreme temperatures, weather, and abrasion.
Main Characteristics
1/2/3/4/5/6/8/10m 4/6 mm² Solar Panel Extension Cables Cable specifications.
Cable length:
3 m, 6 m, 9 m, 10 m, 20 m
Cable cross-sectional area: 4 mm² (12 AWG) or 6 mm² (10 AWG)
Cable specifications

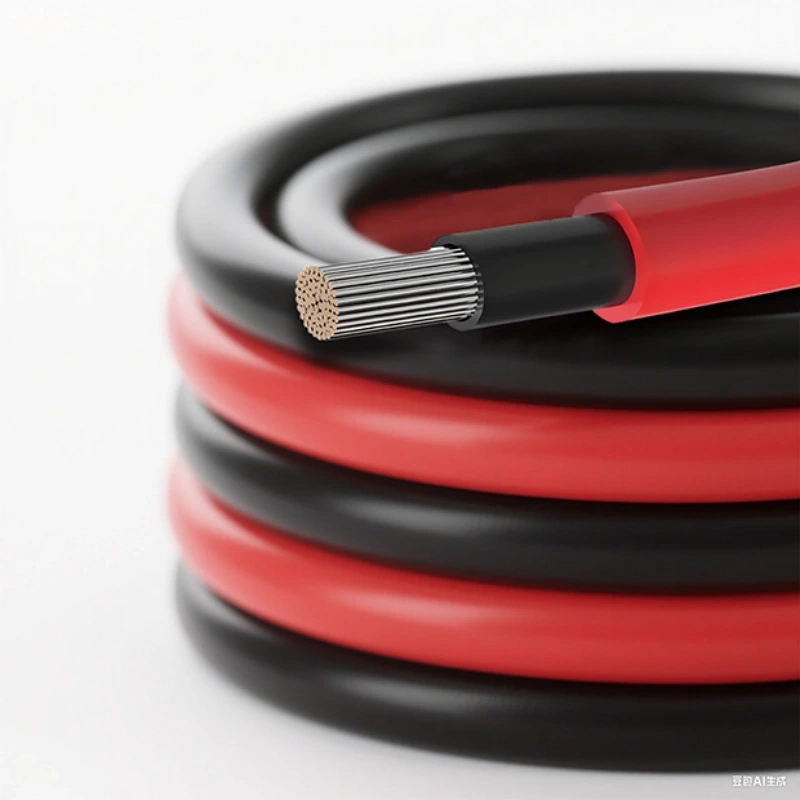

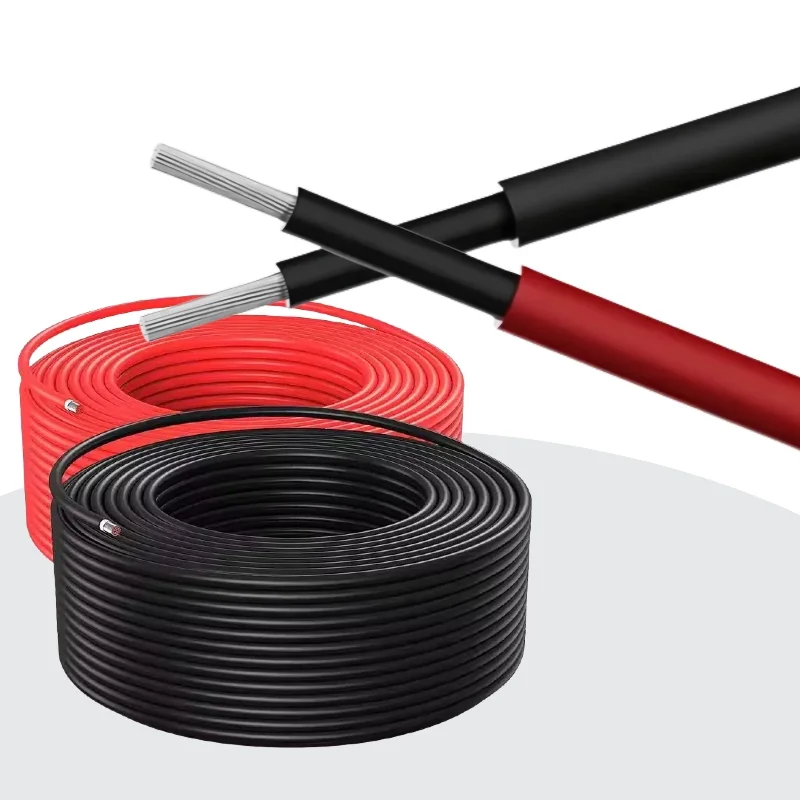

Cable conductor: Tineed copper
Cable insulation: Double-layer XLPE
Rated voltage: DC 1.5 kV / AC 0.6–1 kV
Rated current: 10–50 A
Standards: TUV, CE
Product Description
1.Executive Standard:
PV cable(solar cable) refers to original draft made out by PV system cable work team of German Standard
Committee(Technical Specification 2PFG1169/08.2007 in Rhein TUV company German).
2.No-haogen PV-Cable Type:
PV1-F: Tinned Flexible Copper Wire No Halogen PO Insulation&Sheath Photovoltaic System Cable.

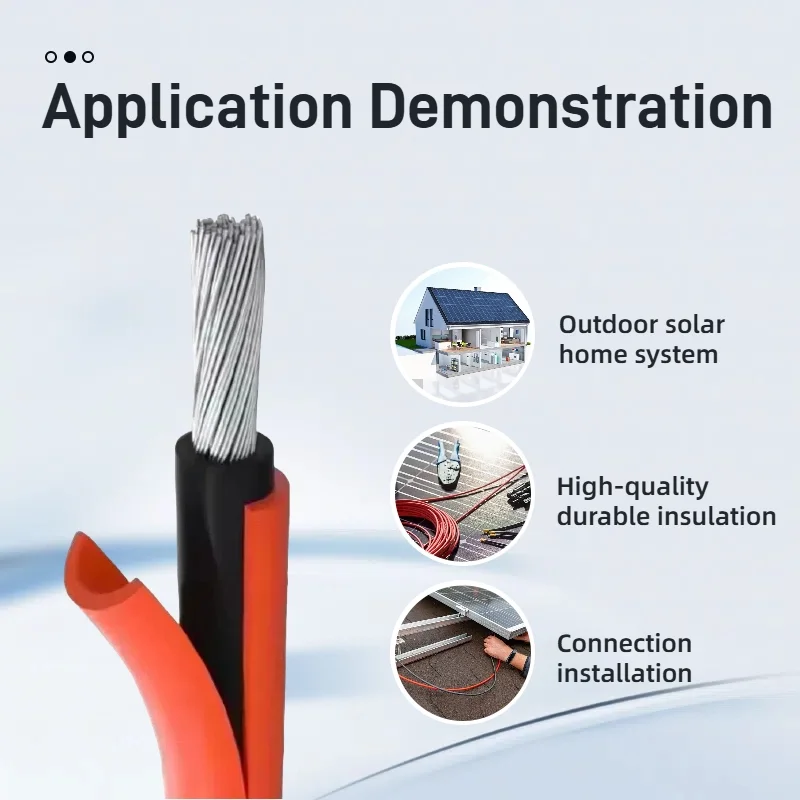

3. Application:

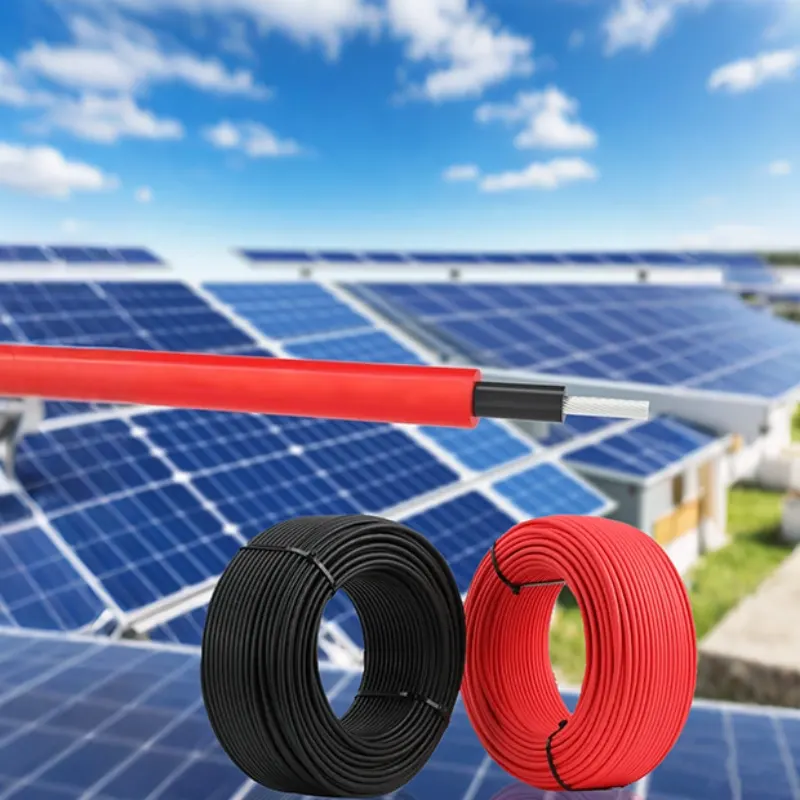

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor .
Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
| MODEL | EN50618:2014 H1Z2Z2-K 1×**mm2 DC 1500V |
| Conductor | Tinned copper wire,class 5 (as per IEC 60228) |
| Insulation | No Halogen PO insulation |
| Sheath | No Halogen PO sheath |
| rated voltage | AC 0.6/1KV |
| DC 1.8KV | |
| Temperature range | -40℃~+90℃,dry/ humidity |
| Max.working temperature of conductor | 120℃ |
| During short circuit | 200℃ |
| Standard | EN 2PFG 1169 |

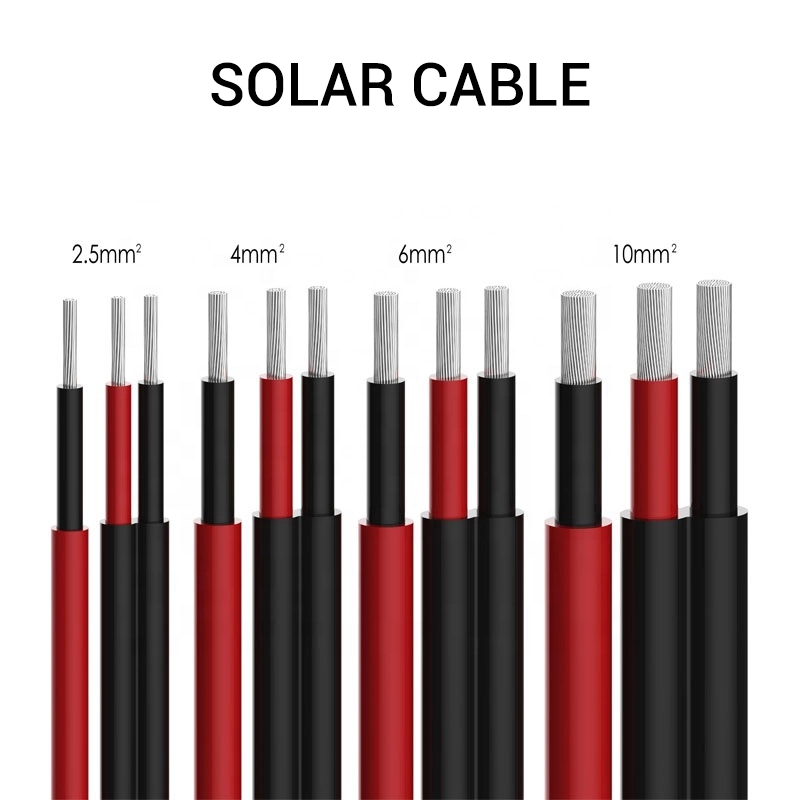

| type | Cross Sectional Area(mm2) | Conductor structure( Strand /mm) | diameter(mm) | insulation thickness(mm) | sheat thickness(mm) | cable diameter(mm) | DC resistance at 20°C(Ω/km) |
| PV1-F | 1.5 | 48/0.2 | 1.6 | 1.0 | 0.8 | 5.2 | 12.2 |
| PV1-F | 2.5 | 77/0.2 | 2.0 | 1.0 | 0.8 | 5.6 | 7.56 |
| PV1-F | 4 | 56/0.3 | 2.6 | 1.0 | 0.9 | 6.4 | 4.7 |
| PV1-F | 6 | 84/0.3 | 3.2 | 1.0 | 0.9 | 7.0 | 3.11 |
| PV1-F | 10 | 77/0.41 | 4.4 | 1.0 | 0.9 | 8.2 | 1.84 |
| PV1-F | 16 | 119/0.41 | 5.5 | 1.0 | 1.1 | 9.7 | 1.16 |
| PV1-F | 25 | 189/0.41 | 6.5 | 1.2 | 1.2 | 11.3 | 0.734 |
| PV1-F | 35 | 244/0.41 | 7.5 | 1.2 | 1.2 | 12.3 | 0.529 |
