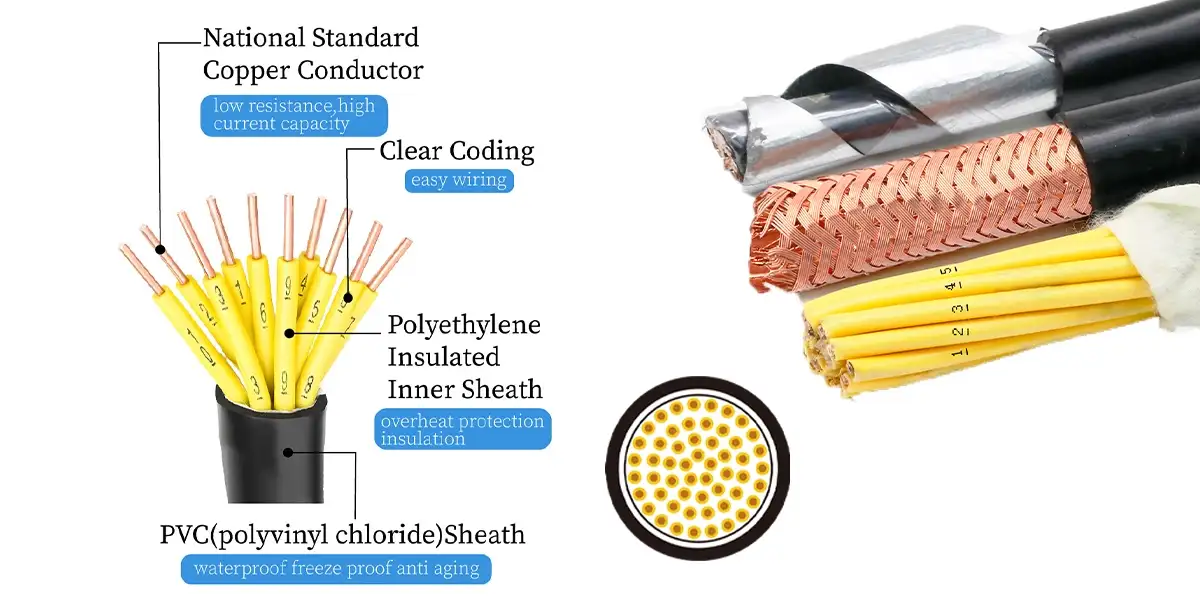

Structure
Description
Application
PVC insulated control cable for fixed installation in power equipment, lighting systems, and instrument wiring applications.
Main Characteristics
Excellent electrical performance
The cables are engineered to provide reliable electrical performance even in challenging industrial environments. They are able to handle increased voltages and currents, ensuring stable operation of connected equipment and machinery. The insulation and shielding techniques used in control cables minimize electromagnetic interference (EMI), which is critical to maintaining the integrity of sensitive signals and controls.
Improve Security And Compliance
In industrial environments, safety is paramount and control cables help create a safer working environment. They meet strict safety standards and certifications to resist cable damage, reduce electrical hazards, and protect personnel and equipment.
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.
2) Insulation: PVC
3) Sheath:PVC
4) Other special characteristics: Design and manufacture according to the requirements of customers.
1) Rated voltage: 300/500V, 450/750V, 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV,
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
| ype | Name | Rated | Number of | Section Area | Range of application |
|---|---|---|---|---|---|
| Voltage | cores | (mm2) | |||

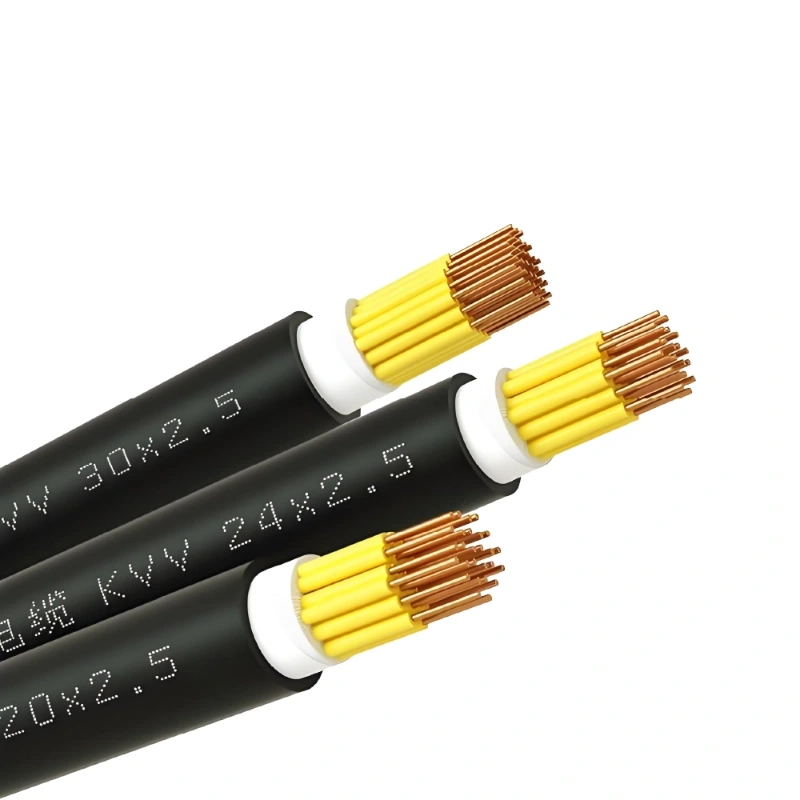

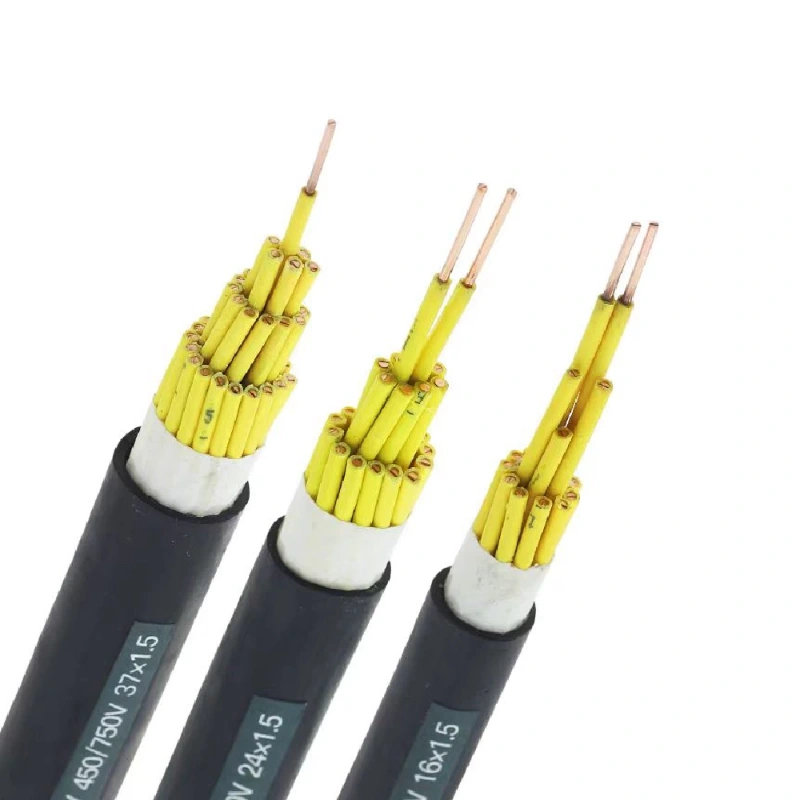

| KVV | Copper Conductor, | 450/750 | 2-61 | 0.75-2.5 | For laying indoors, in cable trench, pipelines and other fixed occasion |
| PVC Insulated and | 2-14 | 4-6 | |||
| Sheathed Control Cable | 2-10 | 10 | |||
| KVV22 | Copper | 7-61 | 0.75-1.5 | For laying indoors, in cable trench,directly buried pipeline and other fixed occasion, also can bear larger external mechanical forces |
|
| Conductor,PVC | |||||
| Insulated and Sheathed, | |||||
| Steel tape Armored | 4-61 | 2.5 | |||
| Control Cable | 4-14 | 4-6 | |||
| 4-10 | 10 | ||||

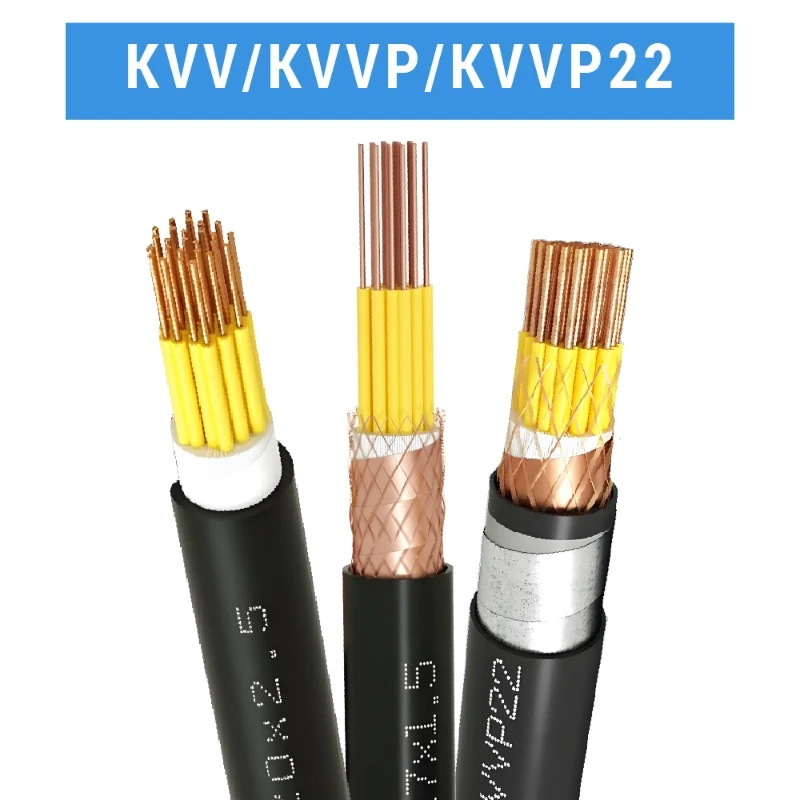

| KVVP | Copper Conductor, | 2-61 | 0.75-2.5 | For laying indoors,in cable trench, pipelines,etc, and somewhere that need fixed installation |
|
| PVC Insulated and | |||||
| Sheathed,Braiding | 2-14 | 4-6 | |||
| Shielded Control Cable | 2-10 | 10 | |||
| KVVP2 | Copper Conductor, | 4-61 | 0.75-2.5 | For laying indoors,in cable trench, directly buried pipeline and other fixed occasion,also can bear larger external mechanical forces |
|
| PVC Insulated and | |||||
| Sheathed,Copperta pe | 4-14 | 4-6 | |||
| Screened Control Cable | 4-10 | 10 | |||
| KVVR | Copper Conductor, | 4-61 | 0.75-2.5 | For laying indoors,where there is a requirement for mobile |
|
| PVC Insulated and | |||||
| Sheathed,Flexible | |||||
| Control Cable | |||||
| KVVRP | Copper Conductor,PVC | 4-61 | 0.75-1.0 | For laying indoors, where there is a requirement for mobile screen |
|
| Insulated and Sheathed, | |||||
| Braiding shielded | |||||
| Flexible Control Cable | 4-48 | 1.5-2.5 | |||

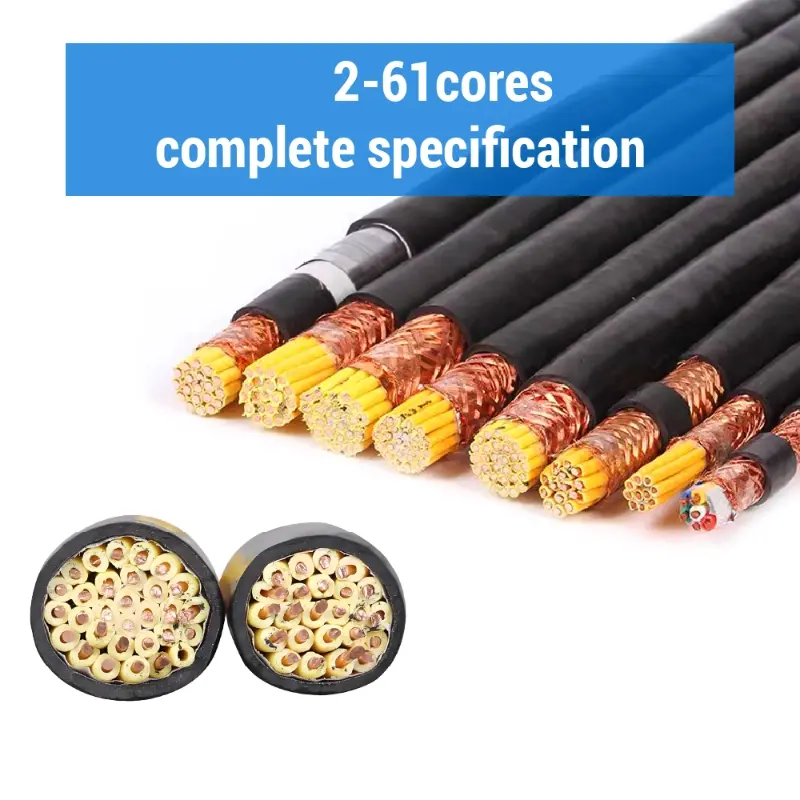

| Note: the recommended cores: 2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52 or 61 cores | |||||
