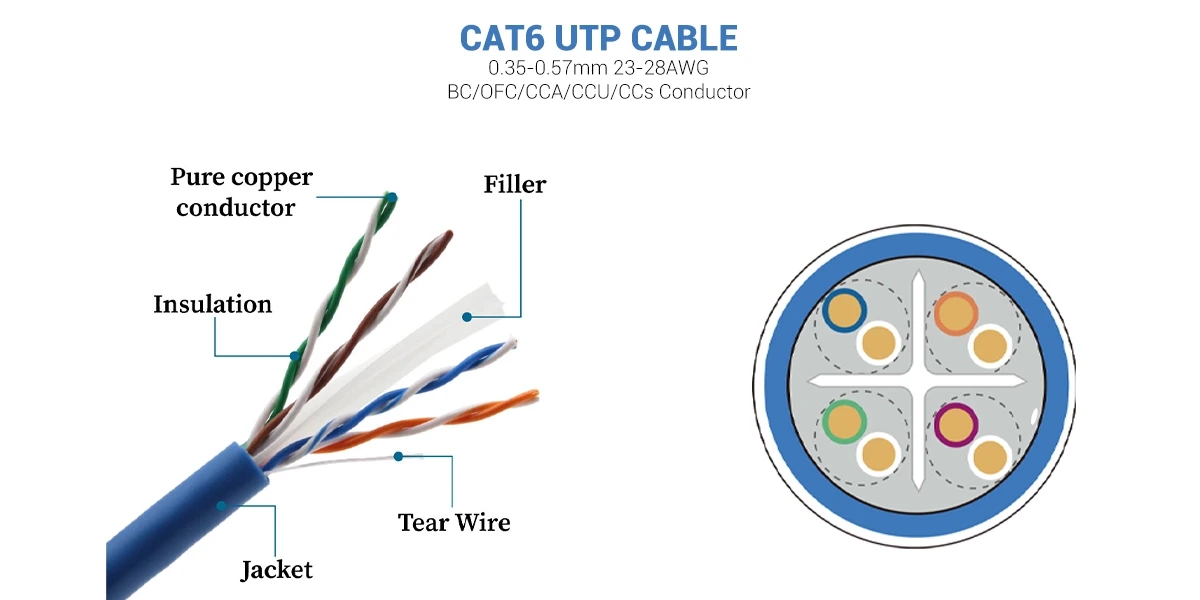

Structure
Description
Application

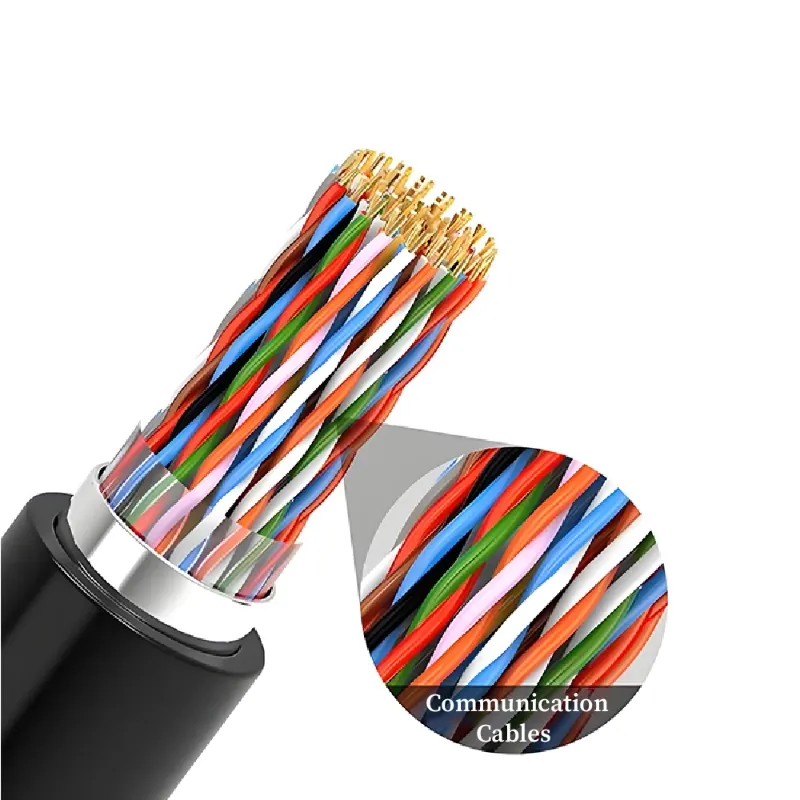

Communication cables transmit data/voice signals with EMI shielding for telecom networks, broadband, and rail systems through twisted-pair or fiber designs.
Main Characteristics
Product Description
| Feature | Specification |
|---|---|
| Inner Conductor | 23AWG BC – Bare Copper |
| Insulation | PE – Polyethylene 0.97 mm (0.038 in) 4 Pairs; Thickness AVG: 0.205mm, MIN: 0.195mm |
| Rip Cord | Yes |
| Jacket | PVC – Polyvinyl Chloride 5.8 mm (0.23 in);AVG: Thickness: 0.6mm |
| Jacket Color | Customized |
| Insulation color : | Blue, White with Blue Stripe/Blue |
| Orange,White with Orange Stripe/Orange | |
| Green, White with Green Stripe/Green | |
| Brown, White with Brown Stripe/Brown | |
| Weight | 10.8kg/box |
|
Frequency [MHz] |
Max.Insertion Loss (Attenuation) |
Min.NEXT [dB] | Min.PSNEXT [dB] |
MinACR [dB] |
Min.PSACR [dB] |
Min.ACRF (ELFEXT) [dB] |
| 1 | 2.0 dB/100m | 74.3 | 72.3 | 72.3 | 70.3 | 67.8 |
| 4 | 3.8 dB/100m | 65.3 | 63.3 | 61.5 | 59.5 | 55.8 |
| 8 | 5.3 dB/100m | 60.8 | 58.8 | 55.5 | 54.5 | 49.7 |
| 10 | 6.0 dB/100m | 59.3 | 57.3 | 53.3 | 50.3 | 47.8 |
| 16 | 7.6 dB/100m | 56.2 | 54.2 | 48.7 | 46.7 | 43.7 |
| 20 | 8.5 dB/100m | 54.8 | 52.8 | 46.3 | 44.3 | 41.8 |
| 25 | 9.5 dB/100m | 53.3 | 51.3 | 43.8 | 41.8 | 39.8 |
| 31.25 | 10.7 dB/100m | 51.9 | 49.9 | 41.4 | 39.4 | 37.9 |
| 62.5 | 15.4 dB/100m | 47.4 | 45.4 | 32 | 30 | 31.9 |
| 100 | 19.8 dB/100m | 44.3 | 42.3 | 24.5 | 22.5 | 27.8 |
| 200 | 29.0 dB/100m | 39.8 | 37.8 | 10.8 | 8.8 | 21.8 |
| 250 | 32.8 dB/100m | 38.3 | 36.3 | 5.5 | 3.5 | 19.8 |
1. Product Overview
Our high-performance communication cables are designed for reliable data transmission in various networking environments. Suitable
for indoor/outdoor use, these cables support Ethernet, VoIP, CCTV, and structured cabling systems.
2. Key Features
✅ Premium Materials
Bare copper conductors (24AWG/26AWG) for optimal signal integrity
LSZH (Low Smoke Zero Halogen) jacket – flame-retardant, non-toxic, and eco-friendly
UV-resistant & waterproof (for outdoor models)
✅ High-Speed Performance
Supports Cat5e (350MHz), Cat6 (550MHz), Cat6a (750MHz), Cat7 (600MHz+)
10Gbps (Cat6a), 40Gbps (Cat7) data transfer speeds
PoE++ (90W) compatible for power-over-Ethernet applications
✅ Durability & Safety
CMR (Riser-rated) / CMP (Plenum-rated) for fire safety compliance
Direct burial & UV-resistant options available
Flexible & abrasion-resistant PVC/LSZH jacket
✅ Wide Compatibility
Works with RJ45 connectors, patch panels, switches, routers
Ideal for data centers, offices, smart buildings, industrial networks
3. Applications
✔ Structured Cabling (horizontal/vertical wiring)
✔ Data Centers & Server Rooms
✔ Outdoor/Industrial Networks (burial, conduit, harsh environments)
✔ VoIP, CCTV, Security Systems
✔ Home & Office Networking
4. Certifications & Standards
UL, CE, RoHS compliant
TIA-568-D, ISO/IEC 11801 certified
Flame-retardant (IEC 60332-1/3)
5. Available Options
Types: UTP, FTP, SFTP (shielded/unshielded)

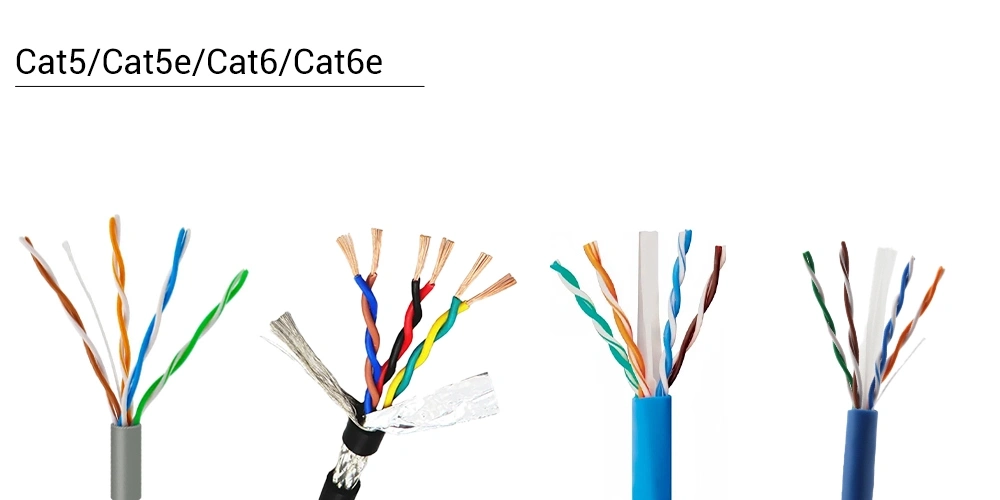

Categories: Cat5e, Cat6, Cat6a, Cat7
Lengths: 305m (1000ft) box, custom lengths available
Colors: Black, blue, gray, green (customizable)
